connected to this equipment, a photovoltaic panel will charge the DC link capacitors.
D. Energy stored in this equipment’s DC link capacitors presents a risk of electric
shock. Even after the unit is disconnected from the grid and photovoltaic panels,
high voltages may still exist inside the PV-Inverter. Do not remove the casing until at
least 10 minutes after disconnecting all power sources.
E. This unit is designed to feed power to the public power grid (utility) only. Do not
connect this unit to an AC source or generator. Connecting Inverter to external
devices could result in serious damage to your equipment.
F. Carefully remove the unit from its packaging and inspect for external damage. If
you find any imperfections, please contact your local dealer.
G. Although designed to meet all safety requirements, some parts and surfaces of
Inverter are still hot during operation. To reduce the risk of injury, do not touch the
heat sink at the back of the PV-Inverter or nearby surfaces while Inverter is operating.
2) Fixed on the wall
A. Select a wall or solid vertical surface that can support the PV-Inverter.
B. Inverter requires adequate cooling space. Allow at least 20cm space above and
below the inverter.

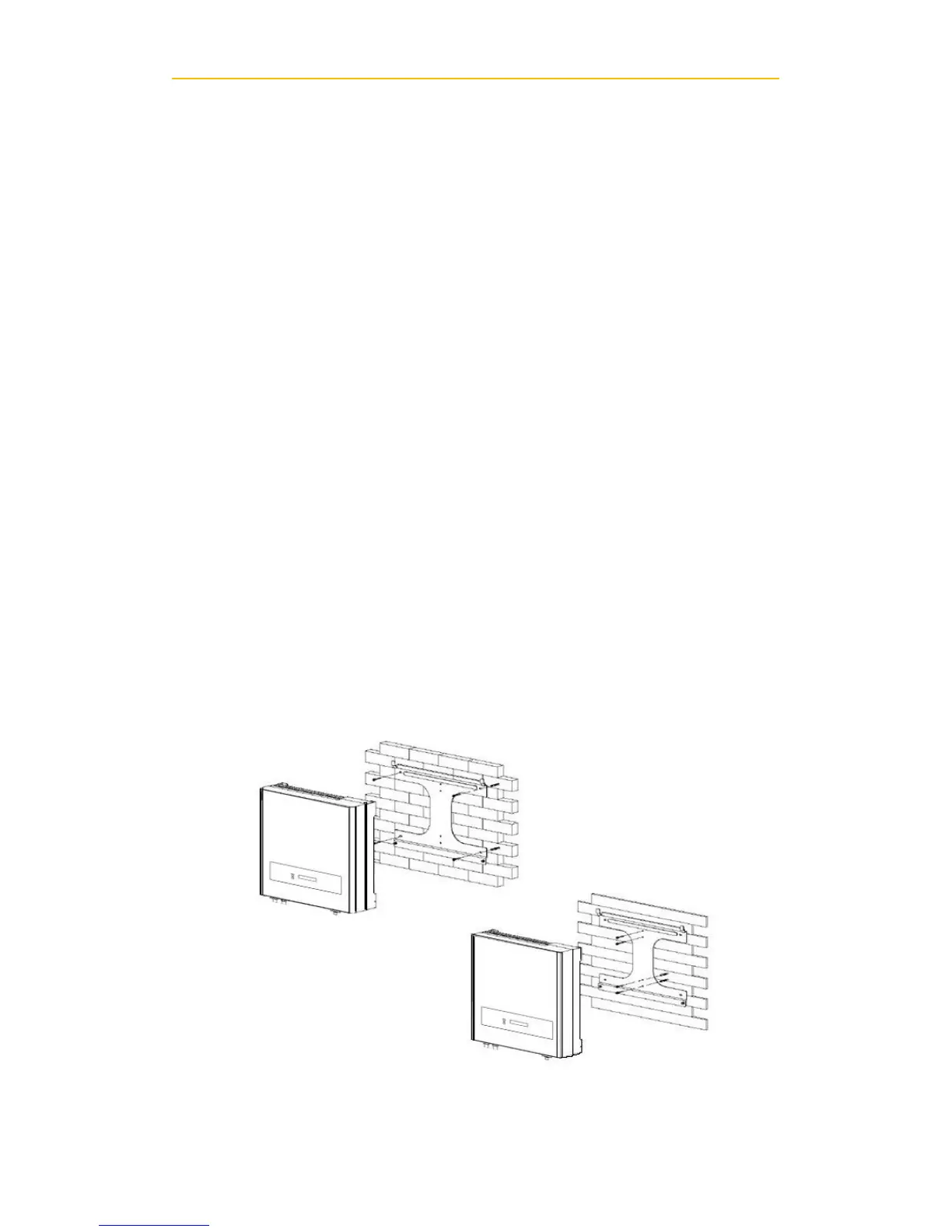

C. Using the mounting frame as a template, drill 4 holes as illustrated in the
following figures.
