8. TIMER0
8.1 TIMER0 General
TIMER0 is composed of the following functions:
▪ 8-bit timer/counter register (TMR0);
▪ 8-bit pre-scaler (shared with watchdog timer);
▪ Programmable internal or external clock source;
▪ Programmable external clock edge selection;
▪ overflow interrupt.
0
1
0
1
0
1
0
1
T0CKI
Pin
T0SE
T0CS
PSA
PSA
PSA
WDT
timeout
PS<2:0>
Fsys/4
WDTE
SWDTEN
8
Watchd
og timer
32KHz
INTOSC
8-bit
prescaler
Synchron
ize 2 Tcy
TMR0
Data Bus
Set the T0IF
flag bit to 1
when overflow
8

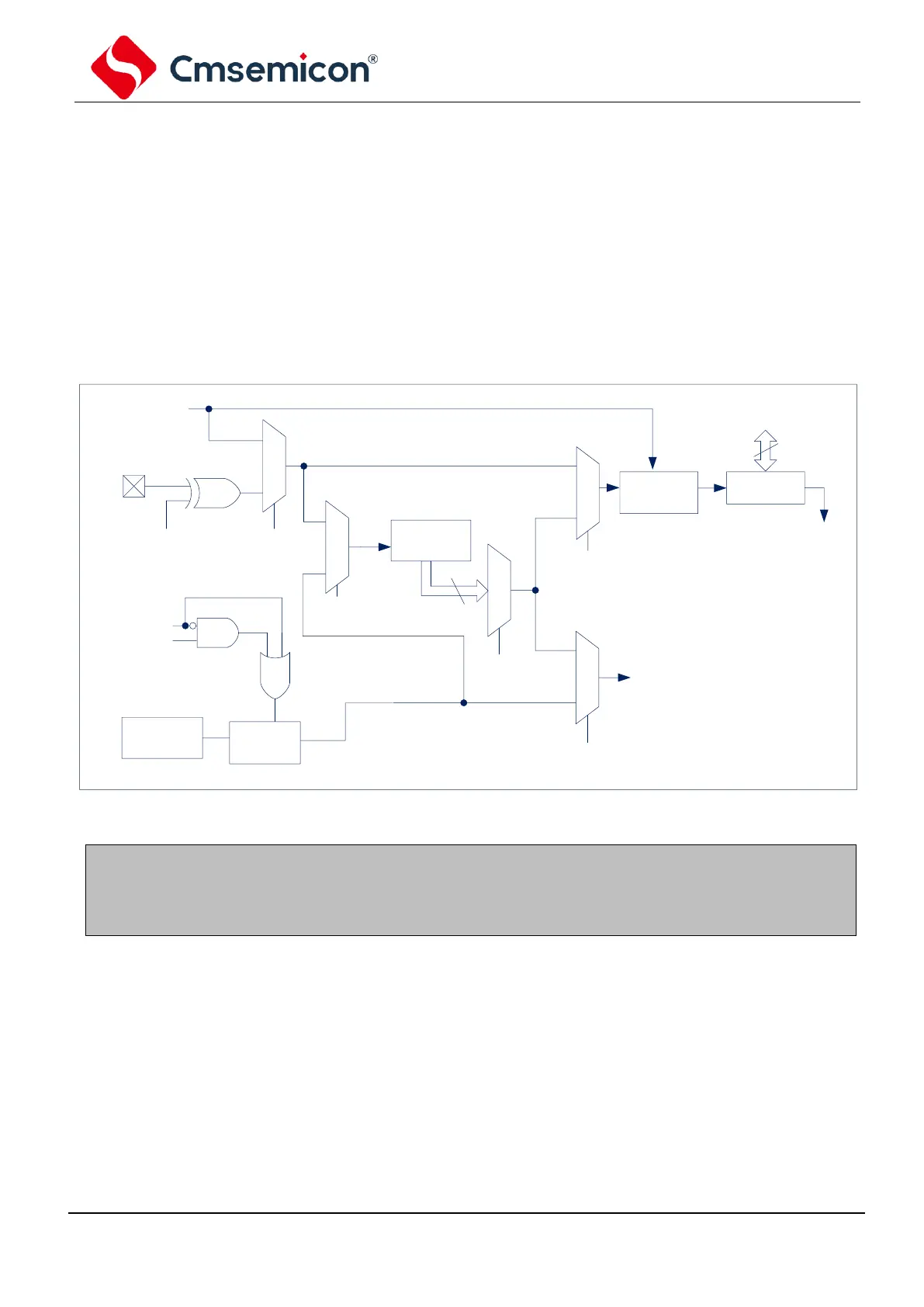

Fig 8-1: TIMER0/WDT mod structure
Note:
1) T0SE, T0CS, PSA, PS<2:0> are the bits in OPTION_REG register.
2) SWDTEN is a bit in the OSCCON register.
3) WDTE bit is in CONFIG.
