Mach3 USB Motion Card STB4100 V2.1
below:
2.5 Setup the Output signals:
There are 4 general-purpose (open-drain) output channels, The channels number is from O1 to

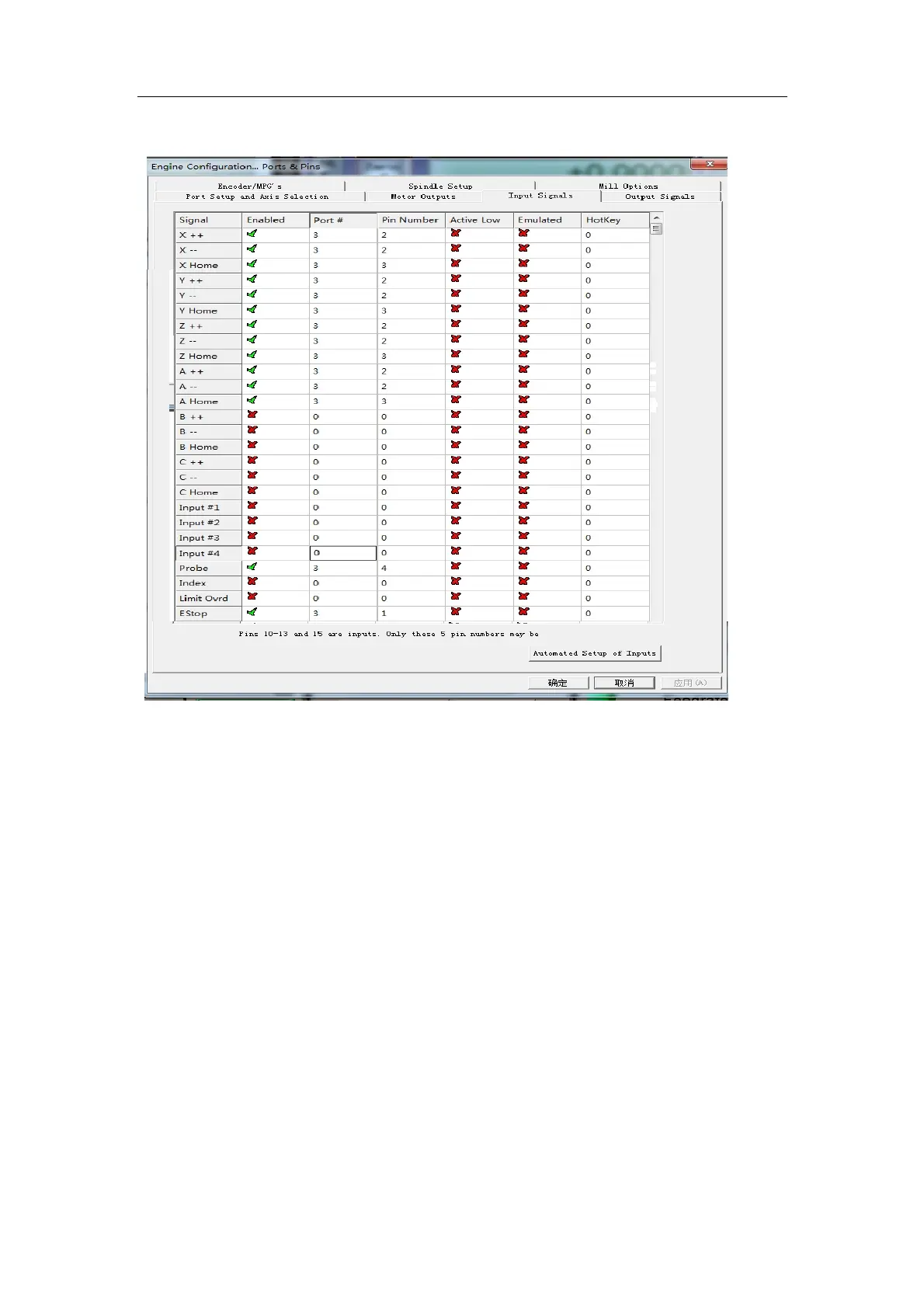

O4, mach3 setup as shown below:
