CNC STB4100 User Manual

Mach3 USB Motion Card STB4100 V2.1
M3 code control output 1 output, M4 code control output port 2 output,M5 shut down output 1
and output2.
M7 code control output 3 output, M8 code control output port 4 output,M9 shut down output 1
and output2.
2.6 Spindle speed control (0-10V) Setup:
There is 0-10v signal output on the control card, Can be used to connect the Inverter to control
the spindle speed.
According to the actual parameters of the inverter and the spindle, set the maximum spindle

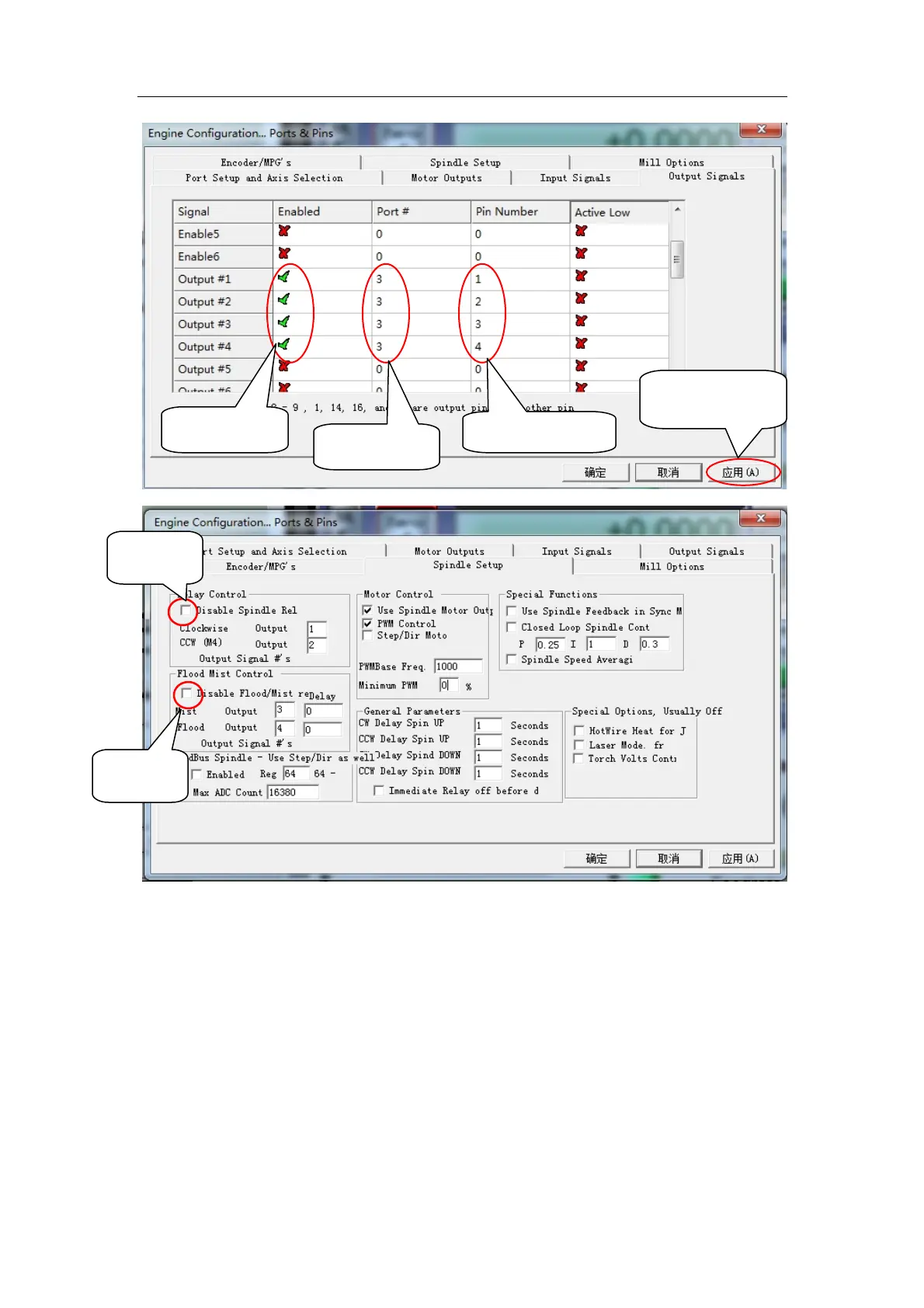

Pick ticks”√ ”
Enter “3”
Pin number 1-4
Don’t forget click
“apply”
Remove
”
√
”
Remove
”
√
”
