9. Safety notes
! It is important to install and use optical isolation between the environment and the
computer, therefor it is recommended to connect the UC100 to the motor drives and
external sensors on the machine via signal isolators, e.g. via an optically isolated breakout
board. A good example for this is our HDBB and HDBB2 breakout boards, the datasheet
of these devices can be found and downloaded on our website.
! Use the UC100 motion controller product only if you understood it's working and also
understood the risk of working with machine tools.
! It is important to comply the safety standards like installing the external E-stop button,
limit switches, charge pump safety circuit.
! The UC100 motion controller is built into an enclosed DSUB-25 shell, but this enclosure
is not ment to protect the device from falling chips or liquid, protect the device from taint
damage.
! Protect the device from direct intensive sunshine beams and from extreme temperature
levels and from extra high humidity.
! In electrically noisy environment it is adviced to place and install the UC100 controller
into the same electric cabinet where the motor drives are installed to.
! Keep the UC100 controller away from high Voltage parts and cables of the installation.

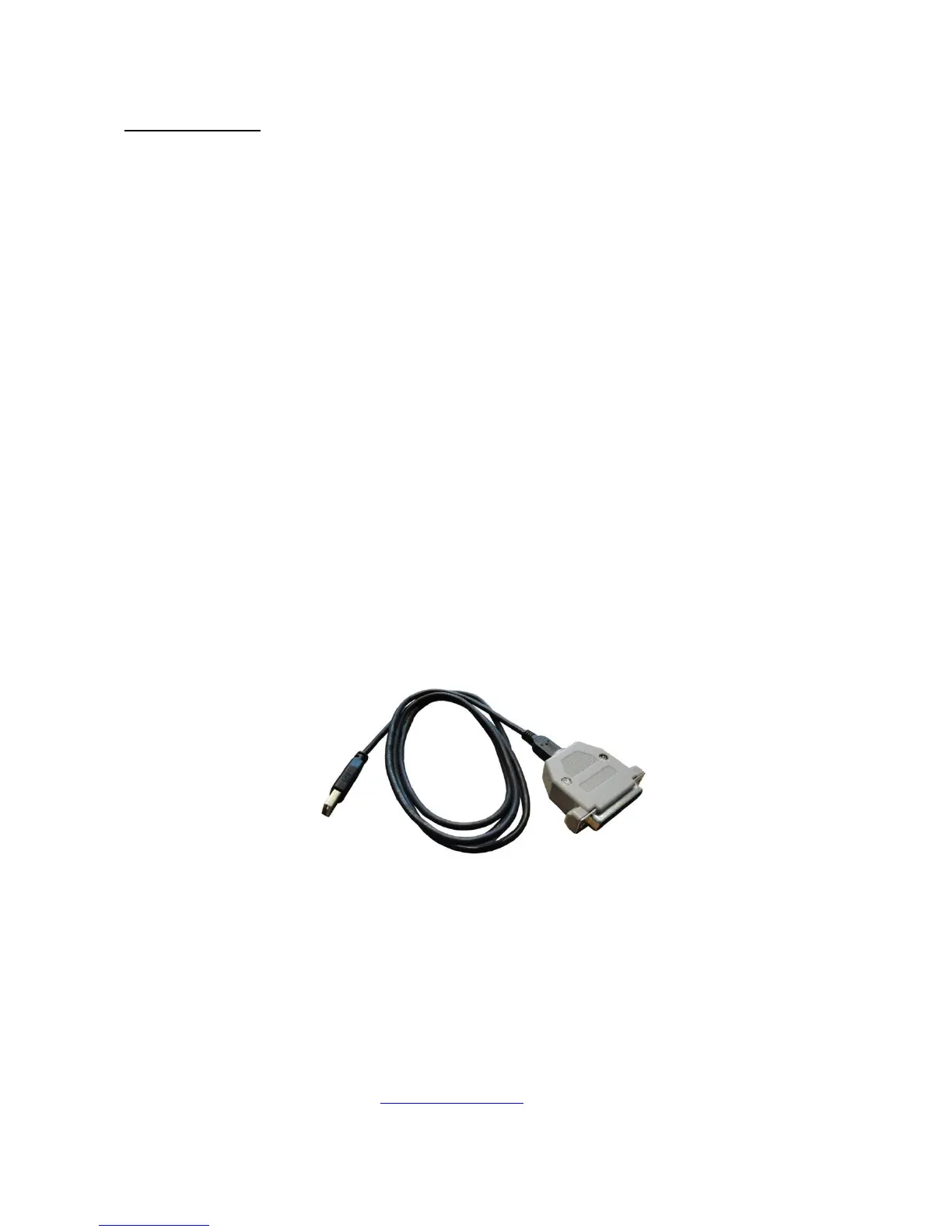

The actual look of the UC100 motion controller product.
