CNC4PC C32 - 8 Pinout

C32 (Rev. 5) User Manual
___________________________________________________________________________
User’s Manual Page 17

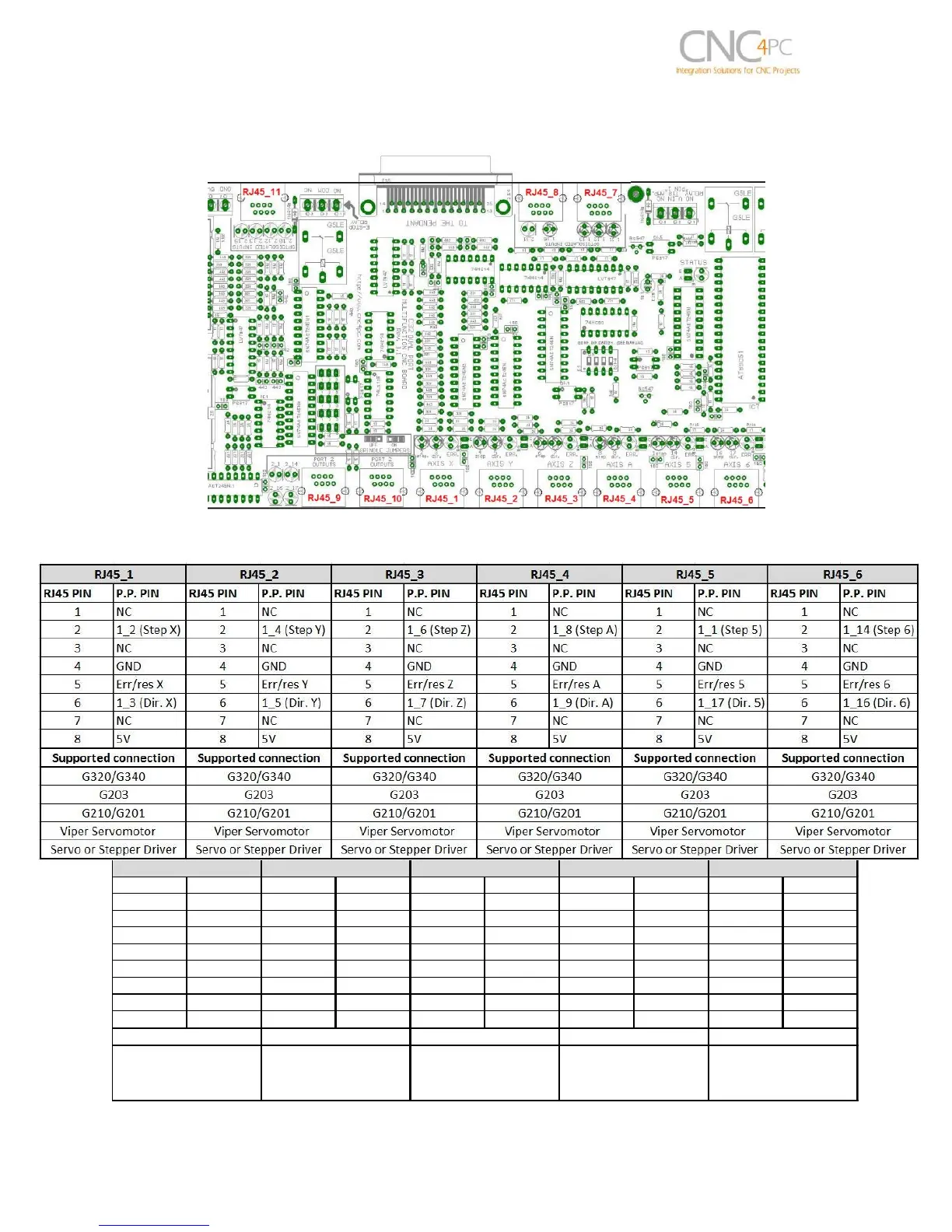

8.0 PINOUT
Fig. 9RJ45 Distribution
RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN
1 GND_EXT 1 GND_EXT 1 GND 1 GND 1 GND_EXT
2 1_13 2 NC 2 2_17 2 NC 2 2_15
3 1_12 3 E-STOP 3 2_16 3 NC 3 2_13
4 1_11 4 2_11 4 2_1 4 2_16 4 2_12
5 NC 5 1_15 5 2_14 5 2_17 5 2_10
6 NC 6 NC 6 NC 6 NC 6 NC
7 5V_EXT 7 5V_EXT 7 5V 7 5V 7 5V_EXT
8 2_16 8 NC 8 NC 8 NC 8 NC
C16, A32, C45, A61
C3, C48
C15, C8, C9, C55, C56
General Porpuse
Isolated inputs
C19, C15, C5, C8, C9, C47,
C41, C6,C36, C54, C55,
C56
Supported connection
Supported connection
Supported connection
Supported connection
Supported connection
RJ45_7
RJ45_8
RJ45_9
RJ45_10
RJ45_11
