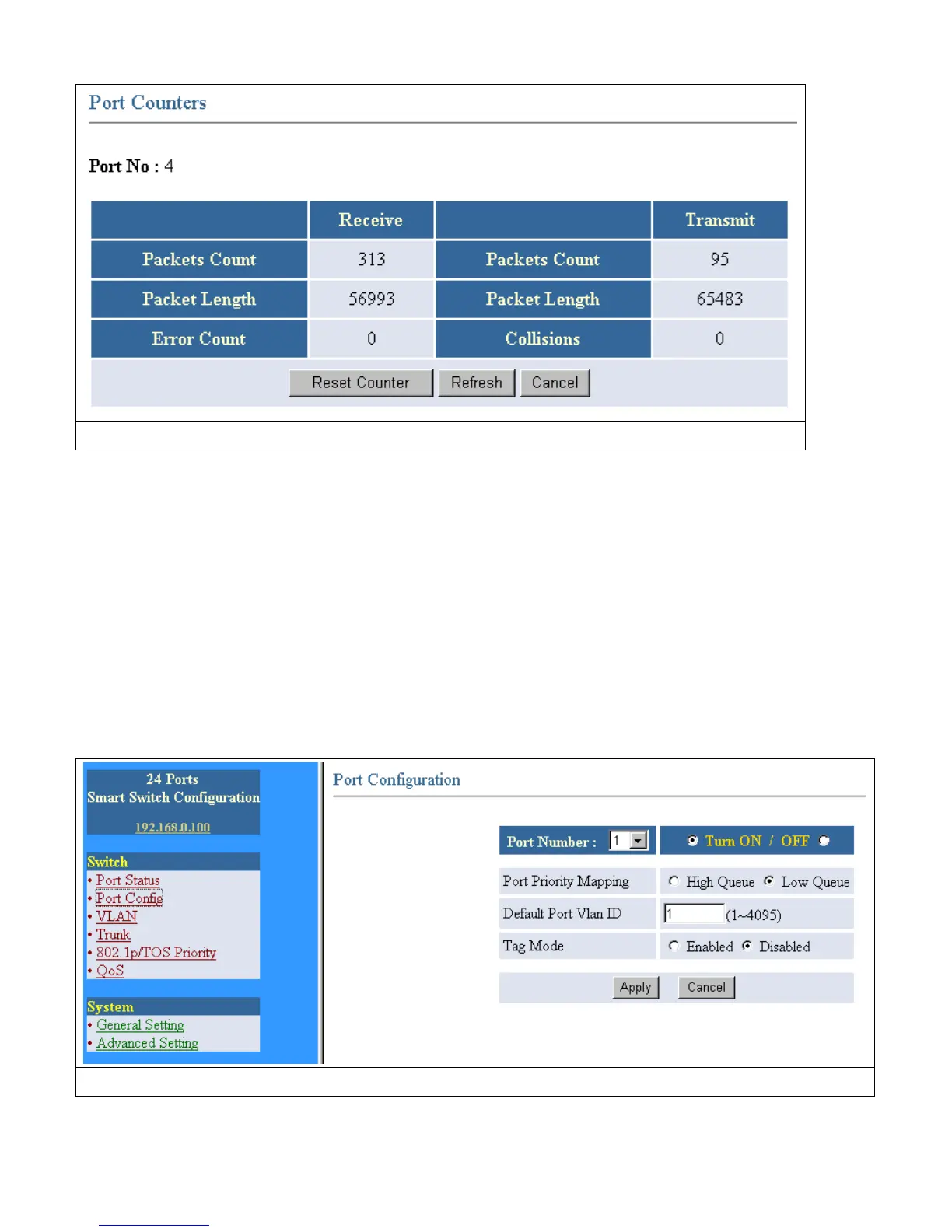

Fig 5-7
3. You can click the “Reset Counters” button (Fig 5-7), to reset the counter number.
5.2.2 Port Config
1. Select Port number to be configured. (Fig 5-8)
2. To enable this port, select “Turn on”, otherwise select “Turn off”.
3. To enable Port-base Priority, select “Enable”, otherwise select “Disable”.
4. To set the Port Priority Mapping to “High Queue”, select “High Queue”, otherwise select “Low Queue”.
5. Change the default VLAN ID, it is available only if the tag based VLAN is enable.
6. Enable the “Tag” mode for this port. The transmitted packets from this port will always contain a tag header.
7. Click “Apply” to save the configuration changes.
Fig 5-8
19
