5.2.3 VLAN

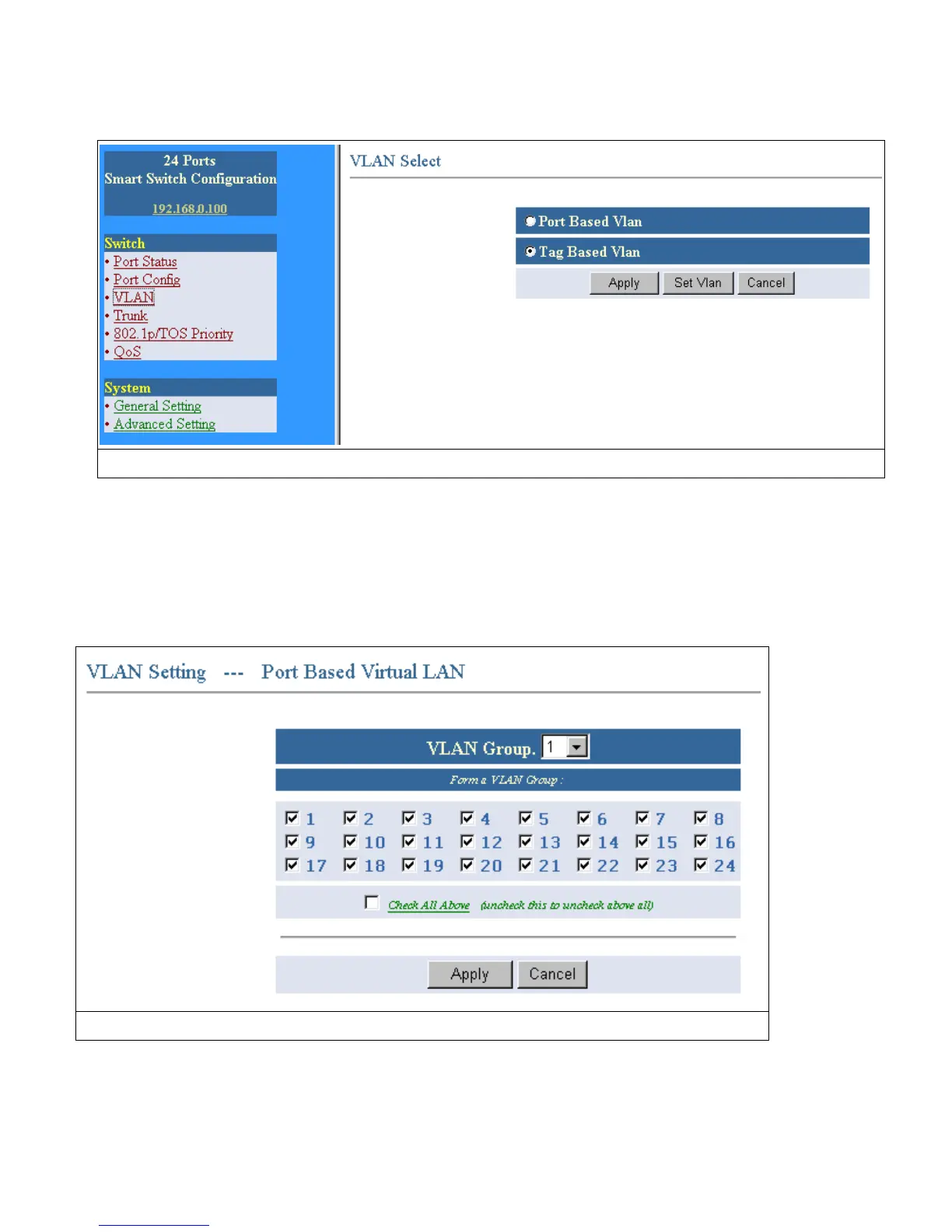

1. Select port-based VLAN or tag-based VLAN. (Fig 5-9)
Fig 5-9
2. Click “Apply” to enable and save selection.
3. Clink “Set Vlan” to edit the VLAN configuration.
5.2.3.1 Port Based VLAN
1. Select VLAN group number. It supports up to 24 VLAN Groups. (Fig 5-10).
2. Select VLAN Group Members (ports that are members of this VLAN).
3. Click “Apply” to save the configuration.
Fig 5-10
5.2.3.2 Tag Based VLAN
1. Select VLAN Group number. It supports up to 24 VLAN Groups. (Fig 5-11).
2. Enter the VID, it supports the range of 1 to 31.
