5.2.3 VLAN

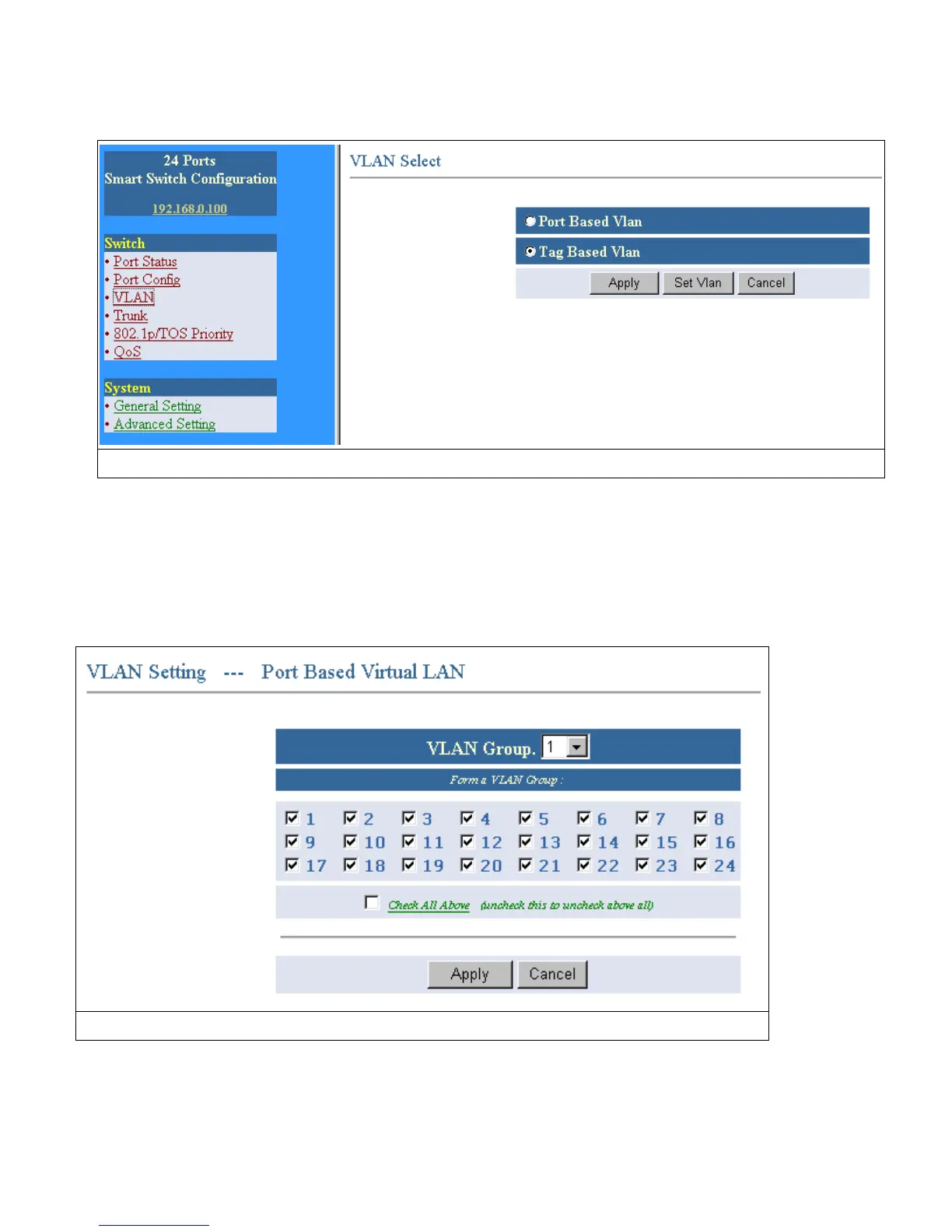

1. Select port-based VLAN or tag-based VLAN. (Fig 5-9)
Fig 5-9
2. Click on the “Apply” to enable and save selection.
3. Clink on the “Set Vlan” to edit the VLAN configuration.
5.2.3.1 Port Based VLAN
1. Select VLAN group number. It supports up to 24 VLAN Groups. (Fig 5-10).
2. Select VLAN Group Members (ports that are members of this VLAN).
3. Click on the “Apply” to save the configuration.
Fig 5-10
5.2.3.2 Tag Based VLAN
1. Select VLAN Group number. It supports up to 24 VLAN Groups. (Fig 5-11).
2. Enter the VID, it supports the range of 1 to 31.
