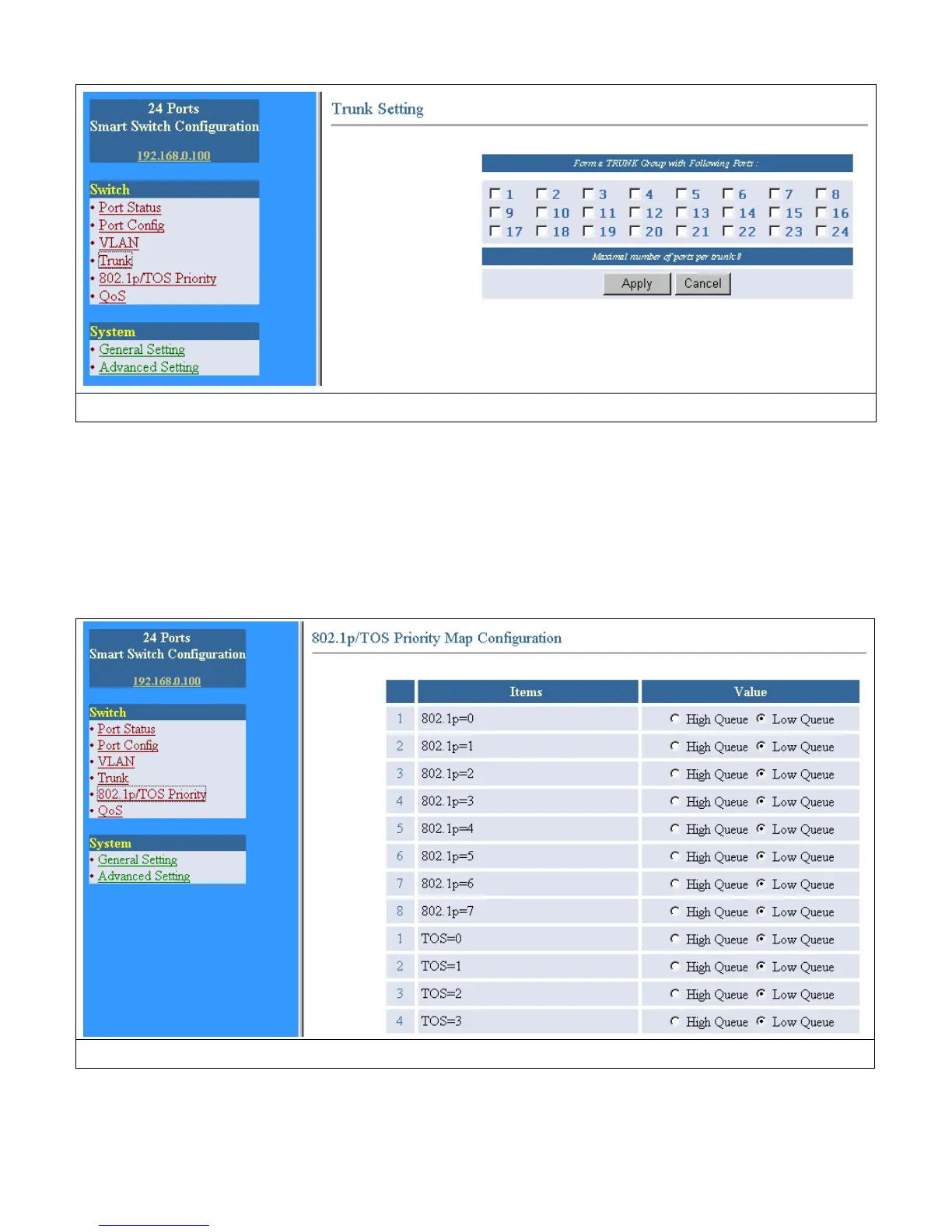

Fig 5-12
5.2.5 802.1p/TOS Priority
1. Enter 802.1p/TOS Priority menu
2. Select the priority value for every 802.1p and TOS. This switch supports two level of priority.
3. Click on the “Apply” to save the configuration.
Fig 5-13
5.2.6 QoS
1. Select the Priority Ratio. (Low Queues : High Queue) (Fig 5-14)
22
