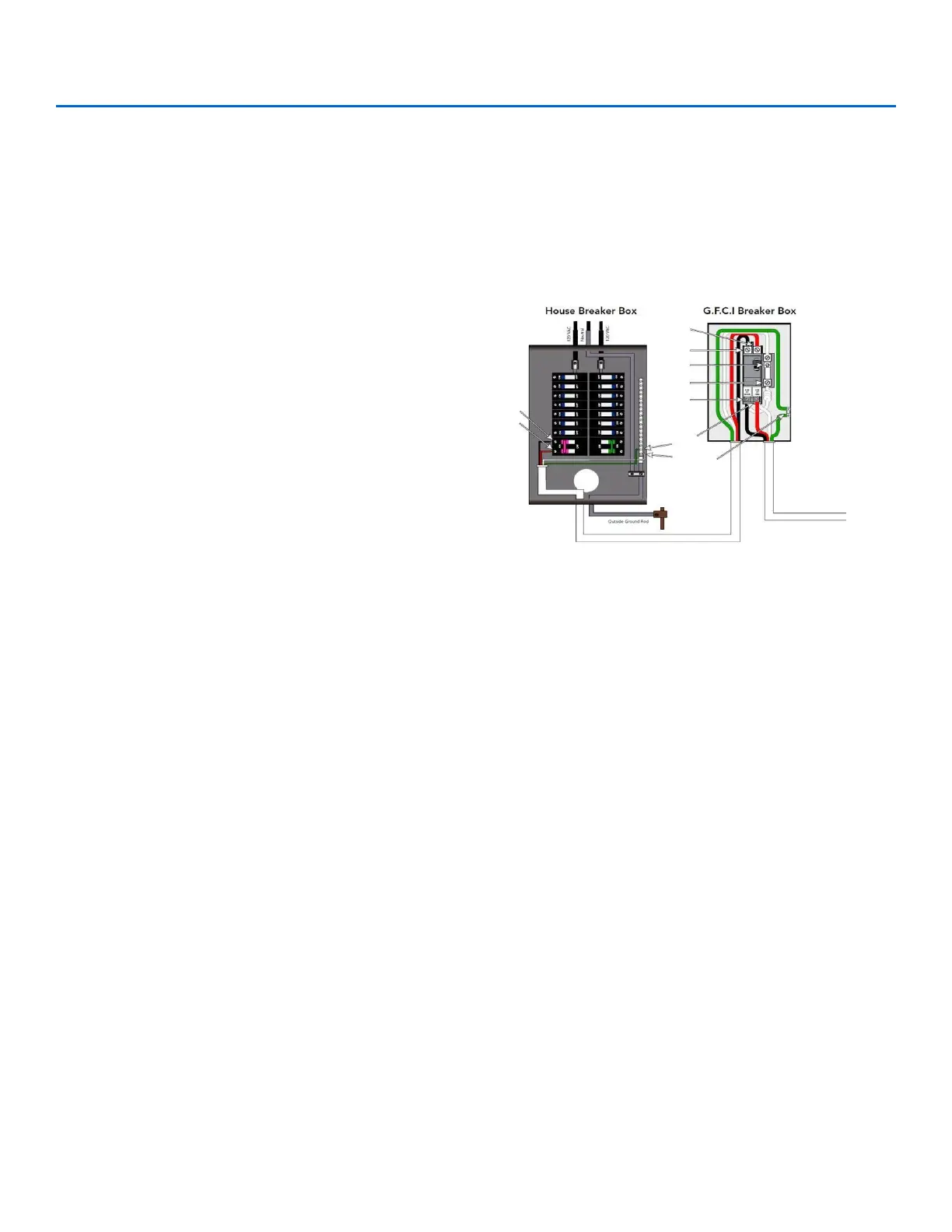

240VA: Depending on the model of spa, it will require either a 40
Amp, 50 Amp, or 60 Amp dedicated circuit breaker, GFCI, with the
proper wire size based on the length of the run. The electrical
circuit must be installed by a certified electrician and approved by
a local building or electrical inspector.
Use minimum 6AWG copper conductors only. Torque field
connections between 21 and 23 lbs. Readily accessible
disconnecting means to be provided at time of installation.
Permanently connected power supply.
Connect only to a circuit protected by a Class A Ground Fault
Circuit Interrupter (GFCI) or Residual Current Device (RCD)
mounted at least 5’ (1.52M) from the inside walls of the spa and in
line of sight from the equipment compartment.
CSA ENCLOSURE: TYPE 2
Refer to Wiring Diagram inside the cover of the control enclosure.
Refer to Installation and Safety Instructions provided by the spa
manufacturer.
WARNING! GFCI or RCD Protection.
The Owner should test and reset the GFCI or RCD on a regular
basis to verify its function.
WARNING! Shock Hazard! No User Serviceable Parts.
Do not attempt service of this control system. Contact your dealer
or service organization for assistance. Follow all owner’s manual
power connection instructions. Installation must be performed by a
licensed electrician and all grounding connections must be
properly installed. Disconnect the electric power before servicing.
Keep the access door closed.
CSA COMPLIANCE
CAUTION:
• Test the ground fault circuit interrupter before each use of
the spa.
• Read the instruction manual.
• Adequate drainage must be provided if the equipment is to
be installed in a pit.
FOR USE ONLY WITHIN ENCLOSURE RATED CSA
ENCLOSURE 3. CONNECT ONLY TO A CIRCUIT
PROTECTED BY A CLASS A GROUND FAULT CIRCUIT
INTERRUPTER OR RESIDUAL CURRENT DEVICE. TO
ENSURE CONTINUED PROTECTION AGAINST SHOCK
HAZARD, USE ONLY IDENTICAL REPLACEMENT PARTS
WHEN SERVICING. INSTALL A SUITABLY RATED SUCTION
GUARD TO MATCH THE MAXIMUM FLOW RATE MARKED.
WARNING
• Water temperatures of more than 38°C may be injurious
to your health.
• Disconnect the electrical power before servicing.
CAUTION:
When using this electrical equipment, basic safety precautions
should always be followed.
