Coban GPS304 - Specs; Operating Instructions; Terminal Installation

6
4
Remote
controller
Optional, type B
5. Specs
Content
Specs
Dim.
7.5×5.0×2.4cm
Weight
75g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accuracy
5m
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Car charger
12V~24V
battery
Chargeable 3.7V 1000mAh Li-ion battery
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +70°C
Humidity
5%--95% non-condensing
6. Operating Instructions
6.1Terminal Installation
6.1.1 Please ask the qualified engineers to install it.
6.1.2 Do not install it in an environment which is over GSM performance index.
6.1.3 Pay attention to make installation location preventing water and dust.
6.1.4 Find the 6 PIN harness and insert it into the corresponding holes of the products, and
connect the wires with the original car circuit showing below:

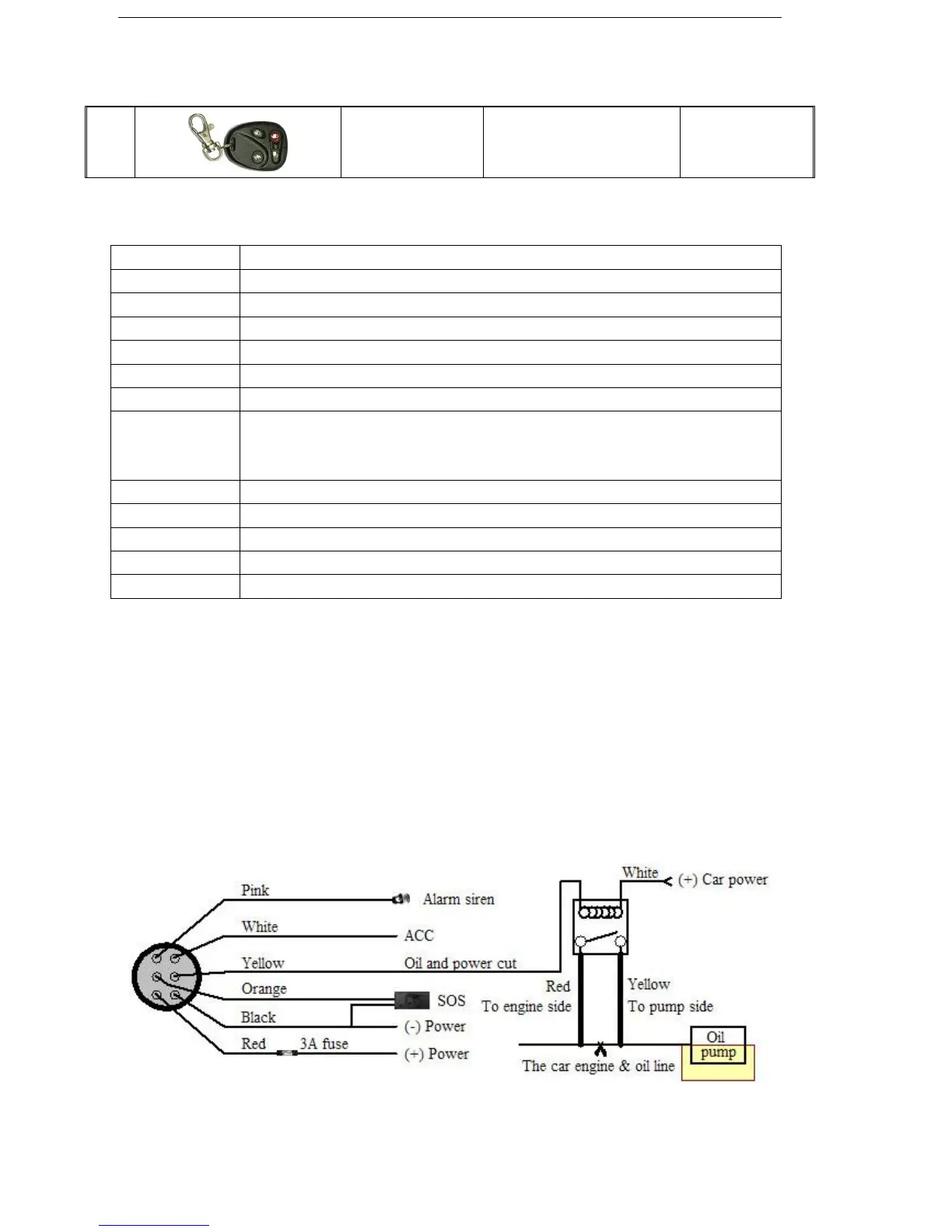

Wiring Diagram
