INSTALLATION MANUAL 4600 CAN/PLIP
5
4. - HOW TO PREPARE THE PIN CODE CARD.

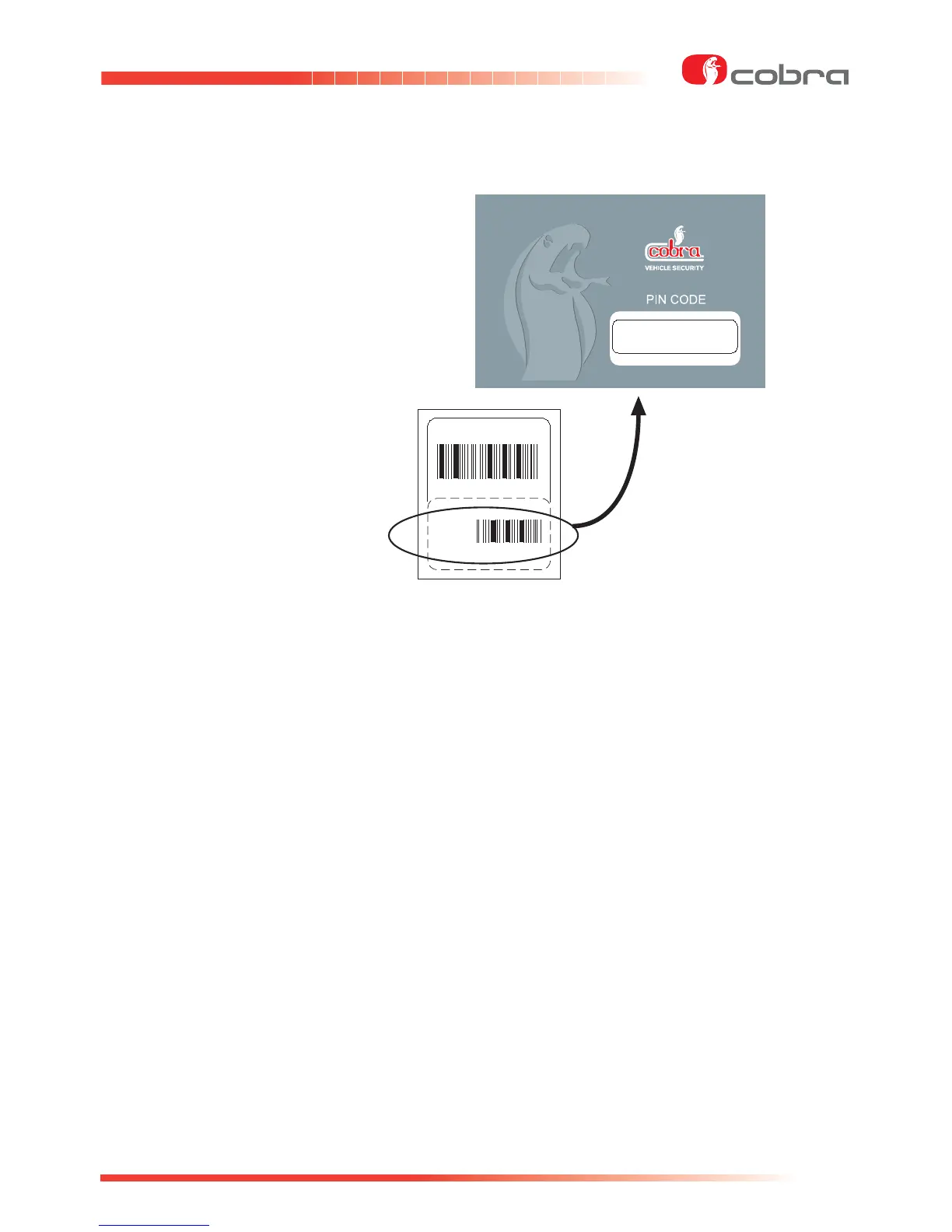

Remove the separate PIN Code label from the back of the system main unit and place onto the supplied PIN Code Card.
www.cobra-at.com
PLACE HERE THE PIN
CODE LABEL
PERSONAL IDENTIFICATION
CODE
4C4415A2A
S/N 0003 050524
PIN
CODE
1122
5. - INSTALLATION PROCEDURE.
System’s component positioning.
As much as the components of the system will be placed in secure and diffi cult to access positions as higher the
protection level will be.
WARNING: each element must be positioned so that it does not interfere with moving parts.
Alarm unit.
It must be fi tted inside the vehicle far away from heating sources, paying attention to keep the main connector oriented
down.
Siren.
It can be installed in the engine bay as inside the vehicle far away from heating sources paying attention to keep the
main connector oriented down.
Ultrasonic volumetric sensor.
The ultrasonic transducers must be fi xed to the top of the A pillars pointed towards the rear window or to the top of the
C pillars pointed towards the windscreen. Their orientation should be as much as possible parallel to the side windows.
Emergency LED/control button
It must be fi tted on the dashboard with its LED in a in sight position. The pushbutton should be easily accessible by
the driver.
Bonnet pushbutton.
The installation of the supplied pushbutton is required if the vehicle is not yet equipped with the original one. The specifi c
vehicle CAN/PLIP installation sheet supplies this info.
