13

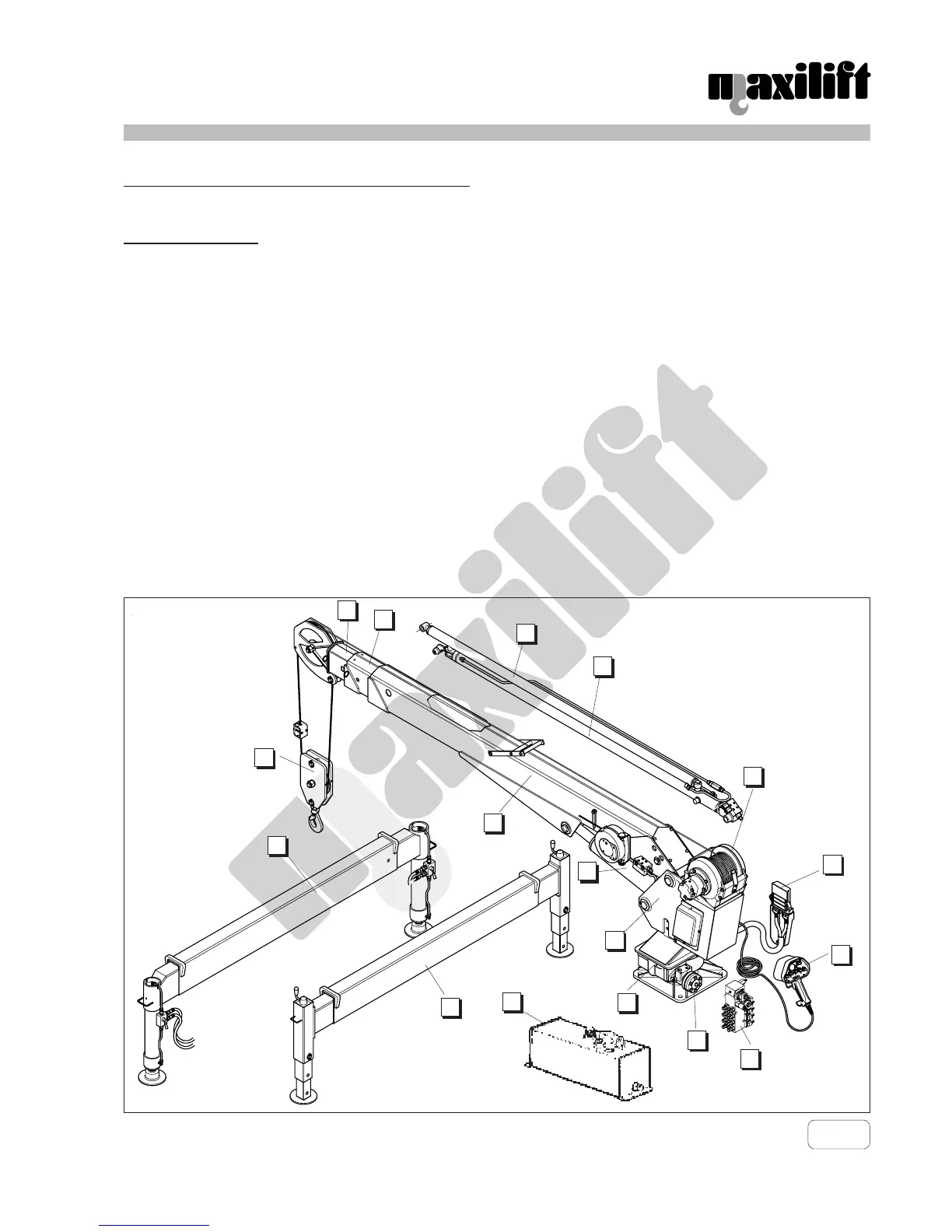

6 DESCRIPTION OF THE CRANE
6.1 MODEL 5500 H
Item Description
1 Slewing system
2 Slewing motor
3 Column
4 Main boom
5 Boom hoist cylinder
6 First hydraulic boom section
7 Second hydraulic boom section
8 First telescope cylinder
9 Second telescope cylinder
10 Hydraulic unit
11 Electronic Power unit
12 Cable or radio remote control box
13 Winch
14 Travelling block
15 Oil tank - (only for H version ) OPTIONAL
16 Outrigger beam - (mechanical jack) OPTIONAL
17 Outrigger beam - (hydraulic jack) OPTIONAL
16
17
3
15
2
1
4
5
6
7
8
9
10
11
13
14
Pict. 5
12
