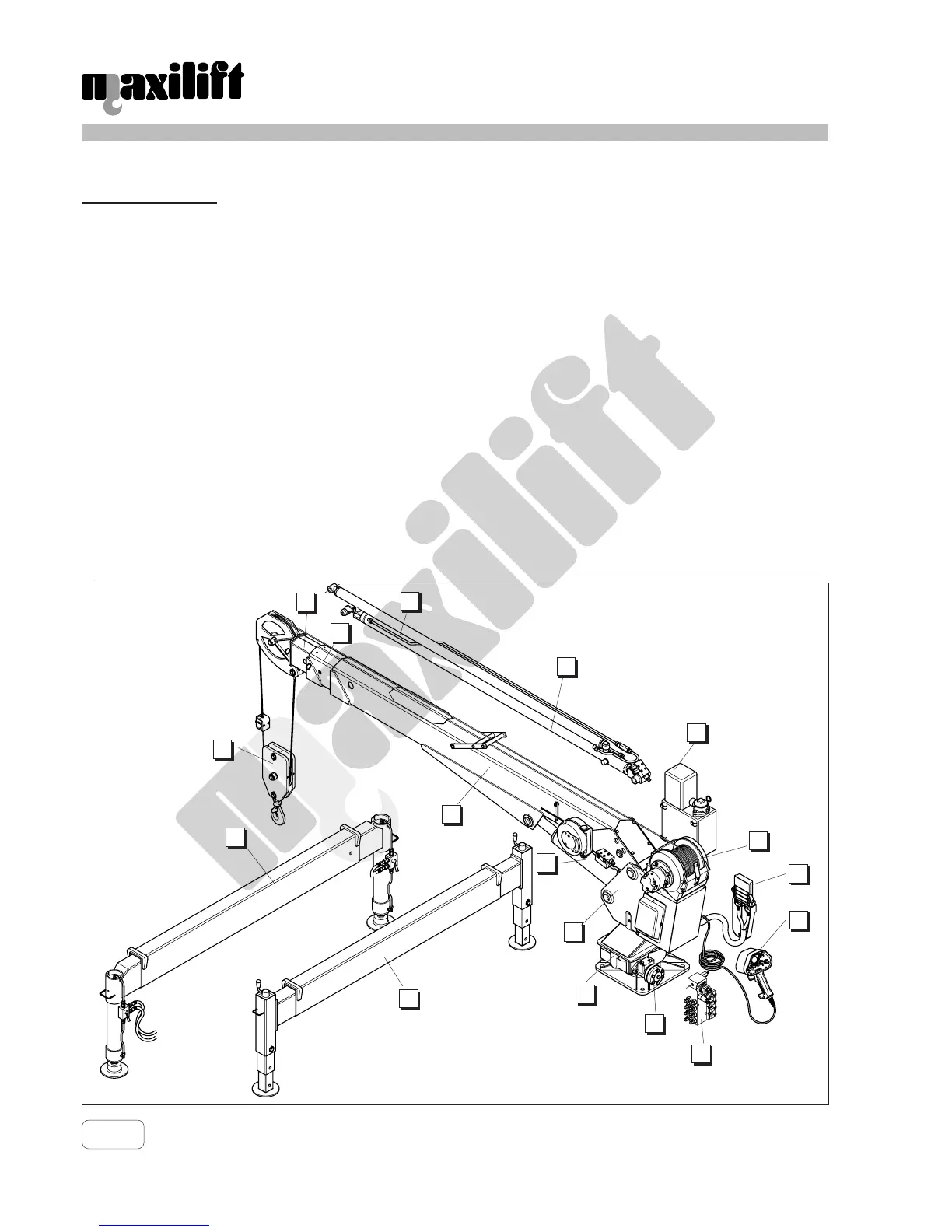

6.2 Model 5500 E 12/24
Item Description
1 Slewing system
2 Slewing motor
3 Column
4 Main boom
5 Boom hoist cylinder
6 First hydraulic boom section
7 Second hydraulic boom section
8 First telescope cylinder
9 Second telescope cylinder
10 Hydraulic unit
11 Electronic Power unit
12 Cable or radio remote control box
13 Winch
14 Travelling block
15 Elettro-hydraulic power pack
16 Outrigger beam (mechanical jack) OPTIONAL
17 Outrigger beam (hydraulic jack) OPTIONAL
16
17
3
2
1
4
5
7
10
11
14
Pict. 6
8
9
6
13
15
12
