11.2 HYDRAULIC DIAGRAMS

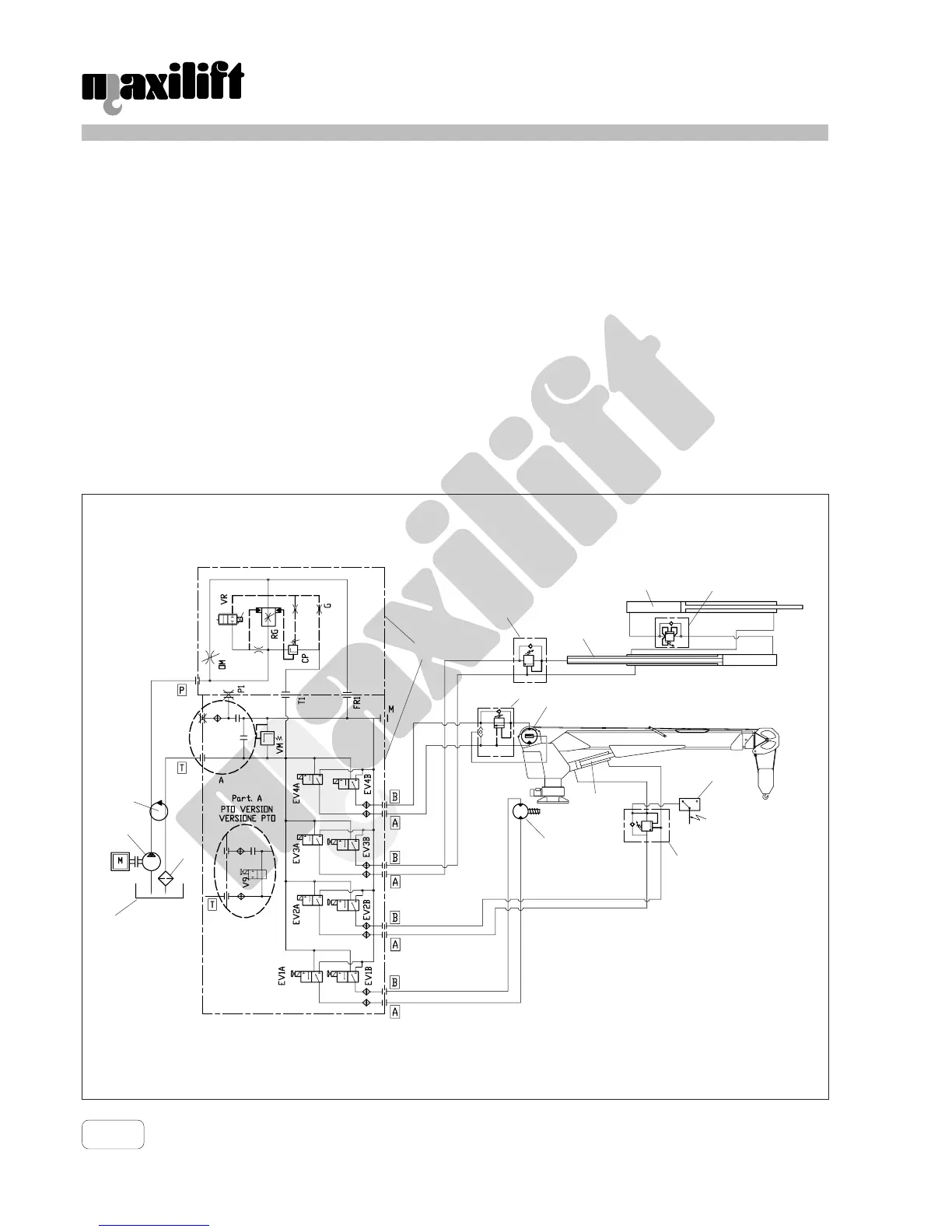

11.2.1 Hydraulic diagram

mono-function proportional

1 Pump

2 Electrohydraulic unit

3 Rotation motor

4 Lifting cylinder

5 Overcenter valve

6 Pressure switch

7 1st. extension cylinder

8 2st. extension cylinder

9 Overcenter valve

10 Sequence valve

11 Oil filter

12 Oil tank

13 Swivel hydraulic coupling (only PTO version)

14 Winch motor

15 Overcenter valve

Pict. 27
