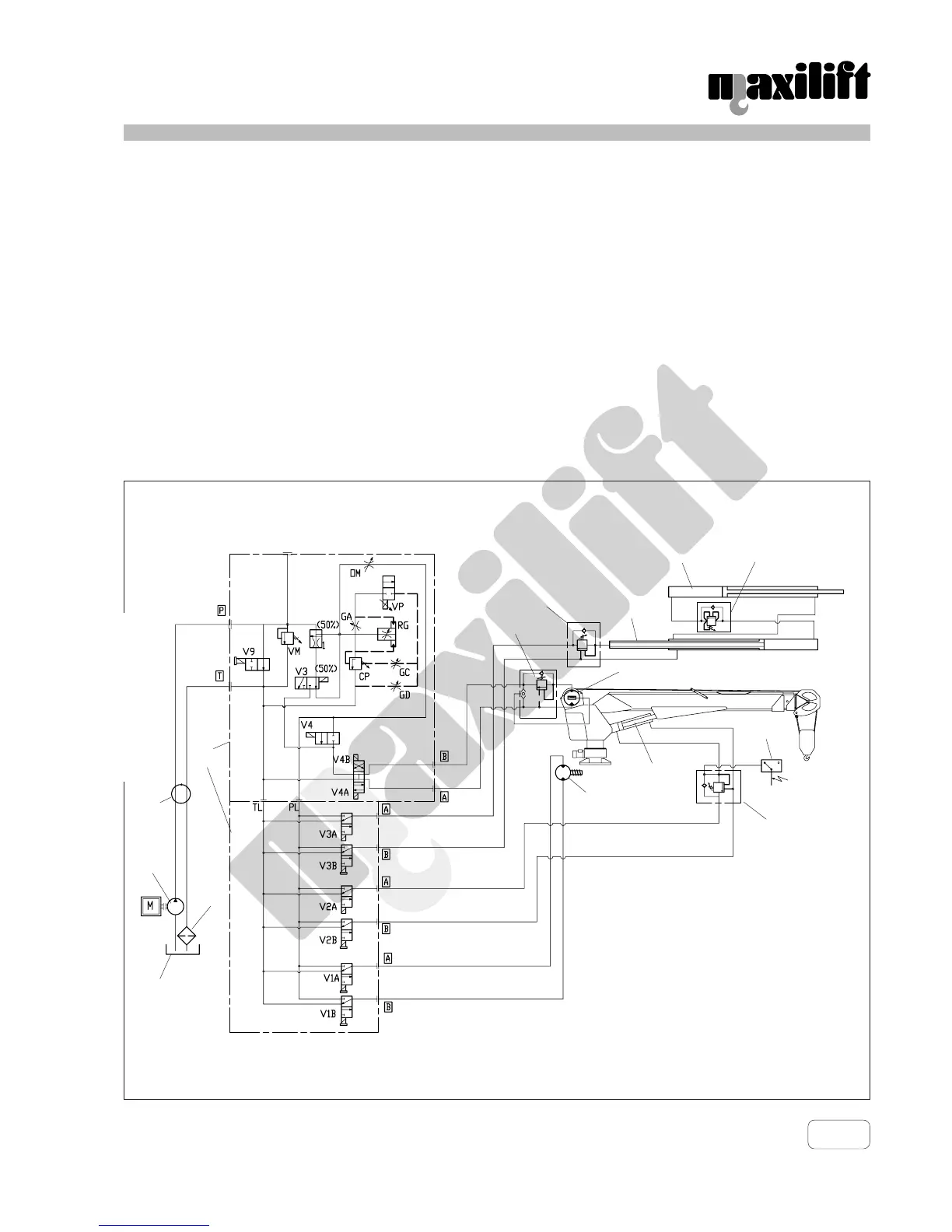

11.2.2 Hydraulic diagram Dual-mode proportional
1 Pump
2 Electrohydraulic unit
3 Rotation motor
4 Lifting cylinder
5 Overcenter valve
6 Pressure switch
7 1st. extension cylinder
8 2st. extension cylinder
9 Overcenter valve
10 Sequence valve
11 Oil filter
12 Oil tank
13 Swivel hydraulic coupling (only PTO version)
14 Winch motor
15 Overcenter valve
Pict. 28
13
14
12
11
10
9
8
7
6
5
4
3
2
1
15
