8525B/8528 Technical Service Manual General Information 1-19
Publication No: 15-02036 Issue 6
VOX Voice Operated Switch
VSWR Voltage Standing Wave Ratio
VU Volume Unit
WRT With Respect To
WT Weight
XTN Extension
XTND Extend
λ Wavelength
+ve Positive
-ve Negative
∅ Phase, Diameter in mm
Note: EMF is the source voltage behind the output resistance (Rs) and is
independent of the signal generator loading. Many signal generators
are calibrated in PD (across the load) assuming a total load
resistance equal to the generator source resistance; for these, the
EMF is twice the attenuator scale reading.

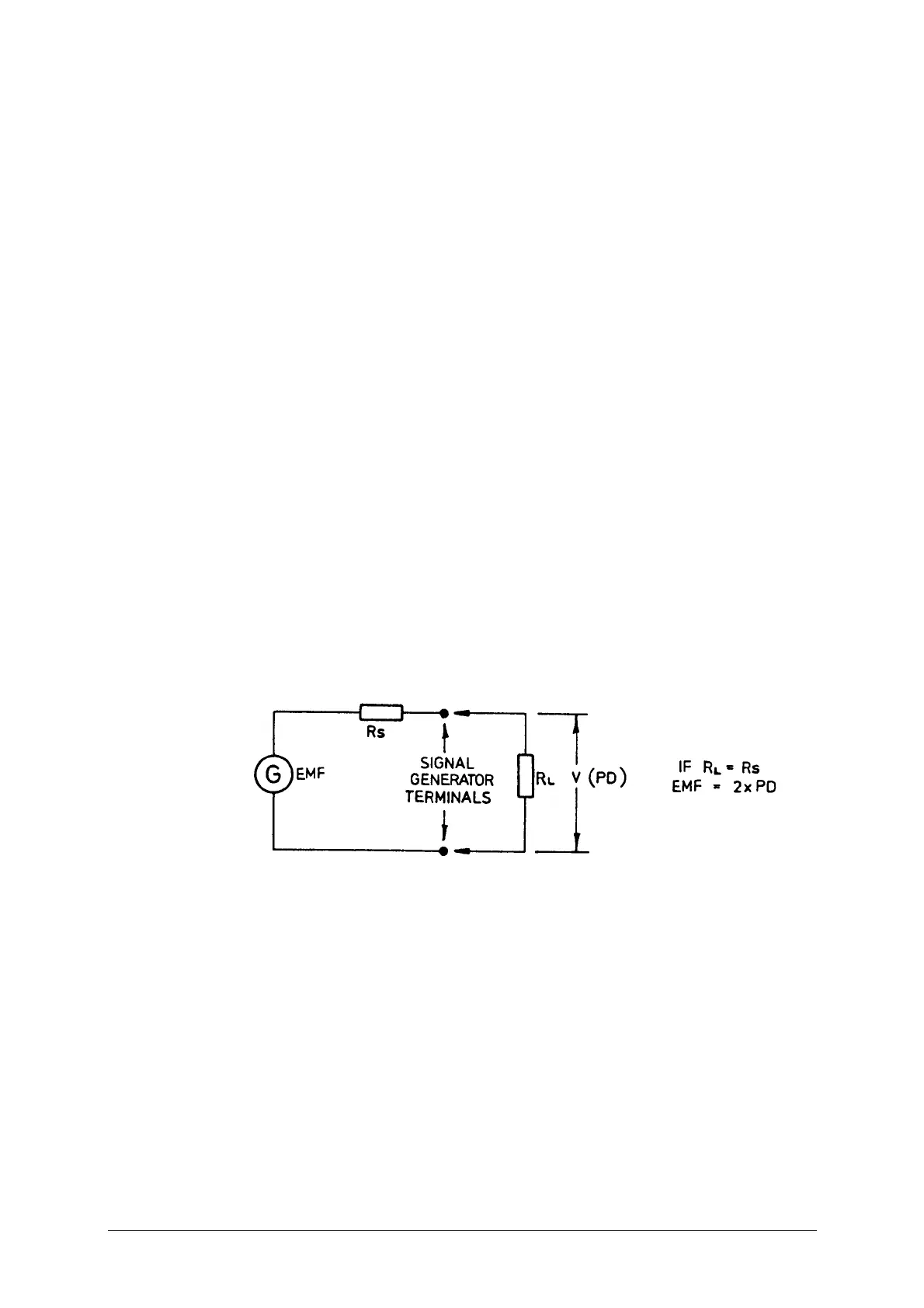

Figure 1.1 EMF Verses PD
