Page 10 of 16

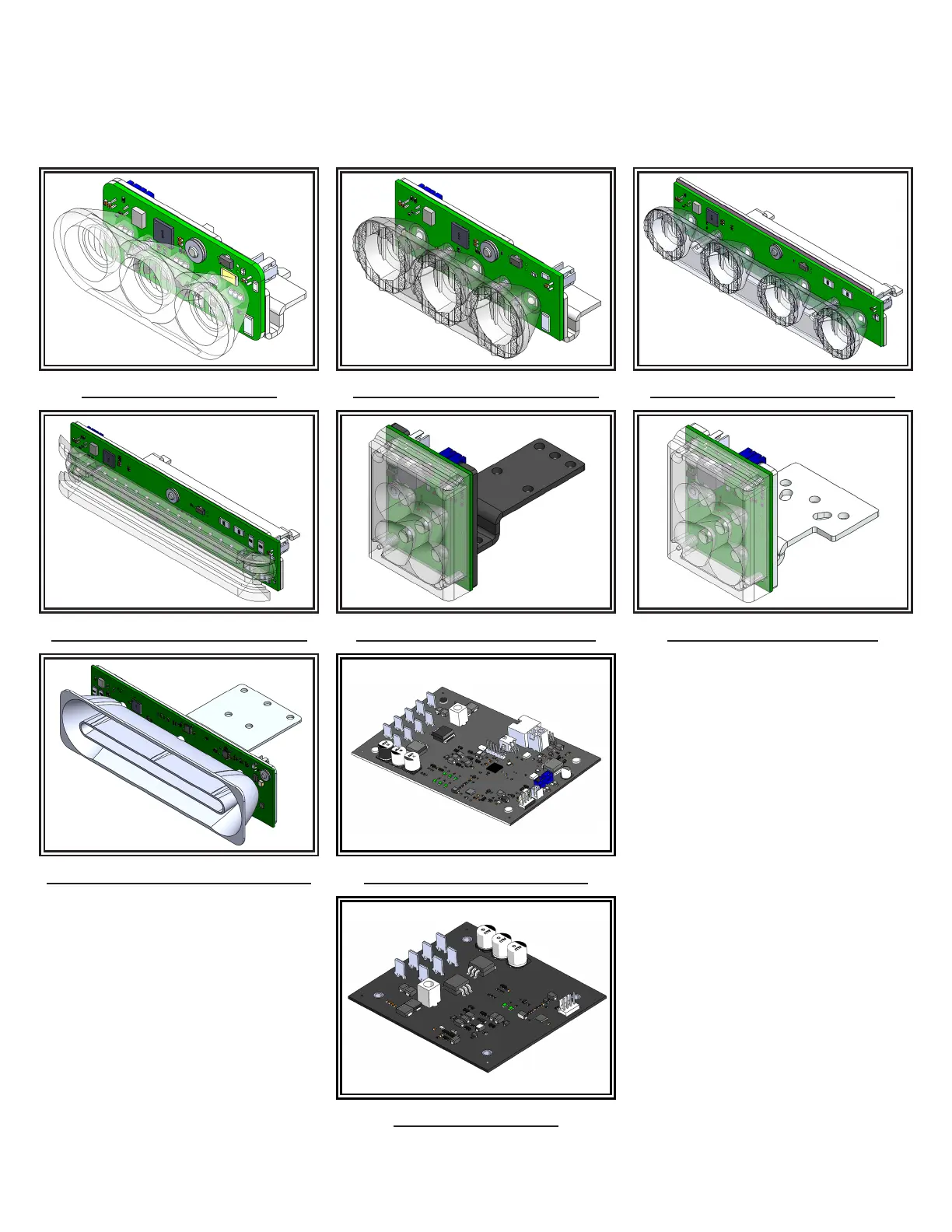

Replacement Parts and Assemblies:
Figure 5 - Torus Takedown
Figure 13 - Power Hub
The Power Hub provides additional power,
on demand, to individual light modules
installed inside the lightbar. It is used only
when the cumulative draw of light modules
chosen exceeds a specied limit. Max
capacity is equal to the LBC capacity, i.e. an
additional 15A RMS, and up to 35A peak,
over the entire operating temperature range.
Figure 12 - Lightbar Controller
The Lightbar Controller transfers network
communication from other Matrix devices
to all the individual light modules installed
inside the lightbar. It also provides power, on
demand, to the light modules. Max capacity
is 15A RMS, and up to 35A peak, over the
entire operating temperature range.
Caution! Lightbar Controller outputs
should only be connected to Matrix
Compatible Light Modules. The warranty
will be void if unsupported products are
connected to the controller.
There are many dierent types of light-heads producing various warning signals in the lightbar as explained below. All retaining screws to be
torqued to 10 IN-LB (1.13 N-M).
Note: LED modules are not user serviceable.
Figure 6 - Torus 3LED Directional
Figure 7 - Torus 4LED Directional
Figure 8 - Torus Directional/Corner Figure 9 - Prizm 5LED Takedown Figure 10 - Prizm 5LED Alley
Figure 11 - Prizm Directional/Corner
To Next Page
