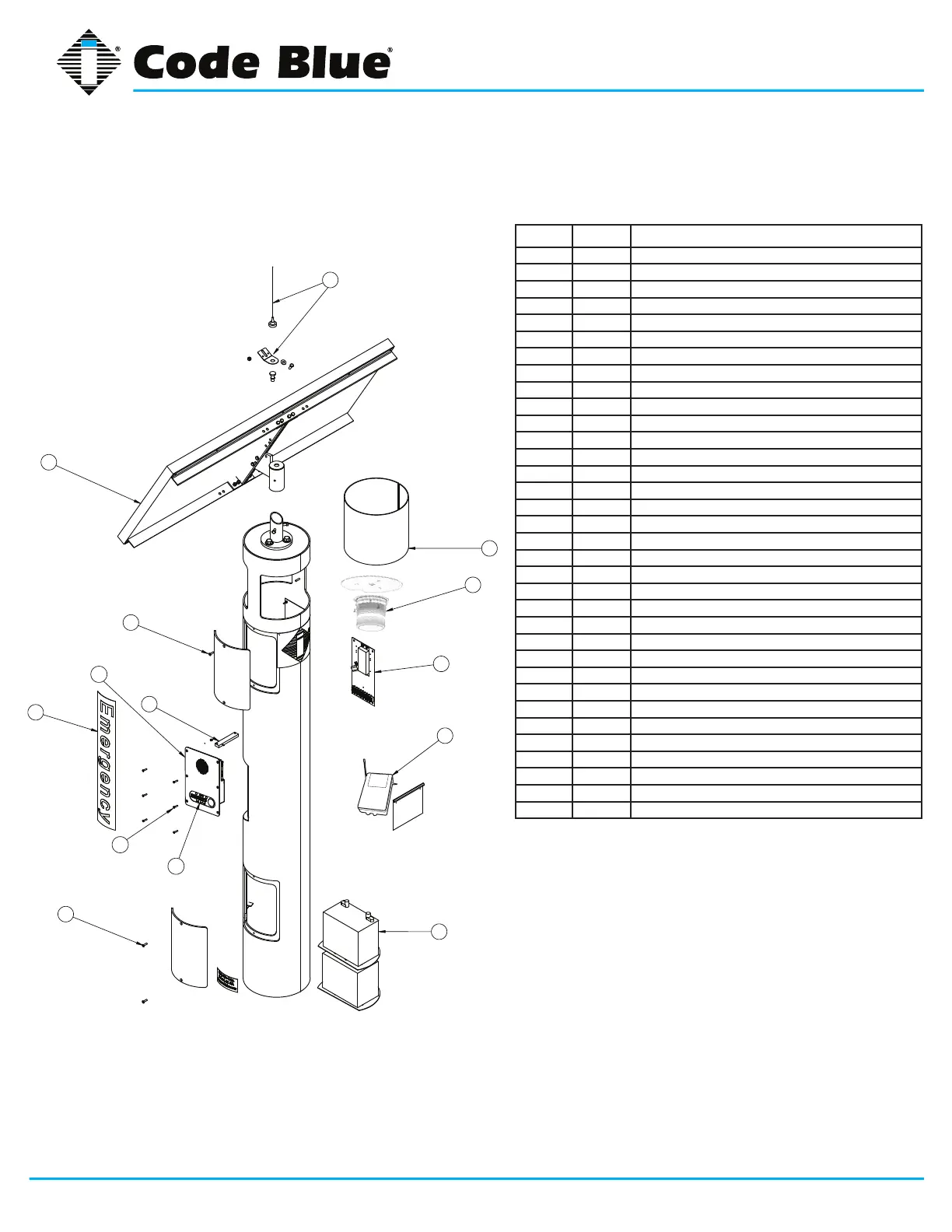

13 CB 1-w Exploded View
DISCLAIMER: Product design and component use subject to change without notice. Product shown reasonably represents current offering and
is intended to assist in component identication. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm
replacement part version and availability.
1
2
3
4
5
6
10
11
12
12
8
7
9
2
BALL # PART # DESCRIPTION
1 CALL Standard / Custom Graphic
2 41545 Access Door Security Screws (2 pk)
3 40542 LED Combo Strobe with Photo Cell
4 40156 Solar Panel Mounting Kit with Solar Panel
5 41410 HID Area Light Lens
6 41548 LED Faceplate Light
7 41544 Faceplate Security Screw 10x24 (6 pk)
8 50001 Single Button IA4100 Analog Phone – PUSH FOR HELP
8 50002 Double Button IA4100 Analog Phone – PUSH FOR HELP
8 50003 Keypad IA4100 Analog Phone – PUSH FOR HELP
8 50004 Single Button IA4100 Analog Phone – EMERGENCY
8 50005 Double Button IA4100 Analog Phone – EMERGENCY
8 50006 Keypad IA4100 Analog Phone – EMERGENCY
8 50007 Single Button IA4100 Analog Phone – EMERGENCY/EMERGENCIA
8 50008 Double Button IA4100 Analog Phone – EMERGENCY/EMERGENCIA
8 50009 Keypad IA4100 Analog Phone – EMERGENCY/EMERGENCIA
8 50101 Single Button IP5000 VoIP Phone – PUSH FOR HELP
8 50102 Double Button IP5000 VoIP Phone – PUSH FOR HELP
8 50103 Keypad IP5000 VoIP Phone – PUSH FOR HELP
8 50104 Single Button IP5000 VoIP Phone – EMERGENCY
8 50105 Double Button IP5000 VoIP Phone – EMERGENCY
8 50106 Keypad IP5000 VoIP Phone – EMERGENCY
8 50107 Single Button IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
8 50108 Double Button IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
8 50109 Keypad IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
9 40357 Bezel Assembly IA4100 Analog Phone – PUSH FOR HELP
9 40407 Bezel Assembly IA4100 Analog Phone – EMERGENCY
9 40408 Bezel Assembly IA4100 Analog Phone – EMERGENCY/EMERGENCIA
9 40313 Bezel Assembly IP5000 VoIP Phone – PUSH FOR HELP
9 40405 Bezel Assembly IP5000 VoIP Phone – EMERGENCY
9 40406 Bezel Assembly IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
10 40030 Power Panel Assembly
11 41537 55 AmpHr Battery
12 40023 GSM Cellular Transceiver Kit with Antenna
