Code Blue CB1 Series - CB 1-S with AED Wiring

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-157-AApage 69 of 76
CB 1 Series
Administrator Guide
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identication and service. Earlier product produc-
tion may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact the manufacturer to conrm
replacement part version and availability. The information contained herein is subject to change without notice.
12V
12V

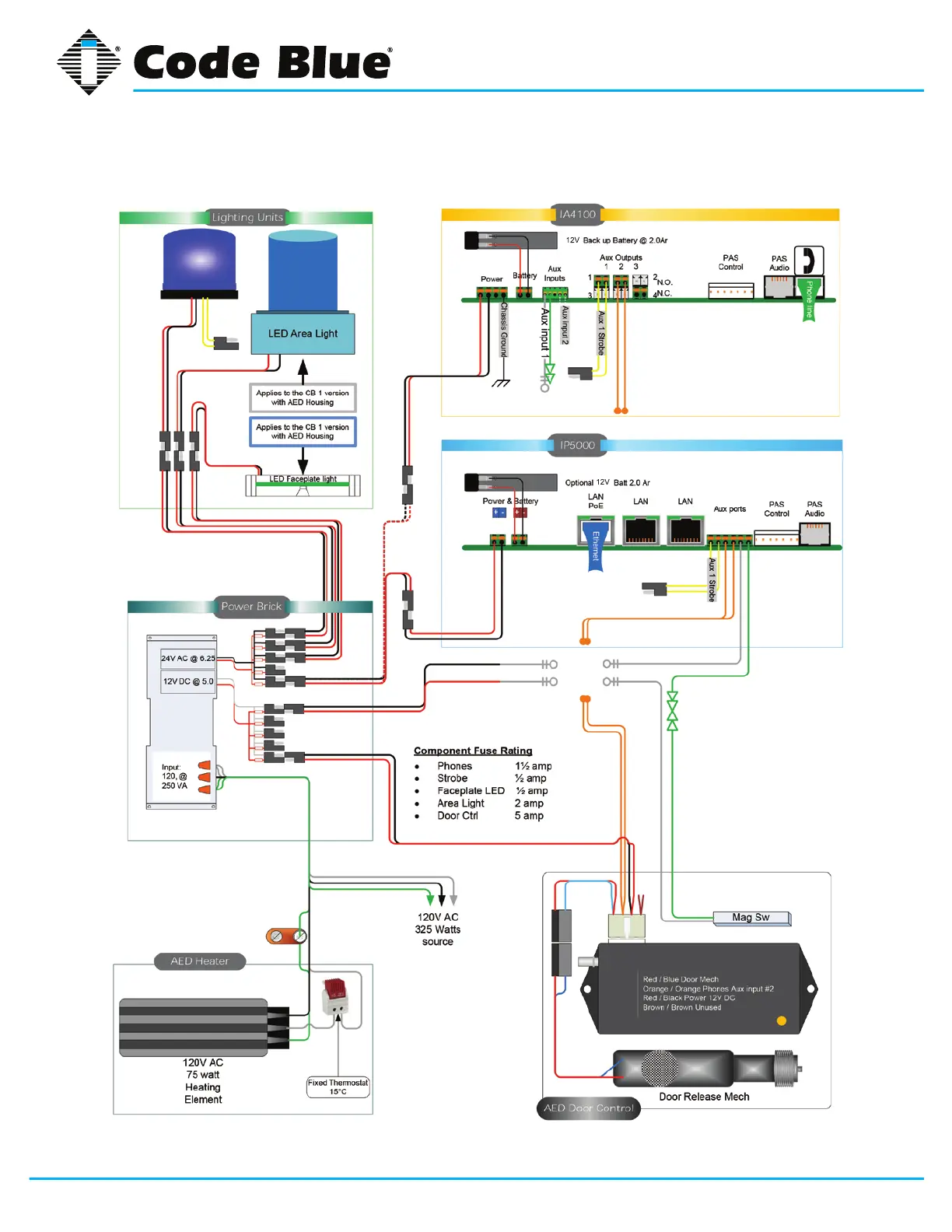

41 CB 1-s with AED Wiring
