CB 1 Series
Administrator Guide

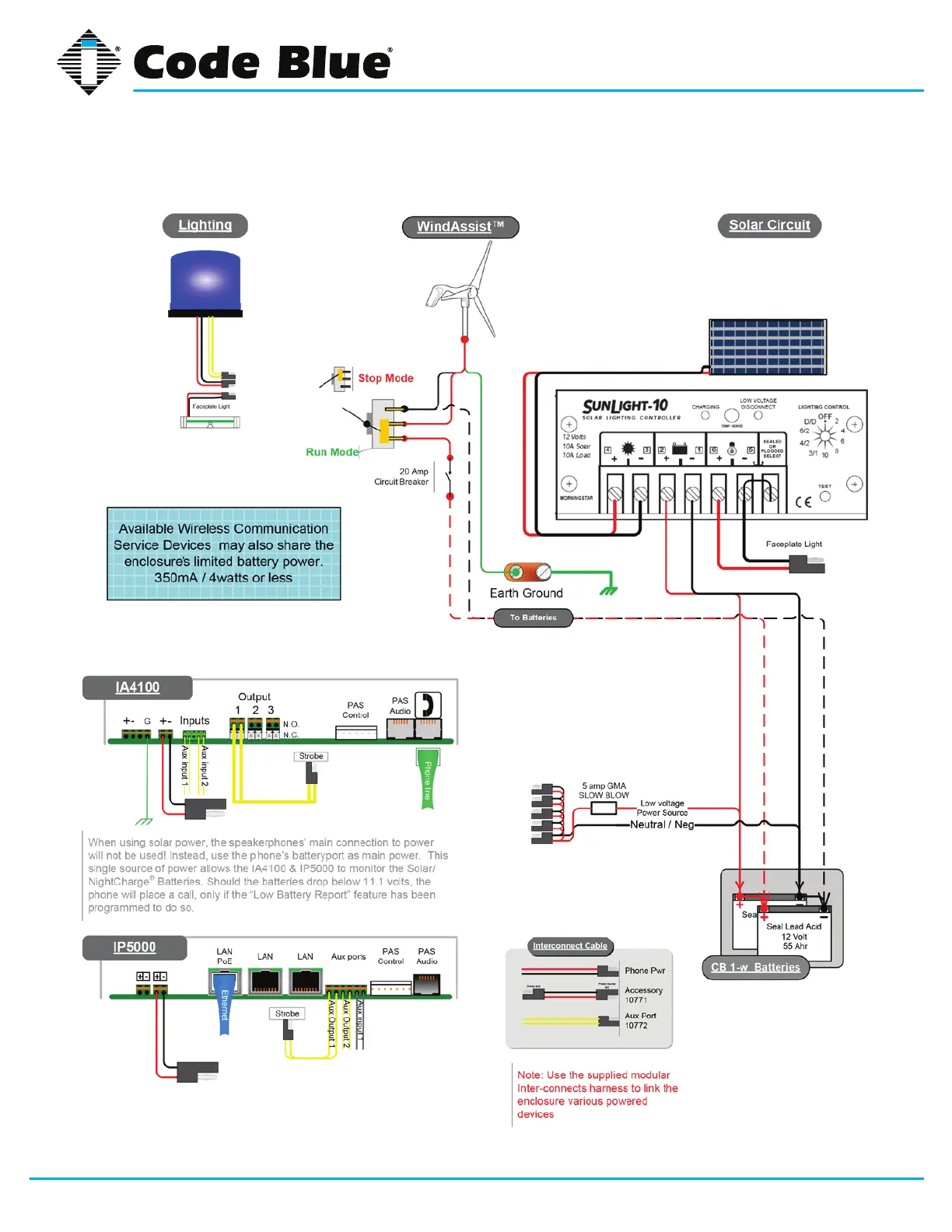

38 CB 1-w Standard Wiring
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identication and service. Earlier product
production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact
manufacturer to conrm replacement part version and availability.
(Solar)
(NightCharge
®
)
-
4-u
