9.2 ELECTRONIC MAINTENANCE
This section is dedicated in detail to the electronic connections between the card and the mechanical compo
-
nents, assembled in the projector. These informations will be absolutely necessary when the mechanical unit has to
be removed from the projector for maintenance and/or repair.

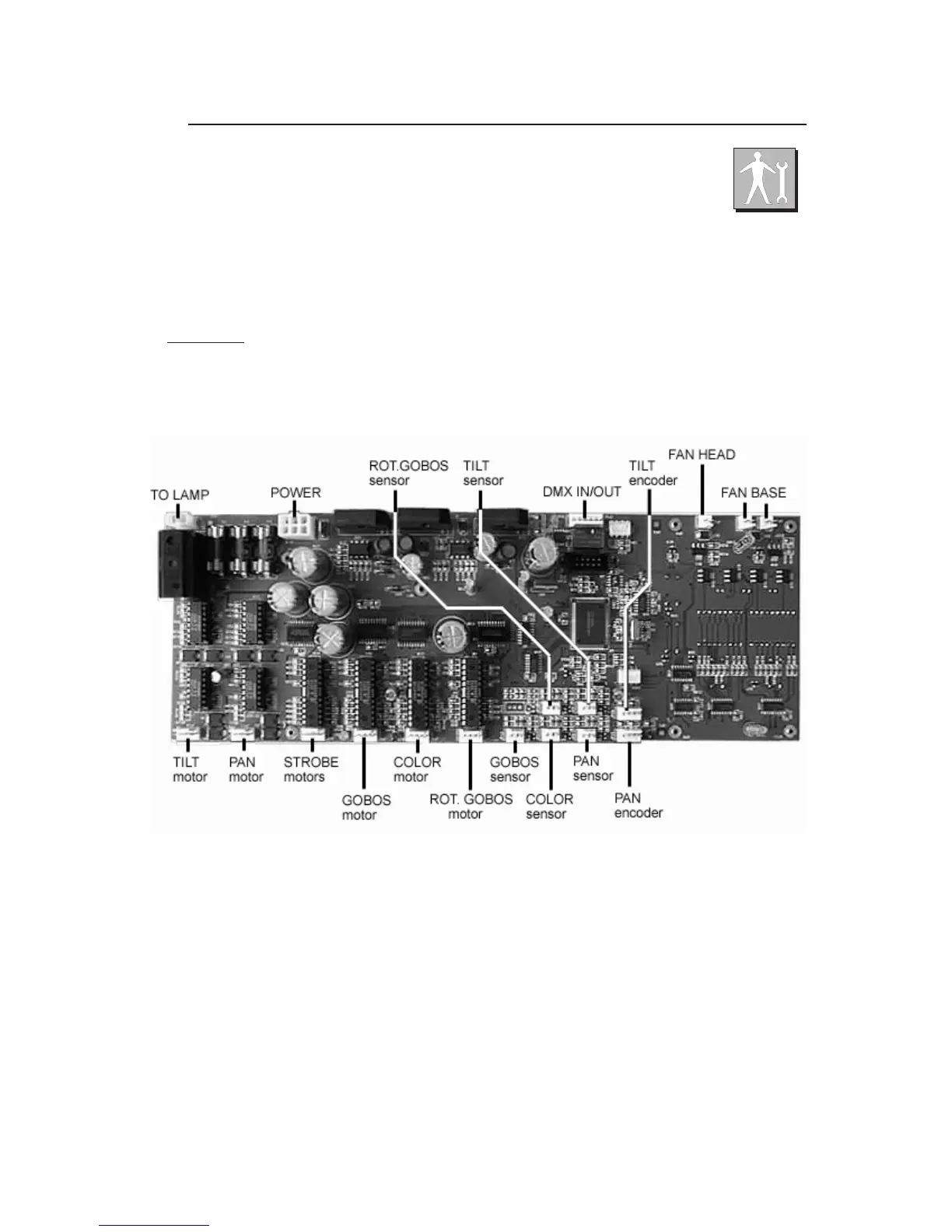

The connections are made using handy connectors and are detailed where you can find indications about the
connection between a specific connector and a specific component of the mechanical unit. This includes the motors
and the sensors of the various effects wheels ( color, gobos, shutter etc.).
WARNING!
An improper use of this documentation made by not specifically qualified staff can damage
irremediably the electronic and/or mechanical components of the projector.
