Section 1
Technical Information
INTRODUCTION
1. The Vitro S3 Beverage Machine dispenses hot beverages in response to a capacitive key
selection. All beverages are dispensed in cup measurements. A liquid crystal display
provides status indications and operational information. All operations are microprocessor
controlled.
2. A cup is placed under the dispense head and the selection is made via a capacitive key
selection. The drink is then dispensed in the required quantity. The machine does not
accept money, but a feature such as this can be added.
3. The status of the machine may be monitored, and the configuration altered, by accessing a
program using the keypad and display. The program offers a menu of options; each
consisting of a number of sub-options which can be altered.
4. The Vitro S3 Beverage Machine has a feature, which heats the water in the boiler very
quickly, with one heater connected, from a 230V~, 16A single-phase supply.

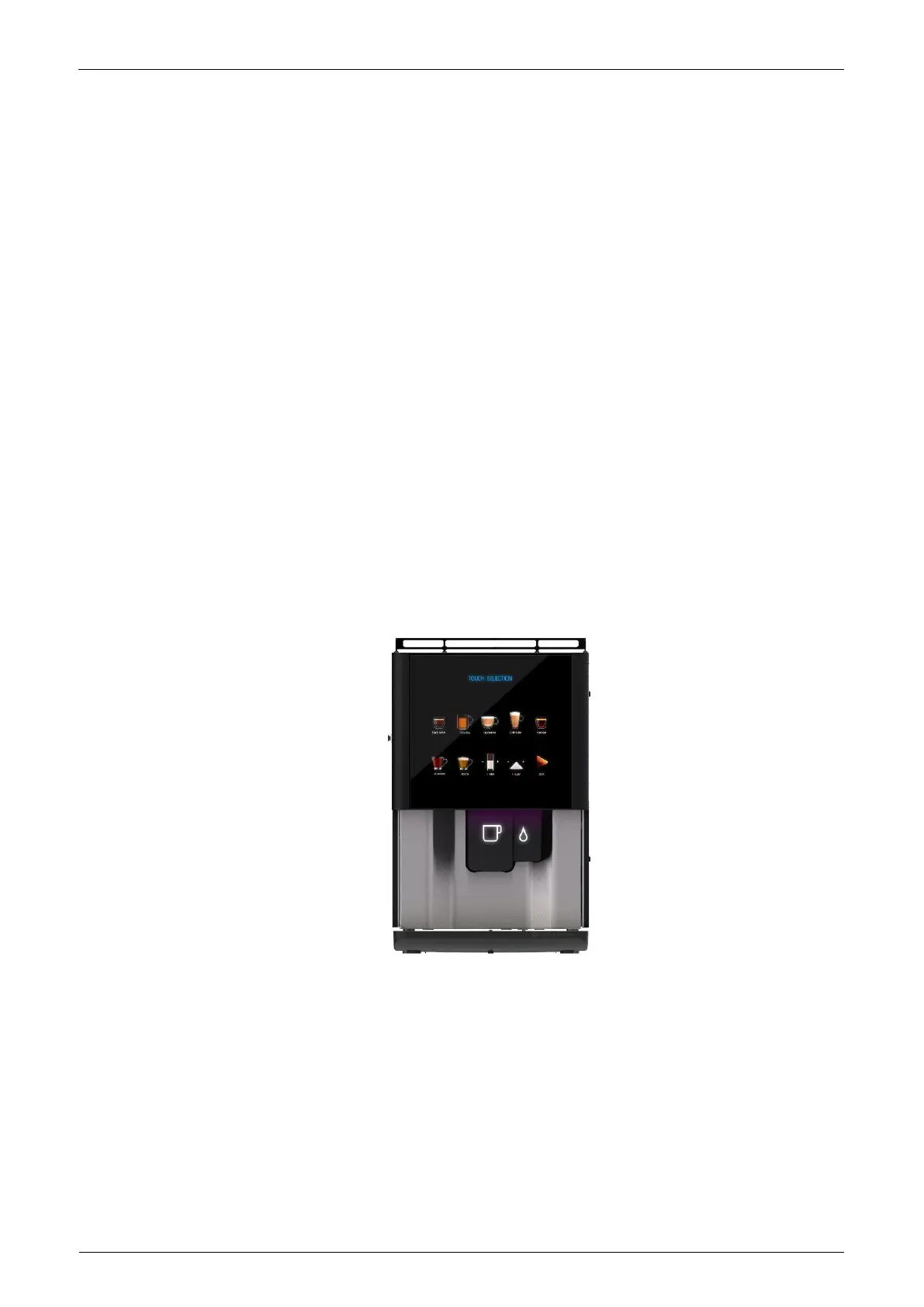

FIG 1.1 VITRO S3 BEVERAGE MACHINE
Model shown is S3 FBT
