1.4.6. Accessories for programming and updating
In the Aeterna Coin Mechanism the parameter programming and the firmware update can be
carried out by using the following devices:
• Maxi Programmer;
• PC programming interface for systems/validators.
1.4.6.1. Maxi Programmer
Maxi Programmer is an instrument for programming Coges' devices, both Coin Mechanisms and
peripherals for coin and bill validation.
This instrument was designed in order to carry out the programming operations of the models
and/or the update of Flash memory, in a controlled and rapid way, permitting thus a direct
programming at the points of sale.
To carry out the firmware update it is necessary to ask
any Coges authorized dealer for the "Harness for Maxi
Programmer and TP606 ccTalk and PROFIT Validator" (see
para. “3.4.2.2. Firmware update by Maxi Programmer”
and para. “3.4.3.2. Model update by Maxi Programmer”
at the end of chapter 3).
With the same harness it is possible to carry out the
firmware update in the Base board (see para. “3.4.1.1.
Firmware update of the Base board by Maxi
Programmer” at the end of chapter 3).
For more detailed information on the programmer, refer
to the quick instructions of the device.

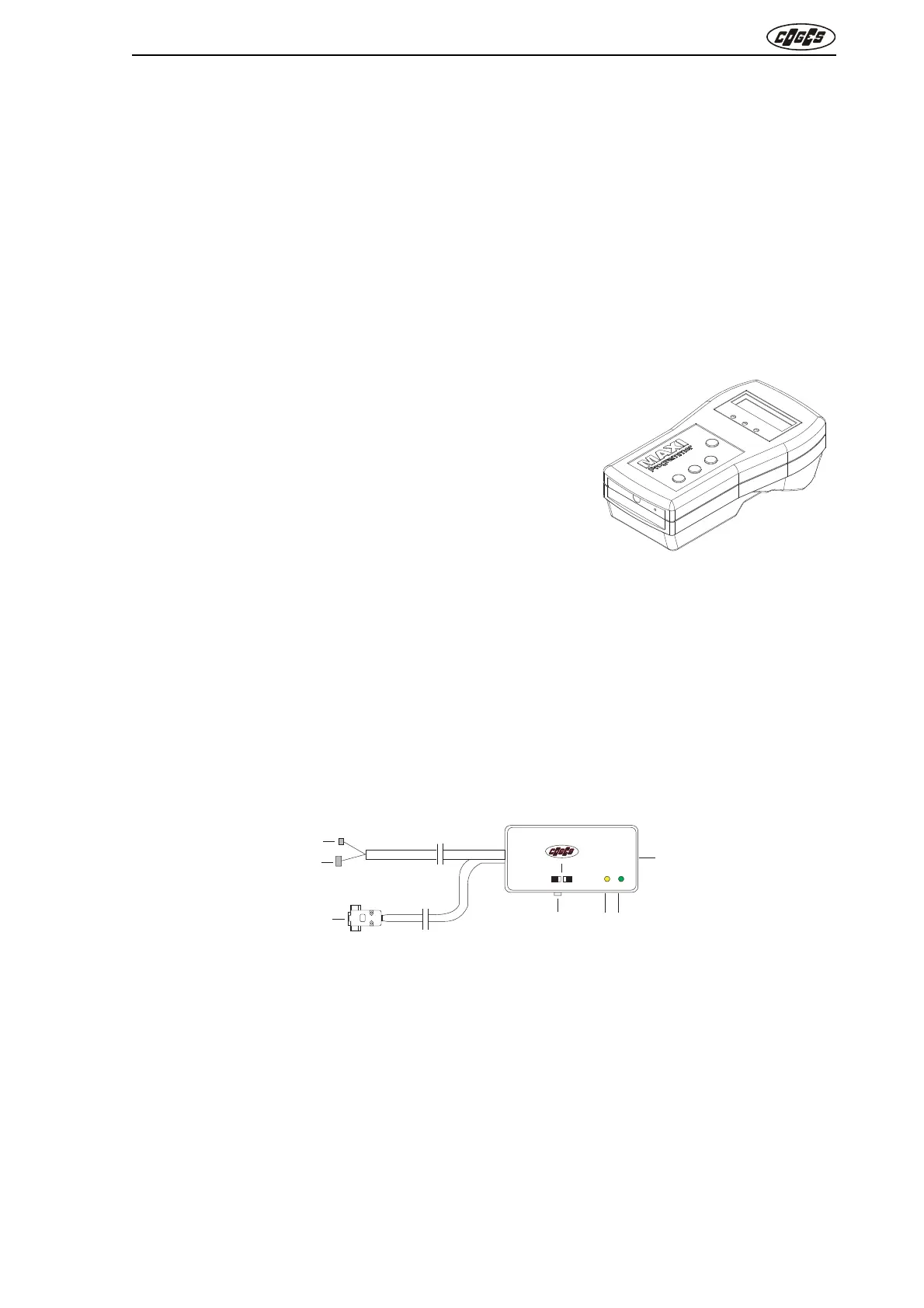

fig. 18
1.4.6.2. PC programming interface for systems/validators
The firmware update of the Base board of the Coin Mechanism is carried out directly by a PC
with the FlashManager software and the "PC programming interface for systems/validators",
which is available at any Coges authorized dealer. The interface is also used to update the
firmware of the Validator/Separator group (see para. 3.4.2. “Firmware update of the Validator/
Separator group”) and of the model inside the Base board (see para. 3.4.3. “Update of the
programmed model”).
fig. 19
1 = Minitek 10-ways connector
2 = Modu 10-ways connector
3 = SUB-D 9-ways connector for PC connection
4 = Switch for Flash/Parameters programming
5 = Yellow LED for Flash programming
6 = Green LED for power supply
7 = PC programming interface for systems/validators
1
2
3
4
56
7
Programmazione
parametri
Interfaccia di programmazione
per Sistemi e Riconoscitori da PC
Programmazione
Flash
Programmazione
Flash
Aliment
azione
®
