COGES Aeterna - Chapter 2: Installation and connections; 2.1. Installation

21
INSTALLATION AND CONNECTIONS
®
Chapter 2
2. Installation and connections
2.1. Installation
Caution: all the operations described in this chapter must be carried out after disconnecting
the power supply cable.
2.1.1. Position of the Coin Mechanism
To install the Aeterna Coin Mechanism it is necessary to find out the specific space in the vending
machine.
2.1.2.
1
1
31 mm 68.5 mm 38 mm
223 mm 112.5 mm
Fastening holes of the Coin
Mechanism
The fastening holes of the Coin Mechanism are
placed according to the Europen standard,
therefore no changes or additional drilling are
necessary.

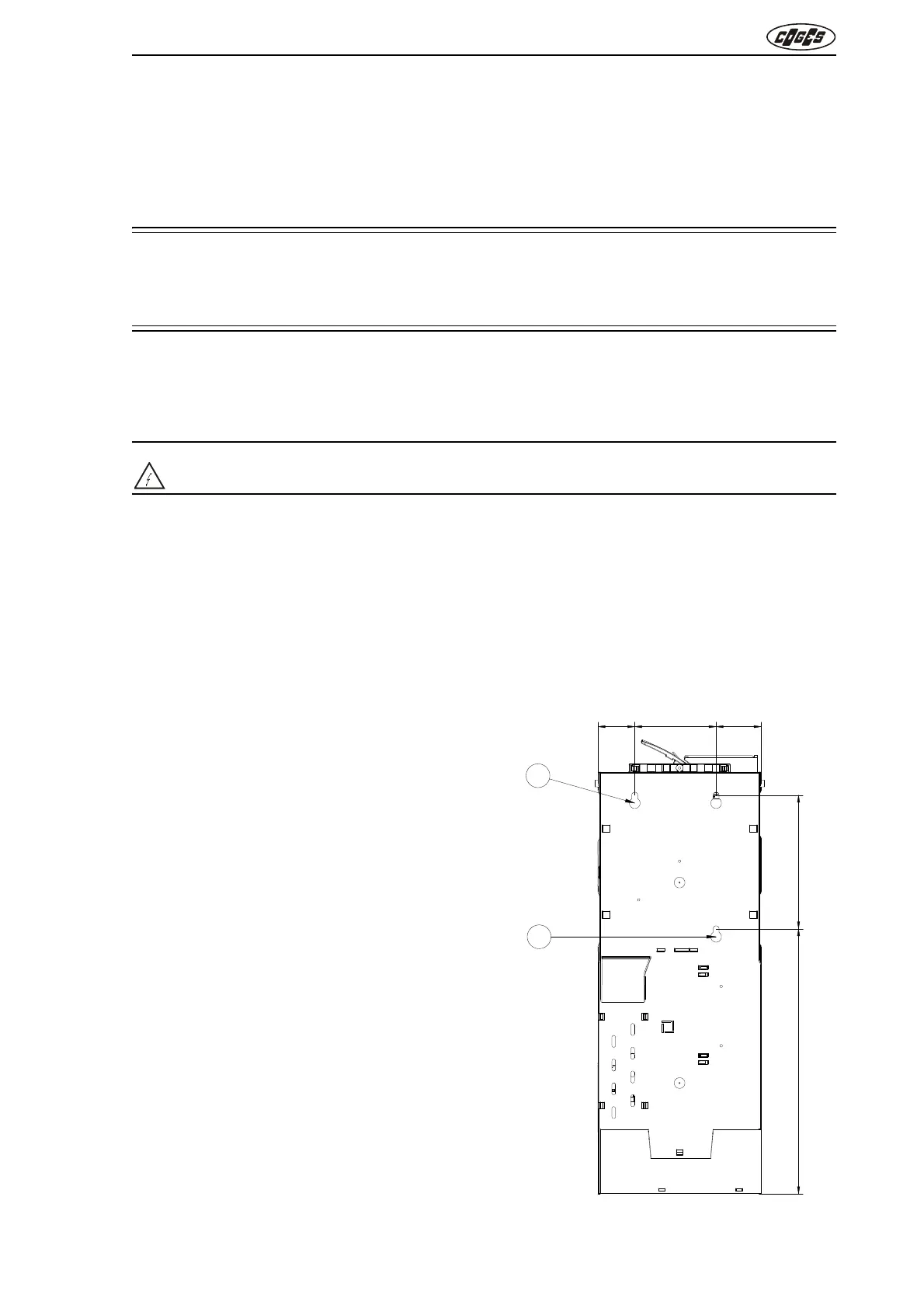

fig. 24
1 = Standard slots for installation
