2.1.7.3. Loading by using the assisted loading function
It is a new system conceived and patented by Coges which permits the tube loading
of the Coin Mechanism directly from the vending machine (this function is available
only with Coges MDB cashless systems). In this case the operator just insert a
recognition key in the cashless system connected to the Coin Mechanism and insert
the coins in the vending machine till the tube is filled up, that is till the coin is
returned in the reject channel. The operation is particularly quick and sure thanks
to the remarkable recognition rate of the Coin Mechanism.
fig. 31
The settings described in the “11.19 Recharge Key” menu item of chapter 3 permit to define the
loading mode with or without change.
2.1.7.4. Installing the interface for electromechanical vending machines

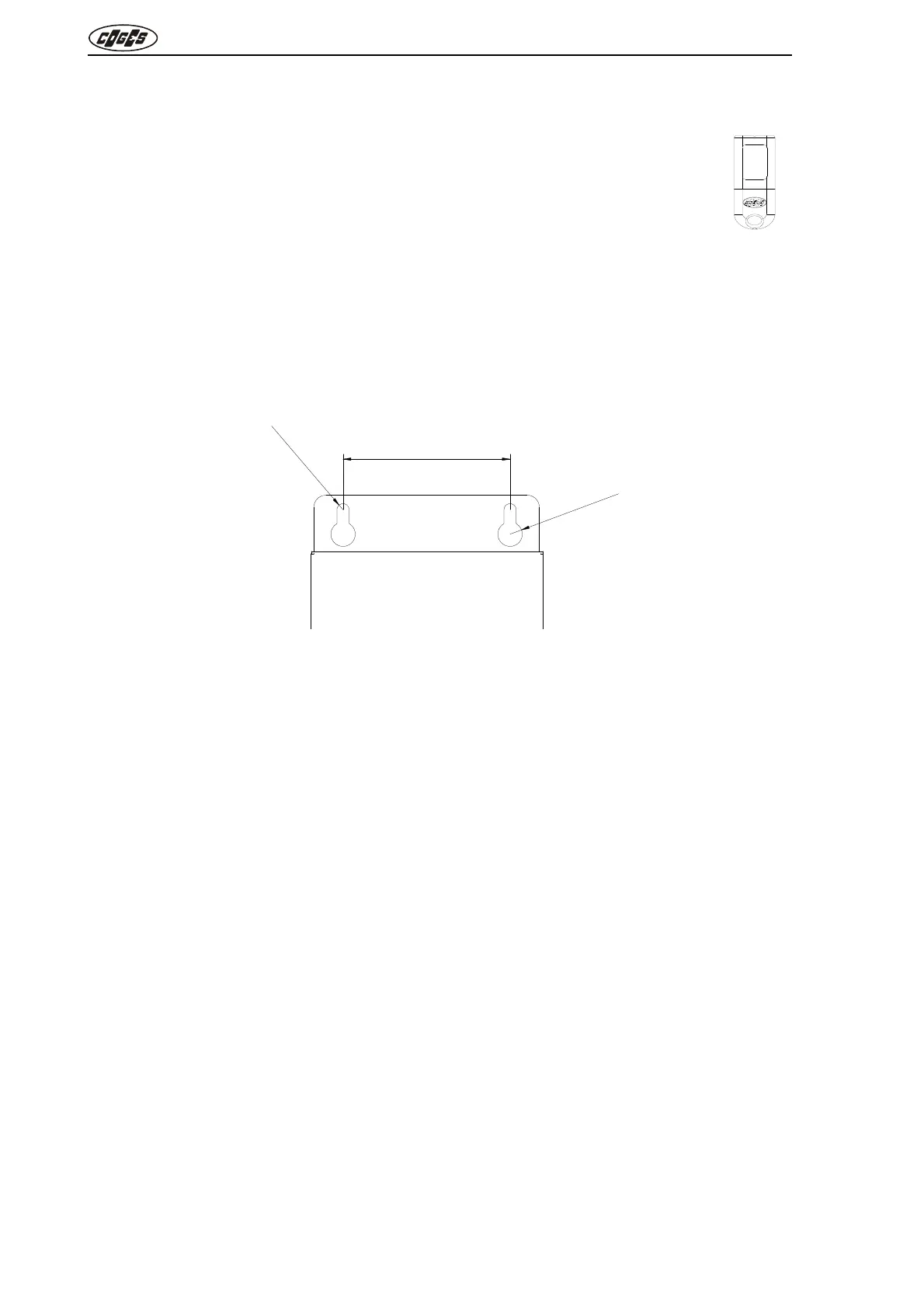

fig. 32
To install the interface for electromechanical vending machines (see para. 1.4.1. “Interface for
electromechanical Automatic Vending Machine”) it is enough to prepare 2 Ø 2,5 mm holes or
two hooks according to the indications reported on the drawing. Connect the harness of the
interface to the J3 connector of the Base board of the Coin Mechanism.
R
2
.
5m
m
R
5
m
m
68.4 mm
