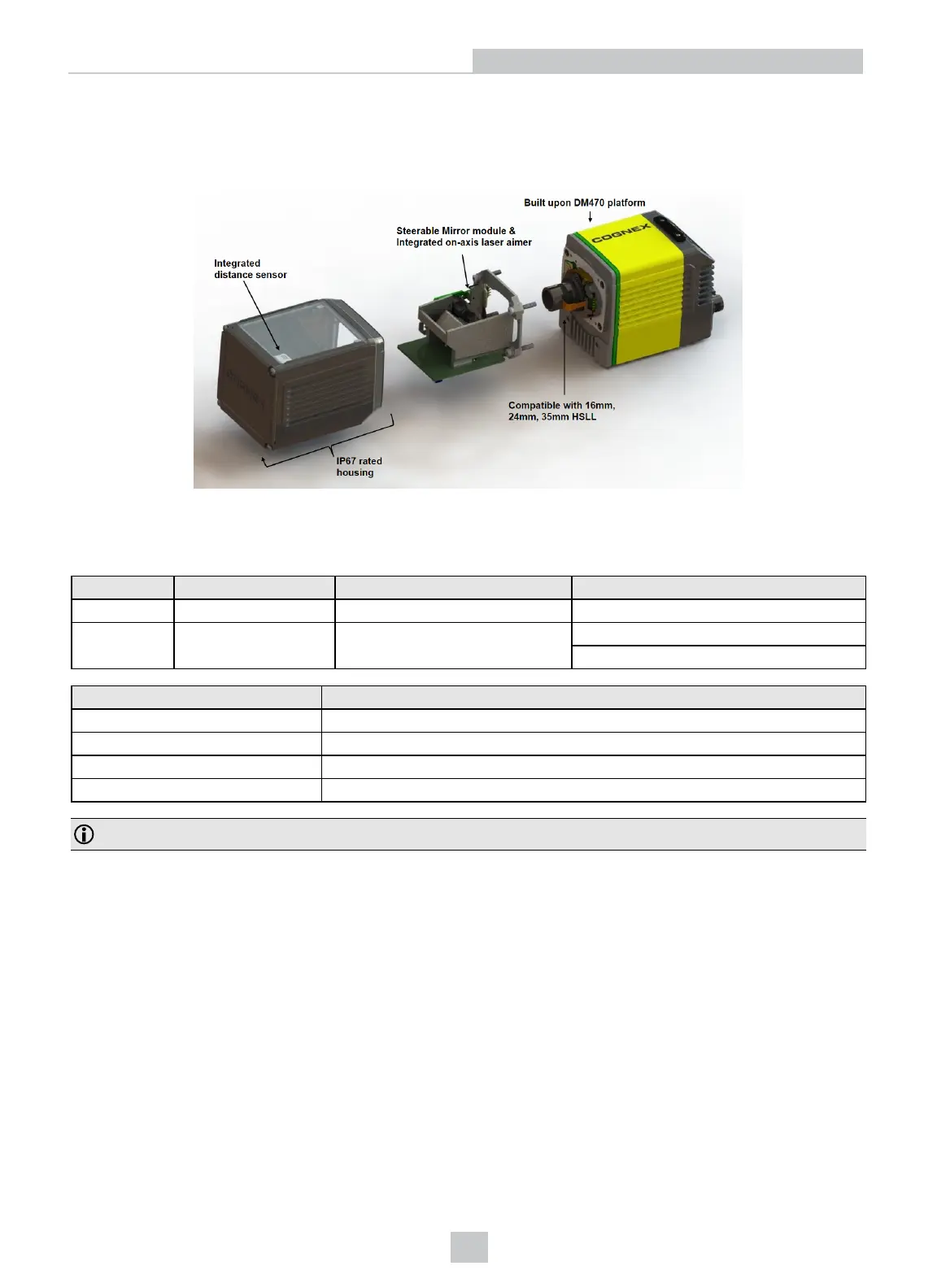

The High-Speed Steerable Mirror is a DataMan Fixed-Mount accessory that multiplies the field of view coverage of a
single camera. The High-Speed Steerable Mirror dynamically steers the field of view and adjusts lens focus between
image acquisitions. This accessory includes a steerable mirror module, time of flight sensor, laser aimer, and High-
Speed Liquid Lens (HSLL).
Hardware Compatibility and Common Kits
Observe the tables below for hardware compatibility and common kit configurations.
Reader Feature Key Scanning Range High-Speed Liquid Lens
DM474 QL 1 Axis Scan Pattern 16 mm HSLL (474 only)
DM475 X 2 Axis Scan Pattern 24 mm HSLL
35 mm HSLL
Product Number Kit
DM-474QL-HSSM-12 DM474QL, 24mm HSLL, 1-axis mirror movement
DM-475X-HSSM-23 DM475X, 35mm HSLL, 2-axis mirror movement
DM-474X-HSSM-LAB DM474X, 24mm HSLL, 2-axis mirror movement lab unit
DM470-KEY-HSSM-2AX 2-Axis Scan Pattern Feature Key
Note: For additional kit configurations, please contact your local Cognex sales representative.
7
Getting Started
