Accessories
You can purchase the following components separately.
Note: For a list of options and accessories, contact your Cognex sales representative.
Note: The HSSM is compatible with all cables, brackets, and external lighting of the DataMan 470. For general
DataMan 470 accessories, please refer to the DataMan 470 Series Reference Manual.
Recommended Lighting Accessories
For 1-Axis and 2-Axis scan patterns, based on the required coverage area, the available lighting configurations are:
Required Coverage Configuration Part Number Quantity
1-Axis < 500 mm Single L300-2X-W IVSL-YLW2X-625-W 1
500 - 800 mm Single LX800-W IVSL-LX800-625-W 1
> 800 mm Single DMBS Light IVSL-DMBS6-625 1
2-Axis < 500 mm
2
Single L300-2X-W IVSL-YLW2X-625-W 1
500 - 800 mm
2
Dual LX800-W IVSL-LX800-625-W 2
> 800 mm
2
Dual DMBS Light IVSL-DMBS6-625 2
The following mounting orientations are recommended for the lighting configurations specified. Please observe the color
coding below:
Square Color Device
YELLOW Lighting
BLACK High Speed Steerable Mirror

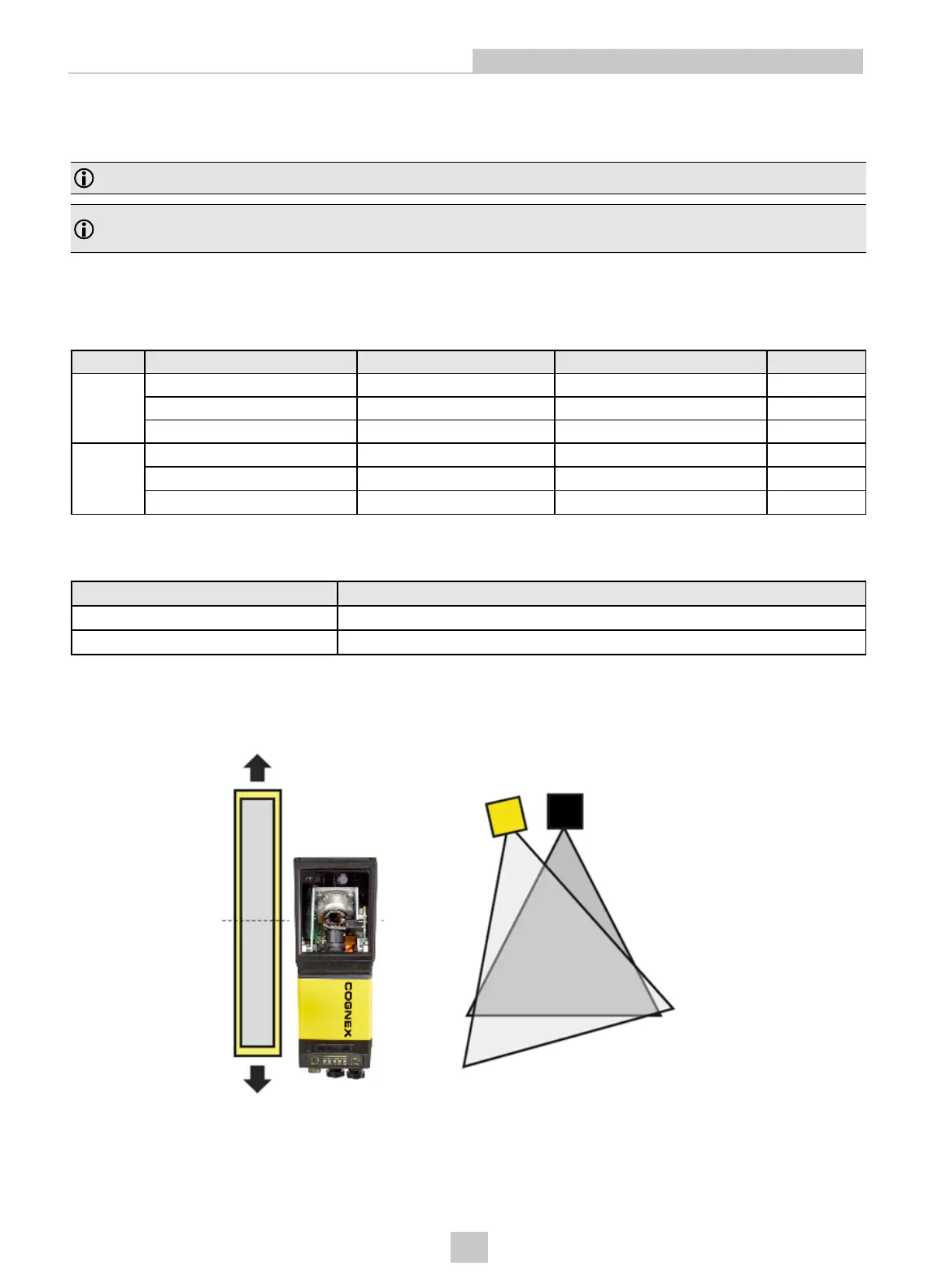

Single light for 1-axis mirror movement:
8
