l Recommended:Attach the sensor to the DS1000 series high-accuracy mounting plate. See the topic High-
Accuracy Mounting on page22 for more information.
l Use the mounting bosses on the top of the device. See the topic Top Mounting on page25 for more information.
l Use the mounting through-body holes on the side of the device. See the section Through-Body Mounting on
page25 for more information.
High-Accuracy Mounting
The mounting plate (part number DS-MPHA-00) accessory offers the following advantages when anchoring your sensor
to your production environment:
l The laser plane will always be parallel to the mounting plate.
l Removing and replacing a sensor requires fewer steps and allows you to mount a new sensor in exactly the
same position as the previous unit.

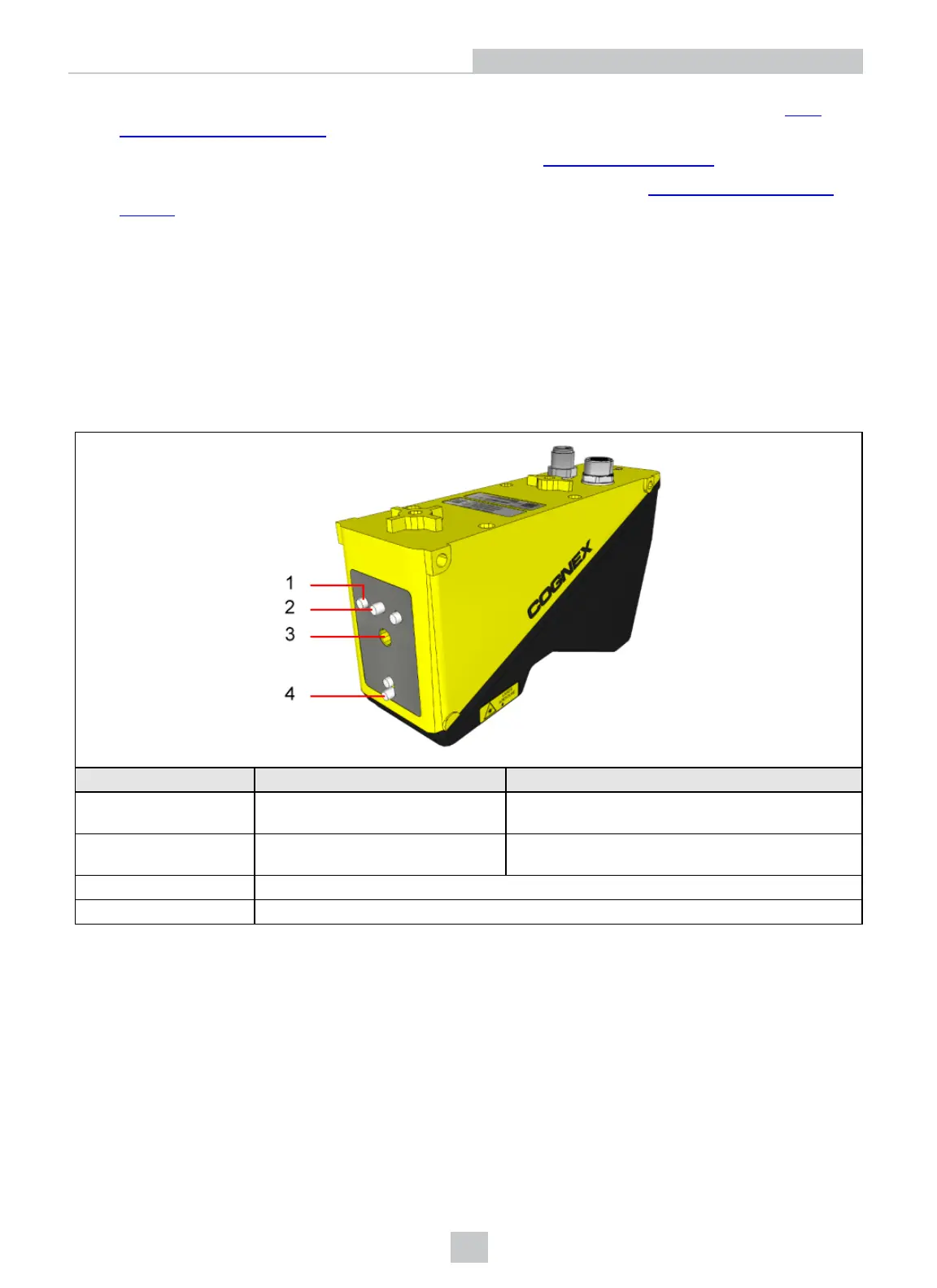

Be aware of the following mounting features for use with the mounting plate:
Feature Description Usage
1 Plane Pins (3 total) Ensures that the laser plane is parallel to the
mounting plate.
2 Location Pin Constrains the rotation of the sensor around the
Master Pin.
3 M6 screw thread
4 Master Pin
22
Mounting the Sensor
