Installing the In-Sight 2000
15
LIGHTS Port Specifications
The In-Sight 2000 provides power to supported LED illumination systems through its LIGHTS
port. Figure 7 provides pin numbers and assignments for the LIGHTS port.

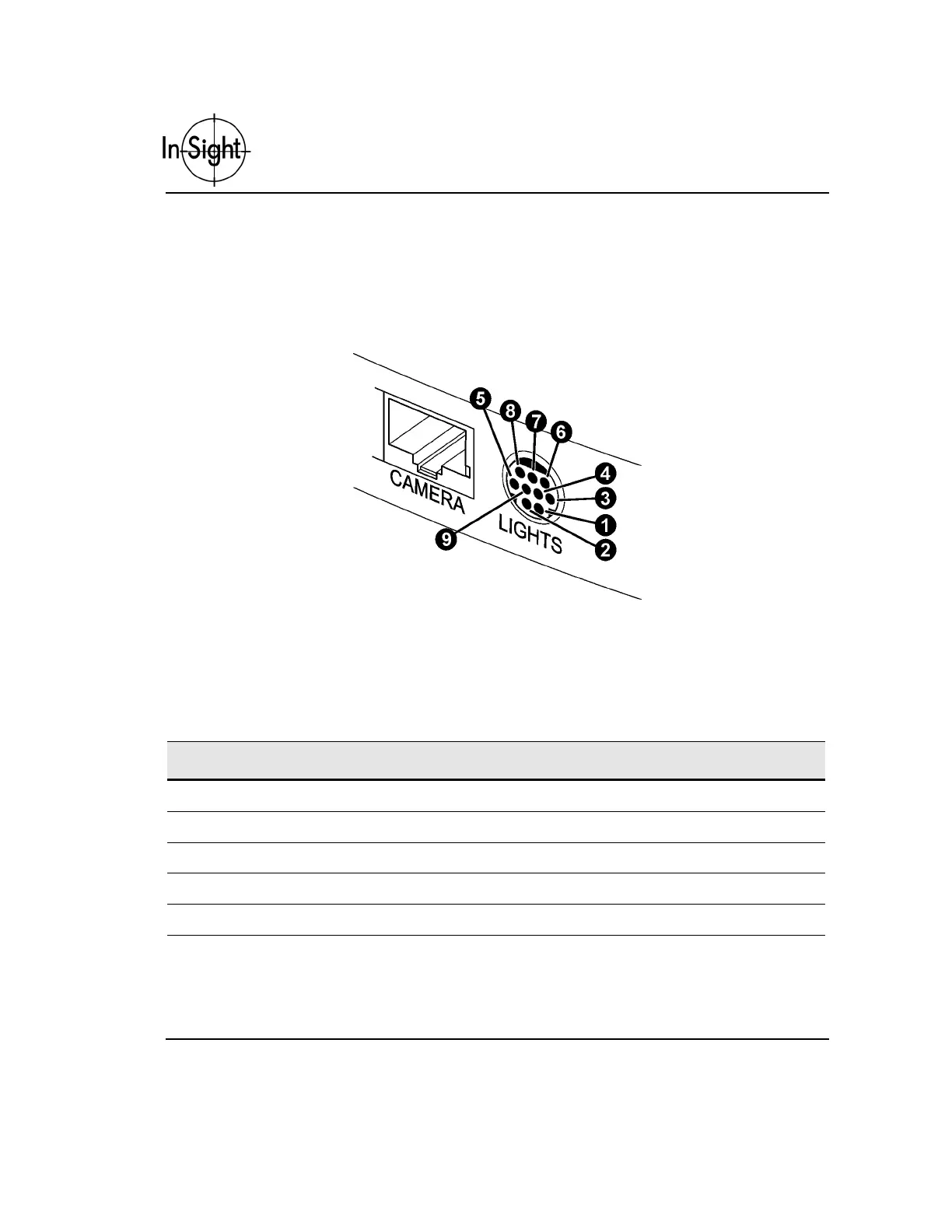

Figure 7. LIGHTS Port Pin Numbers
Table 4 contains the signal name for each pin labeled in Figure 7.
Table 4. LIGHTS Port Pin Numbers and Assignments
Pin Signal Name Pin Signal Name
1 Light 0, channel 0, 0 to 60 mA 2 +24 VDC, channel 0, 0 to 60 mA max
3 Light 0, channel 1, 0 to 60 mA 4 +24 VDC, channel 0, 0 to 60 mA max
5 Light 1, channel 0, 0 to 60 mA 6 +24 VDC, channel 1, 0 to 60 mA max
7 Light 1, channel 1, 0 to 60 mA 8 +24 VDC, channel 1, 0 to 60 mA max
9 Ground (unused by 8-pin plugs) Shield Ground
