Installing the In-Sight 2000
14

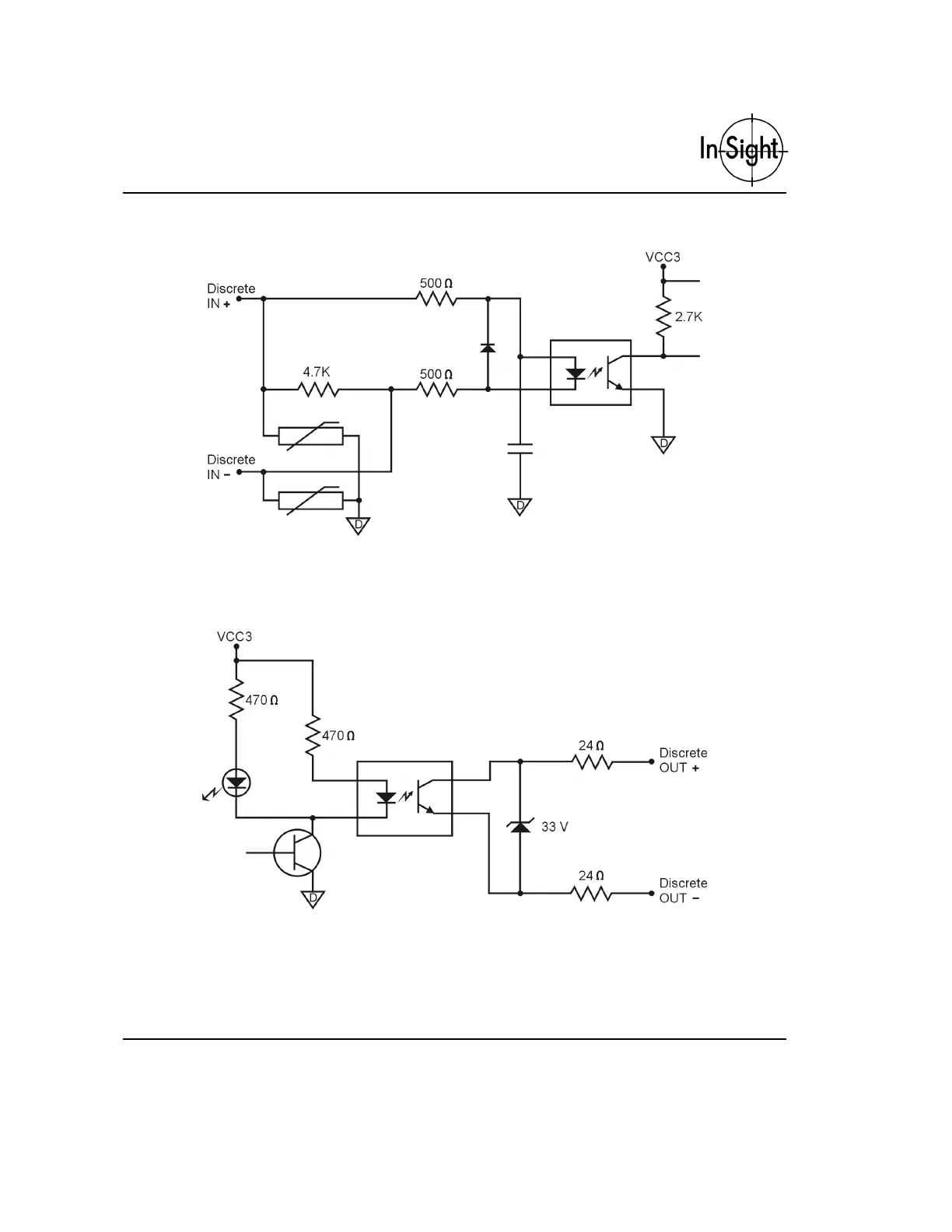

Figure 5 is the electrical schematic for the built-in discrete inputs.
Figure 5. Discrete Input Schematic (built-in inputs only)
Figure 6 is the electrical schematic for the built-in outputs.
Figure 6. Discrete Output Schematic (built-in outputs only)
For information related to the I/O Expansion Module, refer to the I/O Expansion Module
Installation and Reference (Cognex P/N 590-6283).
