In-Sight Strobe Light Adapter Installation & Reference
5
6. Push the 7-pin DIN male connector from the Cognex Light Module onto either of
the two available 7-pin DIN light module jacks. Rotate the collar on the connector to
lock it in place.

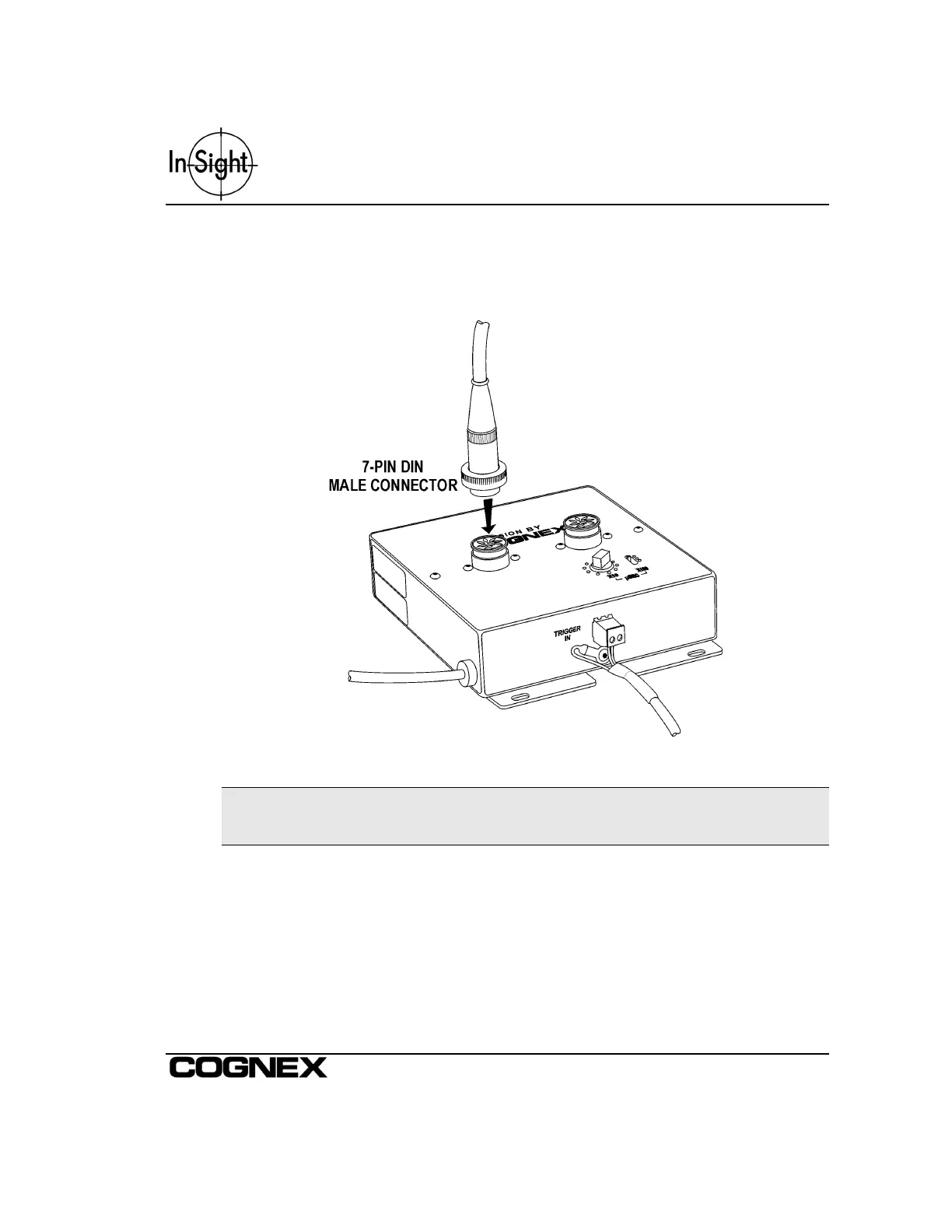

Figure 2-4: Connecting to the Light Module
NOTE The Strobe Light Adapter features two 7-pin DIN output jacks for simultaneously controlling two
Spot Light Modules (CLM-2420). For all other standard Cognex Light modules, the Strobe Light
Adapter can use only a single light.
7. Restore power to the In-Sight processor.
