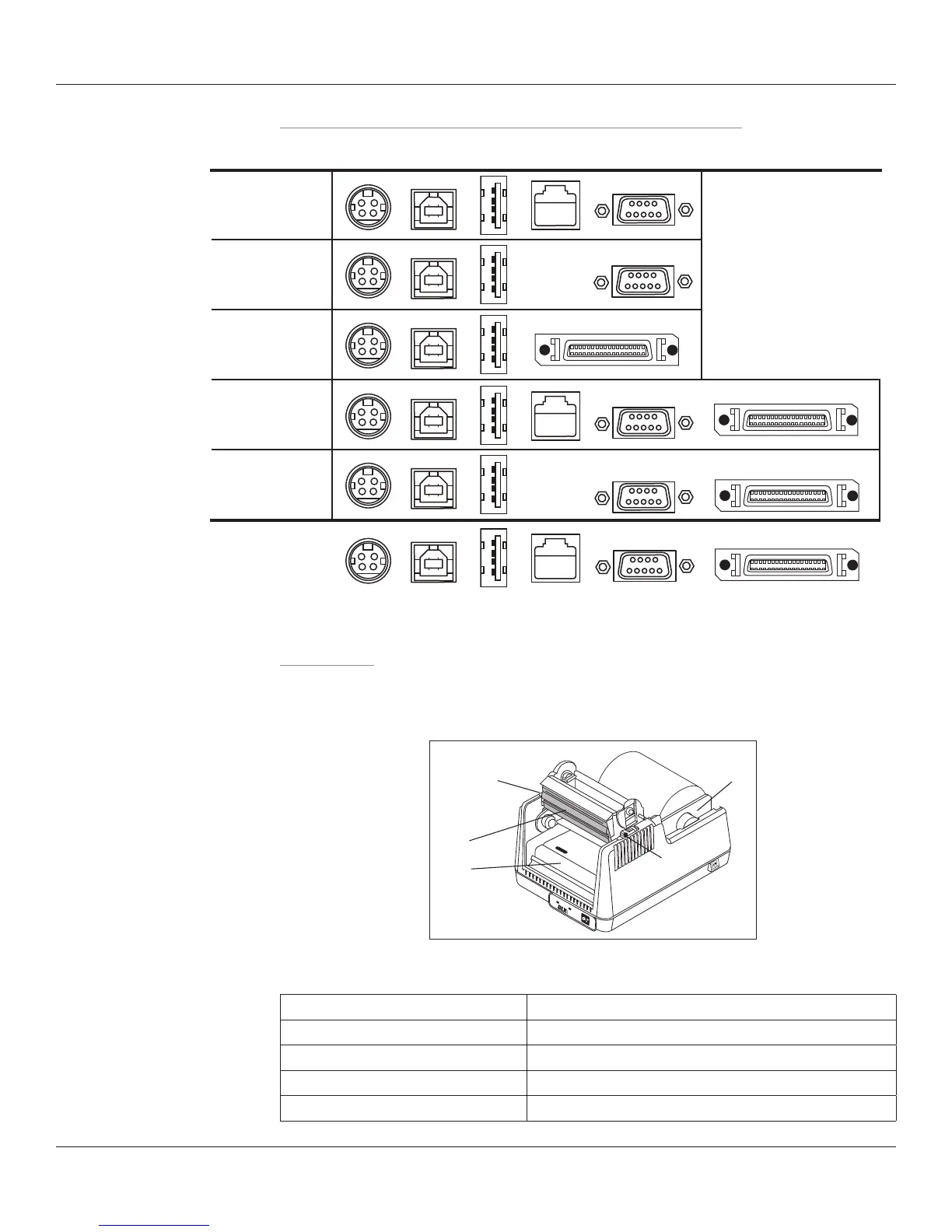

DLXi Communication Interfaces (2” and 4” Model Detail)
Inside View
Common Components for All Models (Direct Thermal and Thermal Transfer)
(TT Printer Shown)
Component (DT & TT Models) Function
A - Printhead Printing mechanism
B - Platen Roller Friction feed printing surface
C - Printhead Latches Latches for printhead mechanism
D - Media Guide & Spindle Holds and guides label roll
2” 4”
2” USB/Ethernet/
Serial
2” USB/Serial
2” USB/Parallel
4” USB/Ethernet/
Serial/Parallel
4” USB/Serial/
Parallel
KEY DC USB-B USB-A ETHERNET SERIAL 9-PIN MINI-CENTRONICS
(DTE Device) Parallel 1284-C
A
B
C
C
D
