Cola PETIT - Removing the Cladding

PETIT
47

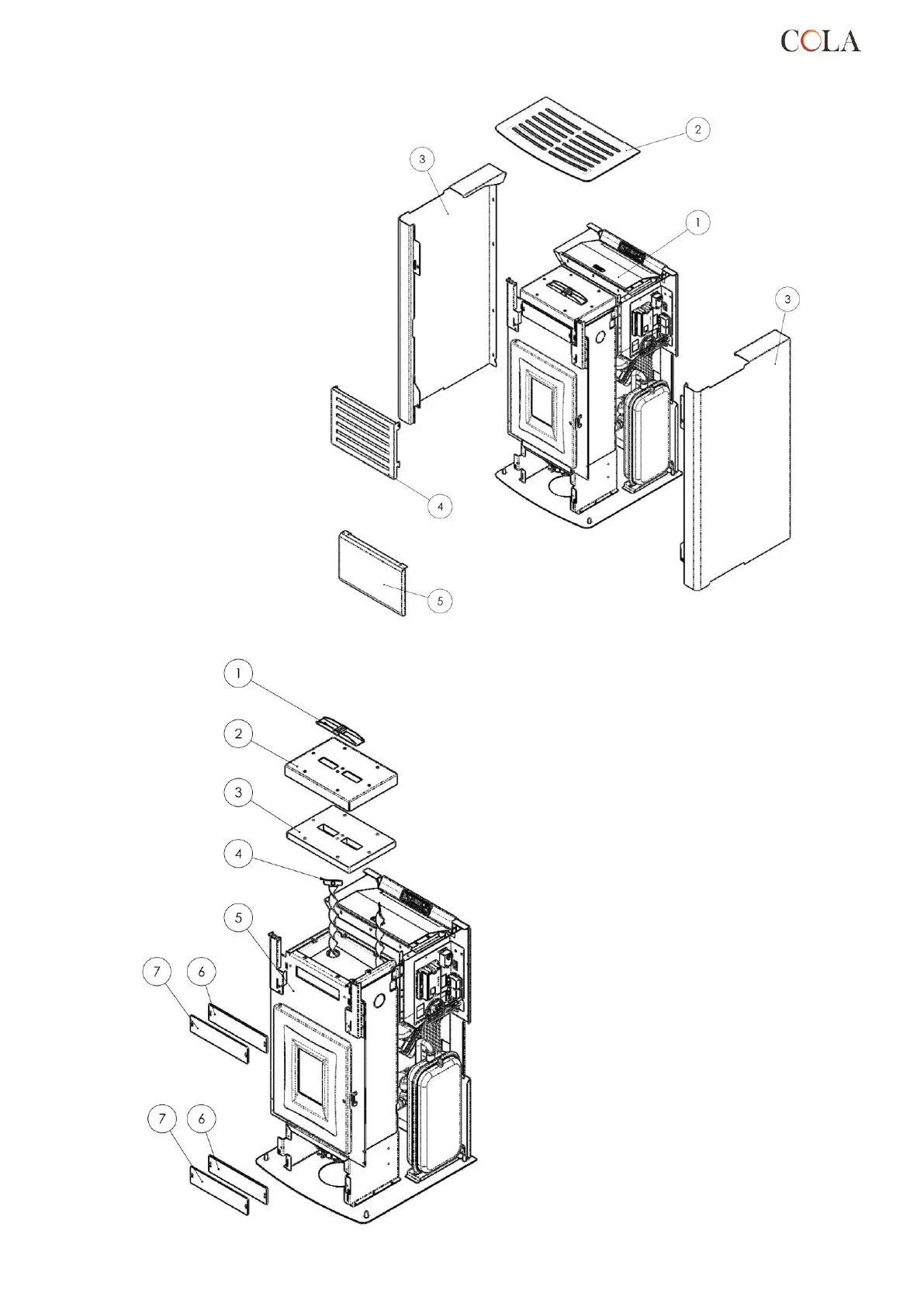

6.2 Removing the cladding
6.3 Stove internal parts
Key:
1 - Safety valve
2 - Heating chamber cover
3 - Vermiculite protection
4 - Turbulators
5 - Heating chamber
6 - Gasket
7 - Inspection cover
Key :
1 - Hopper door
2 - Steel top
3 - Side panel
4 - Upper front panel
5 - Lower front panel
