Section 2
Installation and Setup

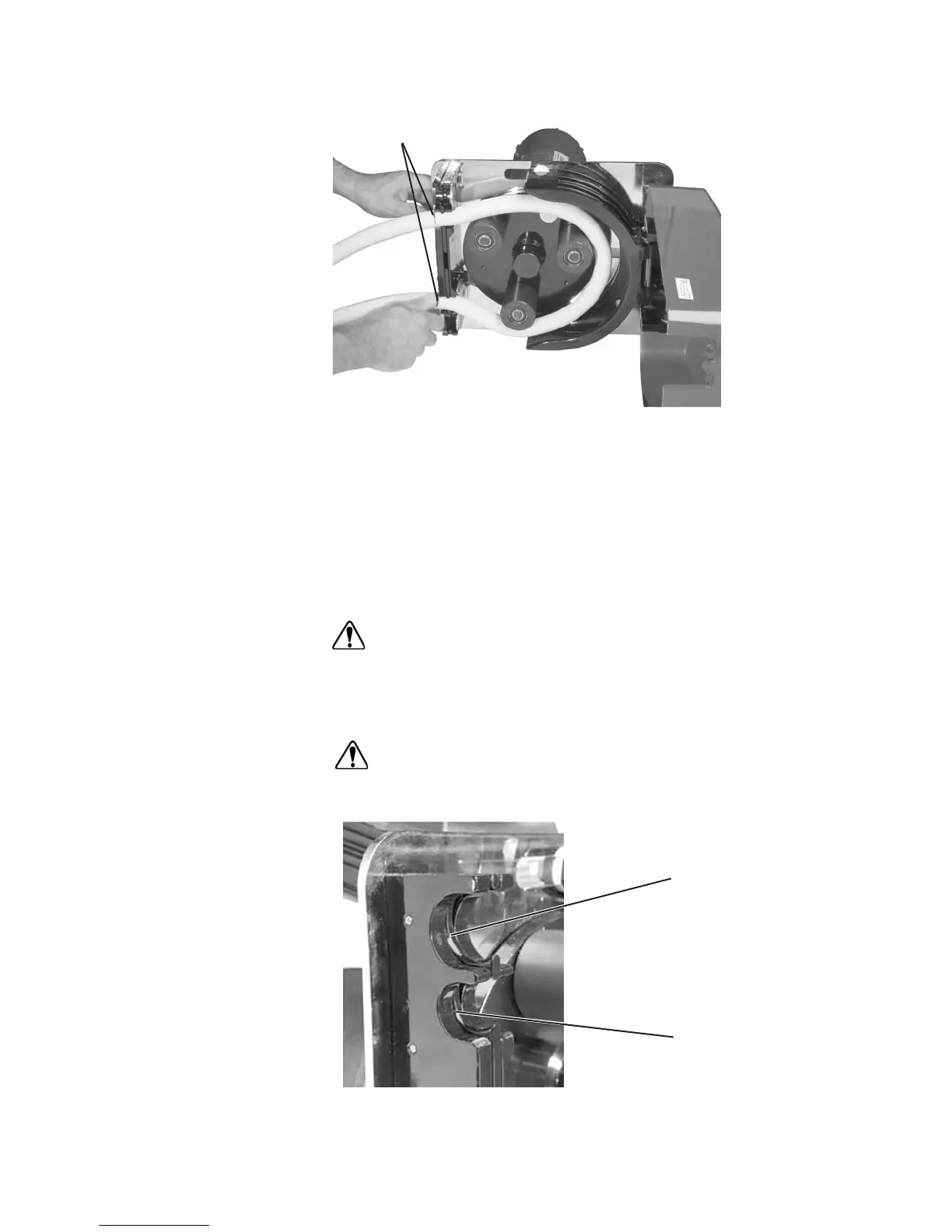

Figure 2-9. PerfectPosition Marks
4. If the new tube must be cut from a length of approved replacement
tubing, a minimum of 32 inches will be required for a new tube.
5. Going with the natural lay or curvature of the tubing, wrap the tubing
around the assembly and insert the tubing in the lower retaining pocket.
6. Close the door and insure that door latch is engaged and locked.
WARNING: Do not operate this pump without cover or interlock
door properly closed and latched. Rotating parts can cause
serious injury.
7. Restore power to the pump.
WARNING: To reduce the risk of injury, use hose clamps on all
tubing connections.
All tubing connections must be made outside of the pump.
PERFECTPOSITION
MARKS
TUBING RETAINING POCKETS
FOR (A) 91 AND (B) 87 TUBING
A
B
Figure 2-10. Tubing Retaining Pockets
