Peristaltic Pumps and Drive Operating Manual 3-1Cole-Parmer
Section 3 Operation
A) DOWN ARROW (DECREMENT)—Decrease value of a flashing display.
B) UP ARROW (INCREMENT)—Increase value of a flashing display.
C) DISPENSE/COPY—Set dispense volume, copy amount, or dispense time.
D) FLOW CONTROL—Set flow rate for selected tubing size. To change flow rate, press ▲ or
▼ arrows. (If pump is running, its speed will change with new settings.)
E) CAL CONTROL—Refine built-in calibration, using a measured volume.
F) STOP/START—Stop/Start motor.
G) PRIME—Run pump at full speed to fill or clear lines.
H) DIRECTION—To change motor direction.
I) MODE SELECT—INT for internal control; mA for remote current control; V for remote voltage
control.
J) SIZE—Select tubing size and flow units, also displays maximum flow rate.
K) GALLONS—Flow and Volume units indicator.
L) LITERS—Flow and volume units indicator.

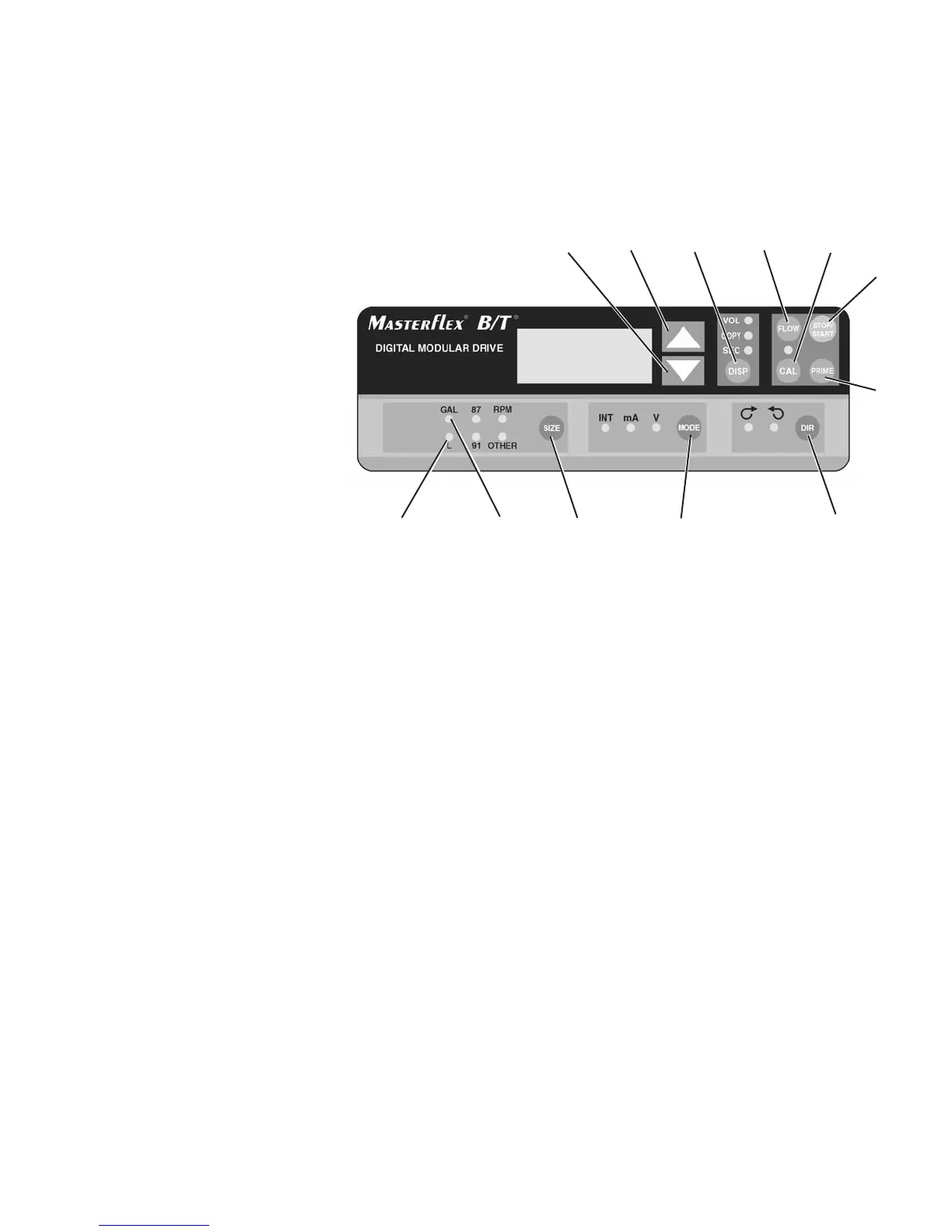

Figure 3-1. Control Panel
Press buttons to activate function.
Use up/down (▲, ▼) arrows to correct/change a flashing display.
Press STOP/START to enter new values.
Control
Display Functions
Models 77111-10
77111-15
77111-40
77111-47
AB
C
D
E
F
G
HIJ
K
L
