Remote Control Setup
(continued)
A1) RED/YELLOW
B1) BLUE
C1) GREEN
D1) YELLOW
E1) WHITE
F1) ORANGE
G1) BLACK
H1) BROWN
I1) VIOLET
J1) RED
K1) GREY
L1) TAN
M1) PINK
N1) RED/GREEN
O1) RED/BLACK
P1, Q1, R1) N.C.
A) STOP/START
B) CW/CCW
C) OUTPUT 0-20mA; 4-20mA
D) INPUT 0-20mA; 4-20mA
E) INPUT 0-10V
F) OUTPUT 0-10V
G) TACH OUTPUT
H) PRIME
I) MOTOR RUNNING N.O. CONTACT
J) MOTOR RUNNING N.C. CONTACT
NOTE: Colors are those of Remote Cable, Cat. number 77300-32.

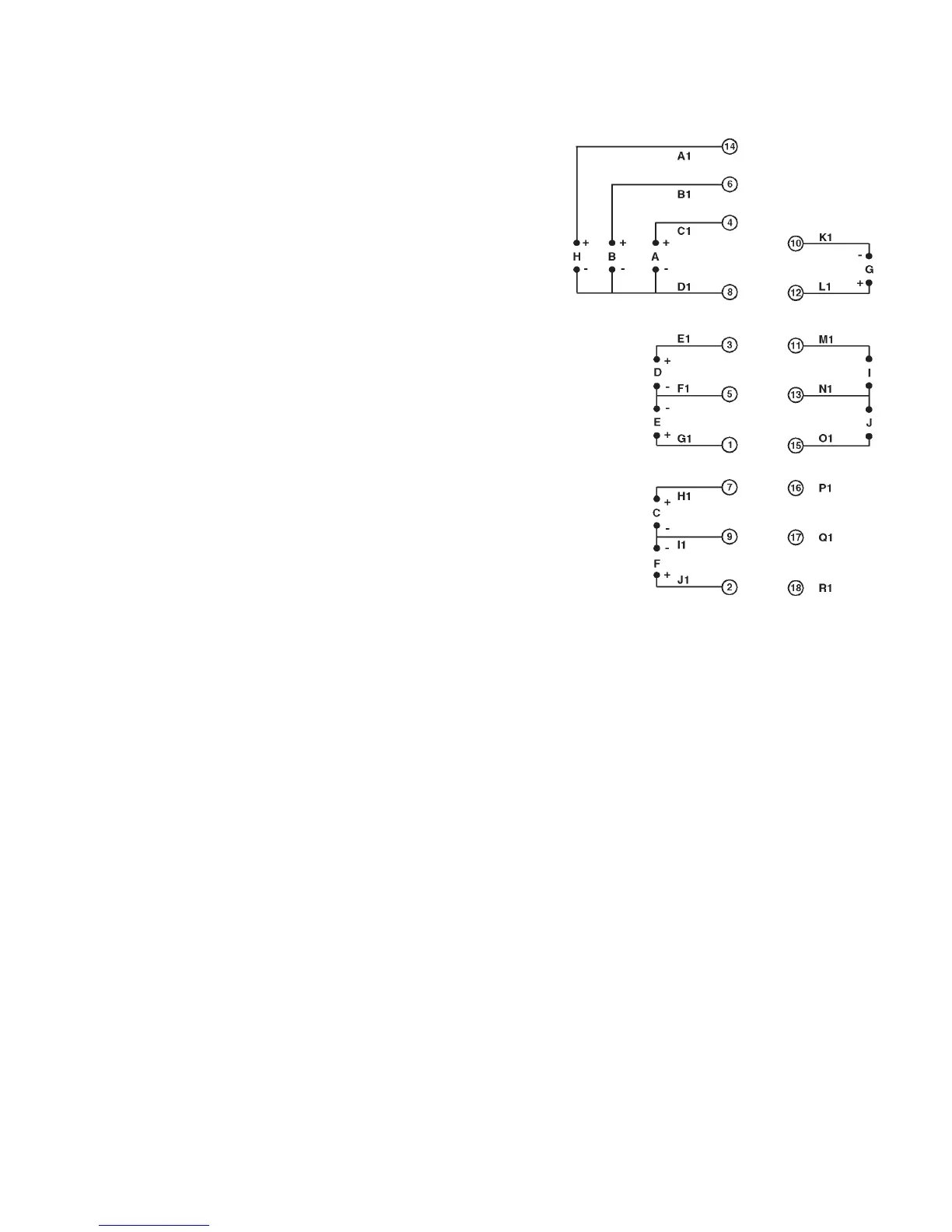

Figure 3-4. Remote Control Wiring Schematic
