Tools required:
56 C frame mounting, 5/16 inch Hex key.
ISO-71 frame mounting, 10 mm wrench.
To install replacement motor refer to Figure 4-3 and follow these steps:
1. Apply anti-seize compound to shaft and key. Slide motor forward to
engage the male motor coupling with the female gear head coupling.
Rotate pump rotor if necessary to align the couplings.
2. Using the 5/16 inch hex key, bolt the motor to the gear head adapter
by inserting the four bolts through the gear head adapter into the
motor. Torque bolts from 17 to 19 foot-pounds.

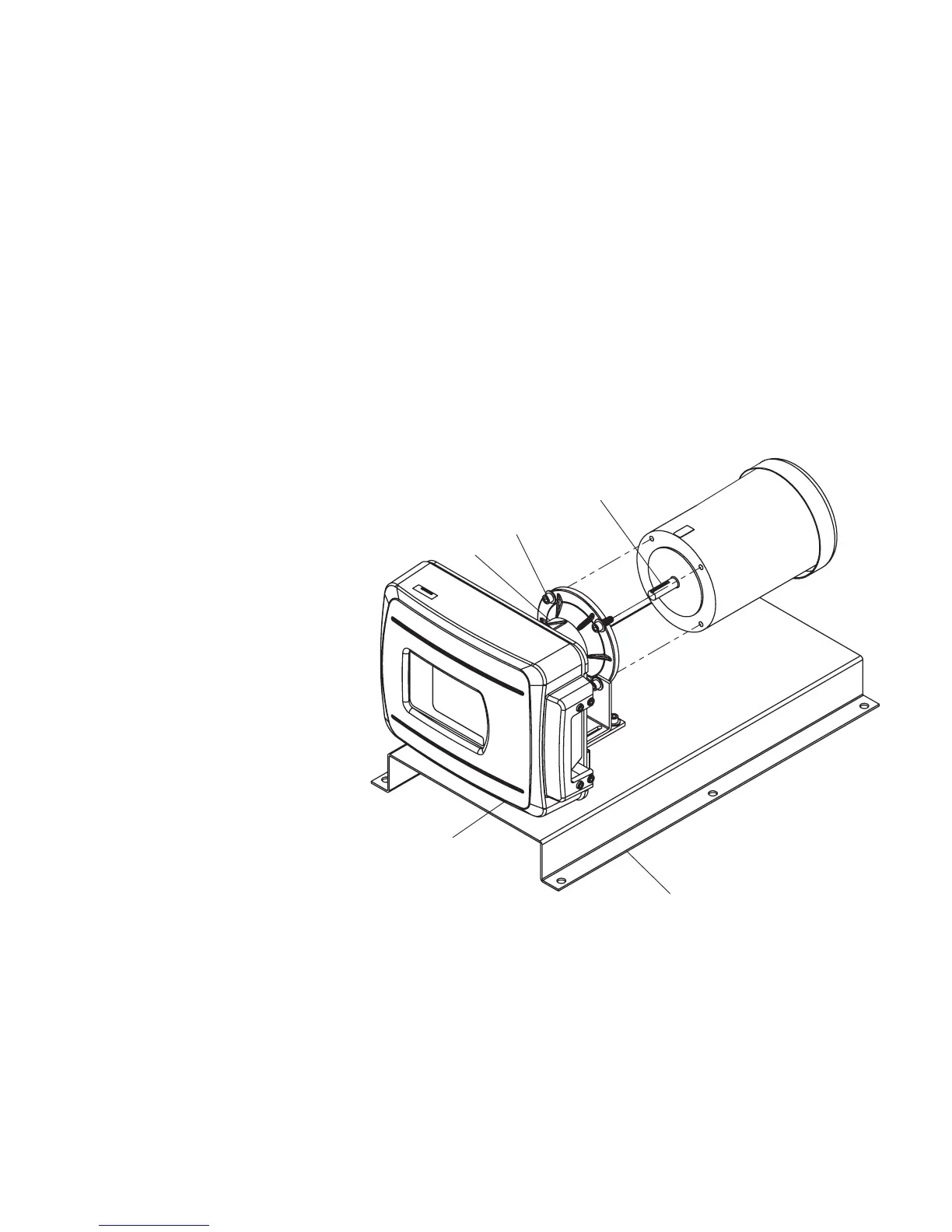

A) Gear Head B) Bolt C) Shaft
D) Base E) Door Assembly
Figure 4-3. Motor Mounting
B/T
®
RAPID-LOAD
®
Peristaltic Pumps and Drive Operating Manual 4-3Cole-Parmer
Section 4
Maintenance and Troubleshooting
MOTOR
REPLACEMENT
A
B
C
D
E
