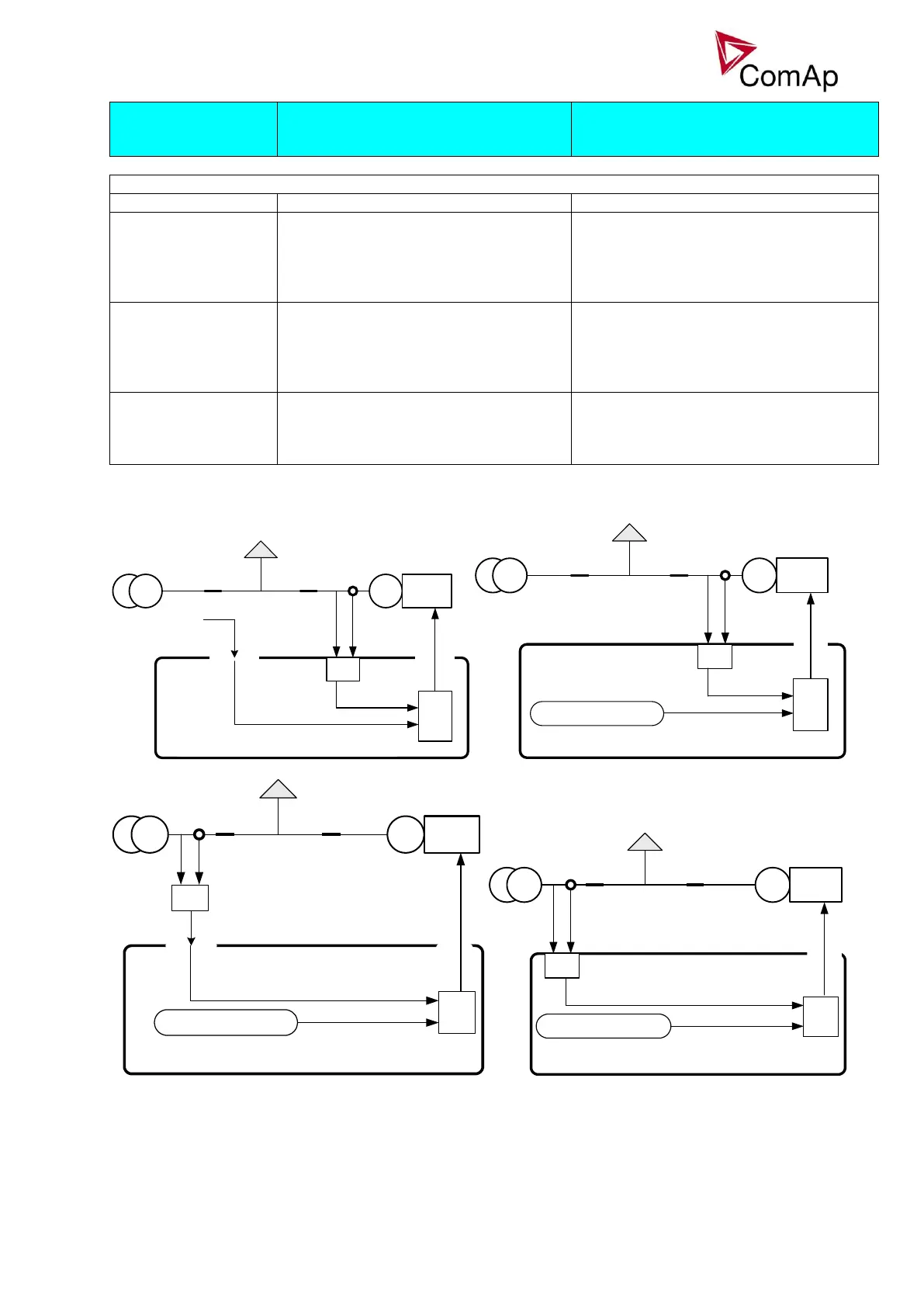

IGS-NT Combi, SW Version 3.0, ©ComAp – May 2013
IGS-NT-Combi-3.0 Reference Guide.PDF
17
T BY PWR
Gen-set power is controlled to keep the
required temperature, that is measured
via an analog input.
ProcCtrlSingle: TempByPwr Treq,
TempByPwr gain, TempByPwr int,
Analog input: LdCtrl:TByPwr
Another modes of active power control
Mode
Function
Related Setpoints – LBI – LBO - LAI
Export limit
Limits export to the mains in the
baseload mode. If the function is
enabled, the gen-set power is limited so
that mains import is always higher or
equal to the setpoint Import Load.
ProcCtrlSingle: Export limit = ENABLE,
Import load
Warming
The controller limits gen-set power for
requested time or until the water
temperature reach the requested value.
After warming the gen-set goes to the
requested (e.g. Baseload) power.
ProcCtrlSingle: Warming load;
Warming temp; Max warm time
Peak shaving
Automatic gen-set start/stop based on
object (load) consumption. Can be
based on measured kW or kVA.
ProcCtrlSingle: PeakLevelStart;
PeakLevelStop; PeakAutS/S del, Peak
kVA Start, Peak kVA Stop, PeakKVAS/S
del, LBO: PeakShaveAct
Requested power
Actual power
Vgen
Igen
SpeedGoverrnor
output
Speed
governor
ProcessControl: Load ctrl PtM = ANEXT BASELOAD
LOAD
GCBMCB
Controller
LdCtrl:AnExtBld
Analog input:
Requested power
Actual power
ProcessControl: Baseload
Vgen
Igen
SpeedGoverrnor
output
Speed
governor
ProcessControl: Load ctrl PtM = BASELOAD
LOAD
GCBMCB
Controller
SpeedGoverrnor
output
Speed
governor
LOAD
GCBMCB
Controller
LdCtrl:I/E-Pm
Analog input:
Vmains
Imns 3
LoadCtrlPtm = IM / EX
I / E- Pm meas =
ANALOG INPUT
ProcessControl :
ProcessControl :
ProcessControl :
IM/ EX
Requested I/E power
Actual I/E power
SpeedGoverrnor
output
Speed
governor
LoadCtrlPtm = IM / EX
LOAD
GCBMCB
Controller
Vmains
Imains ph3
ProcessControl :
IM/EX
ProcessControl :
I/E - Pm meas = IM3 CT INPUT
ProcessControl :
Requested I/
E power
Actual I/ E power
