Controller configuration and monitoring
IGS-NT istallation pack contains separate PC software tools: GenConfig (GC) and InteliMonitor (IM).
GC and IM are based on Windows 95/98/NT/ME/2000/XP or higher platform and require approximately 30
Mbyte of hard disc free space.

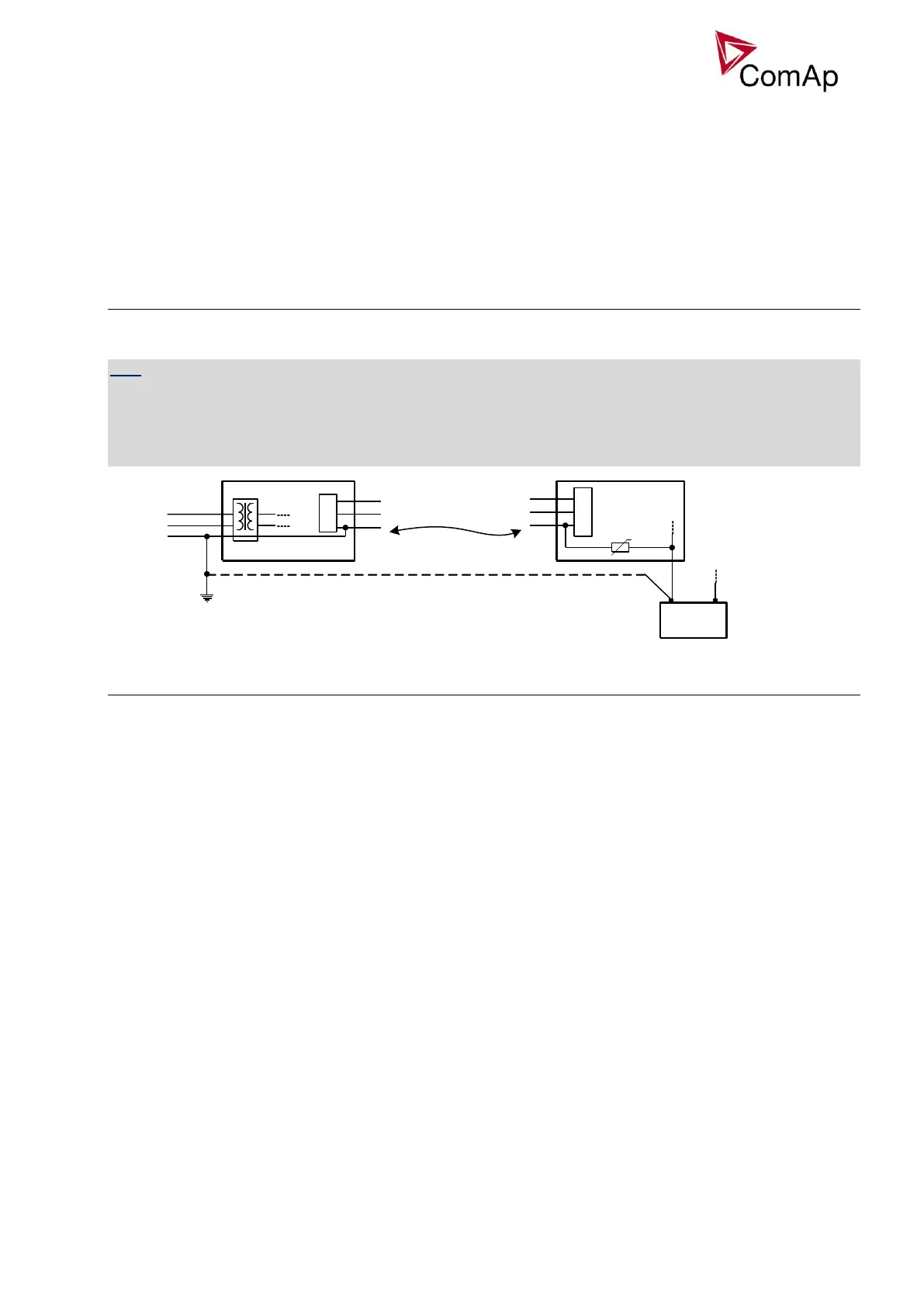

Direct connection to the PC
IGS-NT controller can be connected directly with PC via RS232 or USB interface. Use the crossed RS232 or
USB cable to connect PC with controller.
HINT
Make sure the grounding system on controller and PC – COM port (negative of the PC DC supply) are
identical – before the first direct connection. There must not be any voltage between these two points
otherwise the internal PTC protection activates and interrupts RS232 communication. In such case
disconnect RS232 line wait a minute for PTC recovery and try again. The simple solution is to assure, that
the PC supply 240/20V is ground free (GND terminal is not connected).
5 - GND
2 - RxD
3 - TxD
PC
5 - GND
2 - RxD
3 - TxD
RS232
RS232
230 VAC
0 VDC
CONTROLLER
+
-
Battery
Required the same
voltage potential
between GND‘s
RS 232
GenConfig functions
 Extension modules addressing
 All I/O function or protection configuration
 Setpoints adjusting
 Sensor characteristics modification
 History record modification
 Password level protection modification (password value must be changed in DriveMonitor)
 Controller firmware (mhx file) upgrade
 Controller application file Up/Down load
 Language translator enables
o Create Dictionary between two languages (Dictionary can be used repeatedly)
o Translate current text in Controller (in any language)
o Add new language (up to five)
Configuration steps
Following configuration steps are available in GenConfig software:
 Select Extension modules when more inputs and outputs are required
 Configure J1939 interface when Electronic engine is connected
 Configure Binary inputs as Protection or Function
 Configure Binary outputs
 Configure Analog inputs as Protection or Function
 Define user sensors
 Configure History record
 Configure password protection
 Add/Translate the language
