ComAp IG-NTC-BB Reference Guide

IGS-NT Combi, SW Version 3.0, ©ComAp – May 2013
IGS-NT-Combi-3.0 Reference Guide.PDF
38

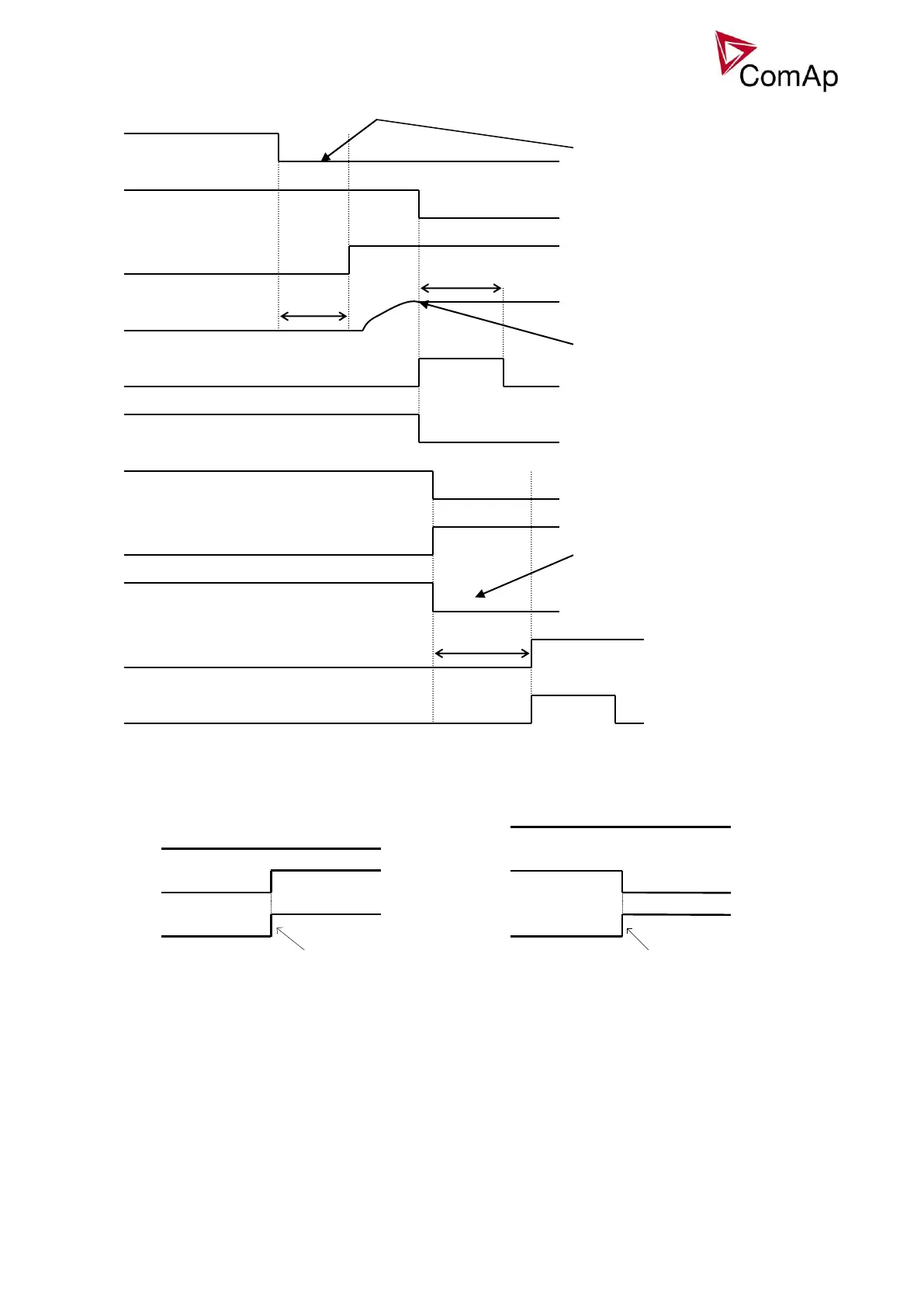

MCB opens on = GENRUN:
Other CB fail reasons:
 When the BO CB close/open is in steady state and CB feedback is changed, the CB fail is detected
immediately (no delay).
Alarm: GCB fail
BO GCB close/open
BI GCB feedback
Alarm detection:
immediatelly
active
closed
opened
Alarm: GCB fail
BI GCB feedback
BO GCB close/open
Alarm detection:
immediatelly
active
opened
closed
 When the BO CB close/open opens, there is 5 resp. 2 sec delay for the breaker to respond before a CB
fail is detected. In such case, if CB OFF coil is used for opening the CB and CB fail occurs during
opening the CB, the signal CB OFF coil is automatically extended until the breaker opening is detected
(evaluated as CB status).
 2 sec when the CB is used for synchronizing
 5 sec in other cases
BO: MCB UV coil
FwRet break
RPM / fg / Ug
EmergStart del
2s
BO: MCB OFF coil
BI: MCB fdb neg
BI: MCB fdb
BO: Mains OK
BO: MCB status
BO: Fuel solenoid
FwRet break dealy is between MCB
status deactivation and command for
GCB closing.
BO: MCB close/open
Generator voltage is within limits
BO: GCB close/open
BO: GCB ON coil
If mains returns in this moment,
starting sequence is interrupted
and MCB stays closed. It is valid
until the moment when generator
voltage is within limits.
