3 Wiring

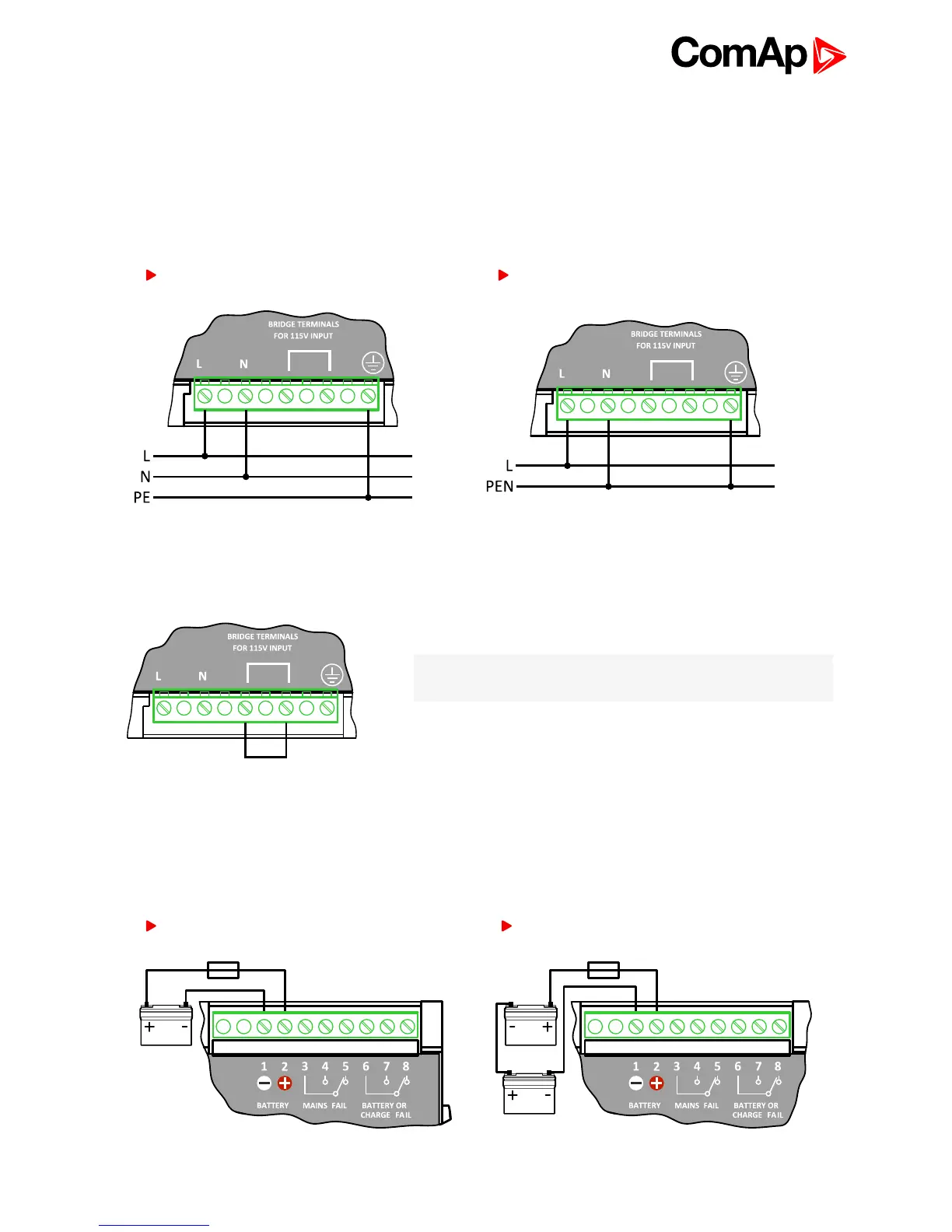

3.1 AC input wiring diagram
With respect to mains earthing system used, please choose proper AC input wiring.
for TN-S (L, N, PE) for TN-C (L, PEN)
115 V
AC
input voltage
When 115 V
AC
input voltage is used bridge corresponding terminals
on AC input terminal block (see left).
Note: Use appropriate wire cross-section. See Wires parameters
(page 8) for details.
3.2 Battery output wiring diagram
InteliCharger 240 24 support single 24 V output. It is possible to connect two 12V batteries in series.
Fuse position example is for installations where ´-´ battery pole is grounded.
for single 24 V battery connection for two 12 V batteries connection in series
