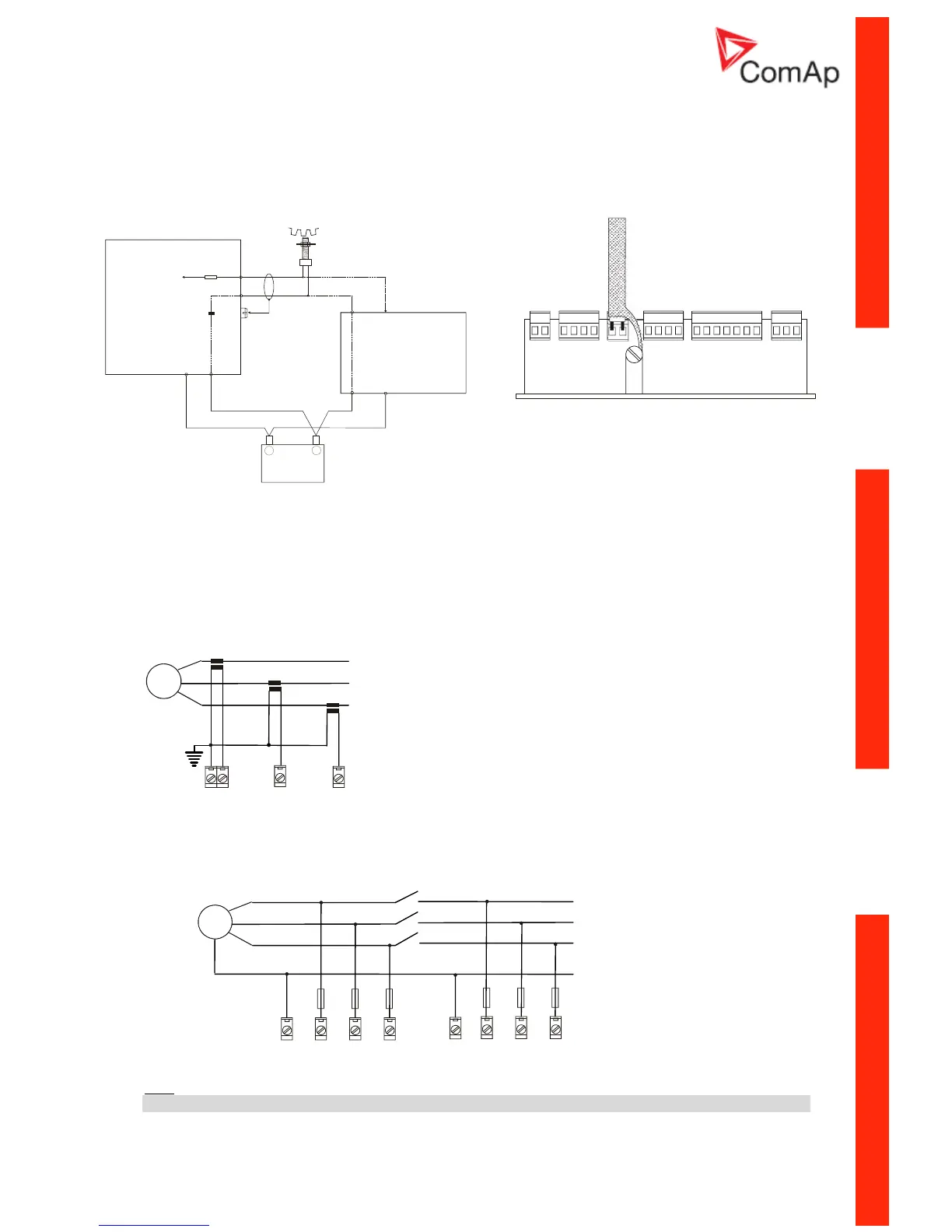

Magnetic pick-up
To ensure proper function:
Use a shielded cable
+
Battery
-
iL
GAC
Speed Control Unit
ESD 5500
MAGNETIC
PICK-UP
C
D
a
b
Signal
Signal
+
+
-
-
Power
Supply
Power
Supply
-
Current measurement
To ensure proper function
Use cables of 2,5mm
2
Use transformers to 5A
Connect CT according to following drawings
L1
L2
L3
N
G
COM L1l
K L
k l
L2l
K L
k l
L3l
K L
k l
Voltage measurement
G
GENERATOR MAINS
L3L2L1N
L1
L2
L3
N
L3L2L1N
Hint:
Switchboard lighting strikes protection according standard regulation is expected !!!
InteliLite – MRS10/11/15/16, SW version 2.2, ©ComAp – November 2004 13
