Connection of IL-NT analog inputs
AI
1
AI2
3 x RESISTIVE
SENSOR
AI3
COM
- POWER
Standard connection of three resistive sensors
to analog inputs.
2
x
470
COM
-
POWER
AI1
AI2
AI3
Mixed connection of InteliLite analog inputs:
AI1 binary input
AI2 three state input
AI3 analog resistive input
Hint:
Description of analog inputs with COM terminal and 4 pins relates to units with HW version 1.3. Older
HW versions do not have “COM” terminal and use only 3 pins AI1, AI2 and AI3.
Wiring

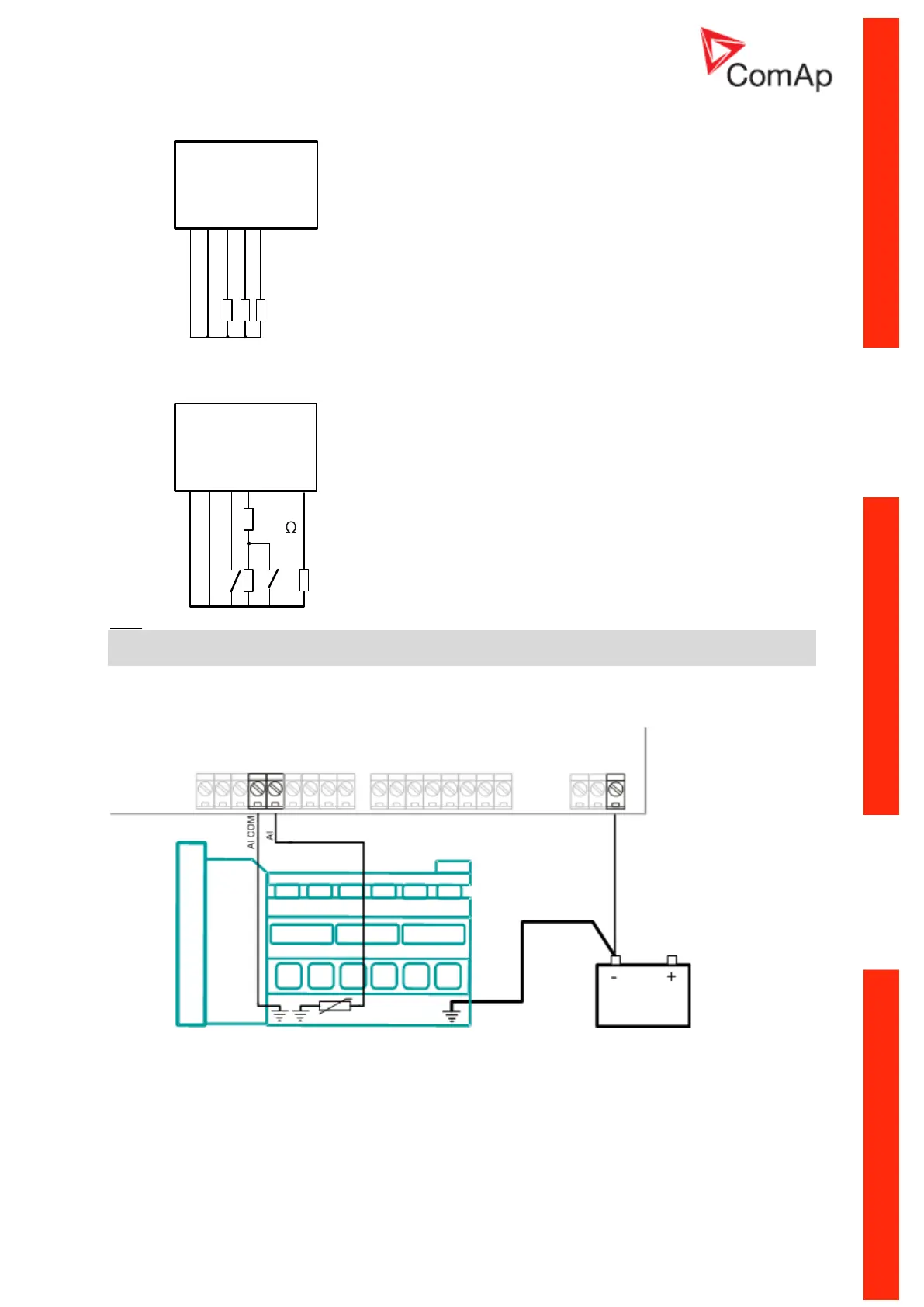

Wiring diagrams of analog inputs since IL-NT HW 1.3:
WIRING OF ANALOG INPUTS-GROUNDED SENSORS
