We recommend to use following protections:
- Phoenix Contact (http://www.phoenixcontact.com):
PT 5-HF-5DC-ST with PT2x2-BE (base element)
(or MT-RS485-TTL)
- Saltek (http://www.saltek.cz):
DM-006/2 R DJ
Recommended data cables: BELDEN (http://www.belden.com)
A) For shorter distances: 3105A Paired - EIA Industrial RS-485 PLTC/CM (1x2 conductors)
B) For longer distances: 3106A Paired - EIA Industrial RS-485 PLTC/CM (1x2+1 conductors)
C) In case of surge hazard: 3106A Paired - EIA Industrial RS-485 PLTC/CM (1x2+1 conductors)

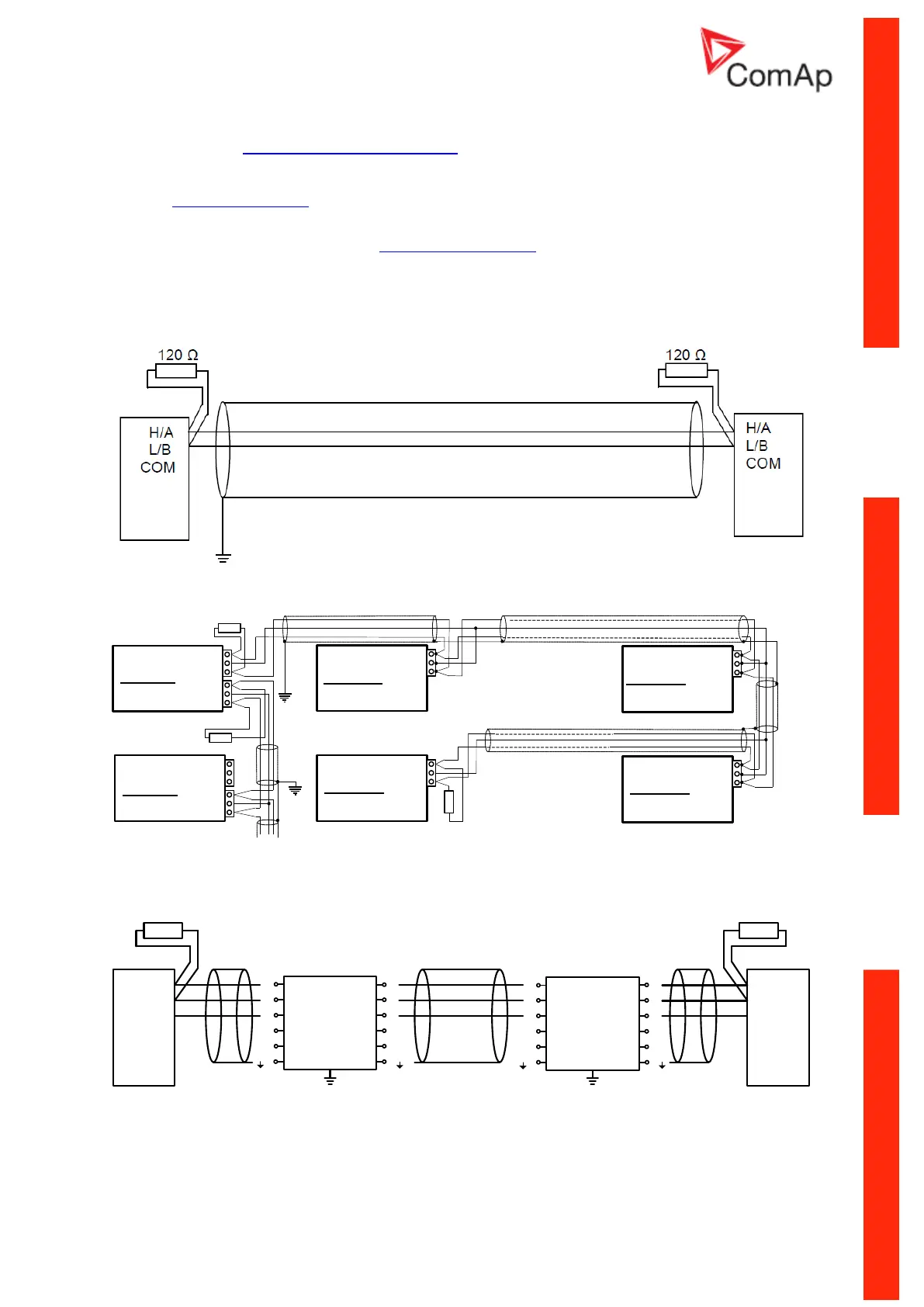

Picture 1 - shorter distances (all network components within one room)
Picture 2 - longer distances (connection between rooms within one building)
CAN1
H
COM
L
CAN2
120
1.iS-CU
Addr.: 1Addr.: 1
CAN1 CAN1
8.iS-AIN
Addr.: 8
7.iS-BIN
Addr.: in13
out7
CAN1 CAN1
1.iS-AIN
Addr.: 1
120
1.iS-BIN
Addr.: in1
out1
CAN1CAN2
2.iS-CU
120
H
COM
L
H
COM
L
H
COM
L
H
COM
L
H
COM
L
H
COM
L
H
COM
L
Picture 3 - surge hazard (connection out of building in case of storm etc.)
H/A
L/B
COM
120 Ω
PT5-HF-12DC-ST (CAN)
PT5HF-5DC-ST (RS485)
H/A
L/B
COM
120 Ω
OUT
IN
OUT
1
5
7
9
3
11
2
6
8
12
10
4
IN
1
5
7
9
3
11
2
6
8
12
10
4
