ComAp intelilite nt amf20 User Manual

InteliLite
NT
– AMF20/25, SW version 2.2, ©ComAp – September 2014 80
IL-NT-AMF-2.2-Reference Guide.pdf

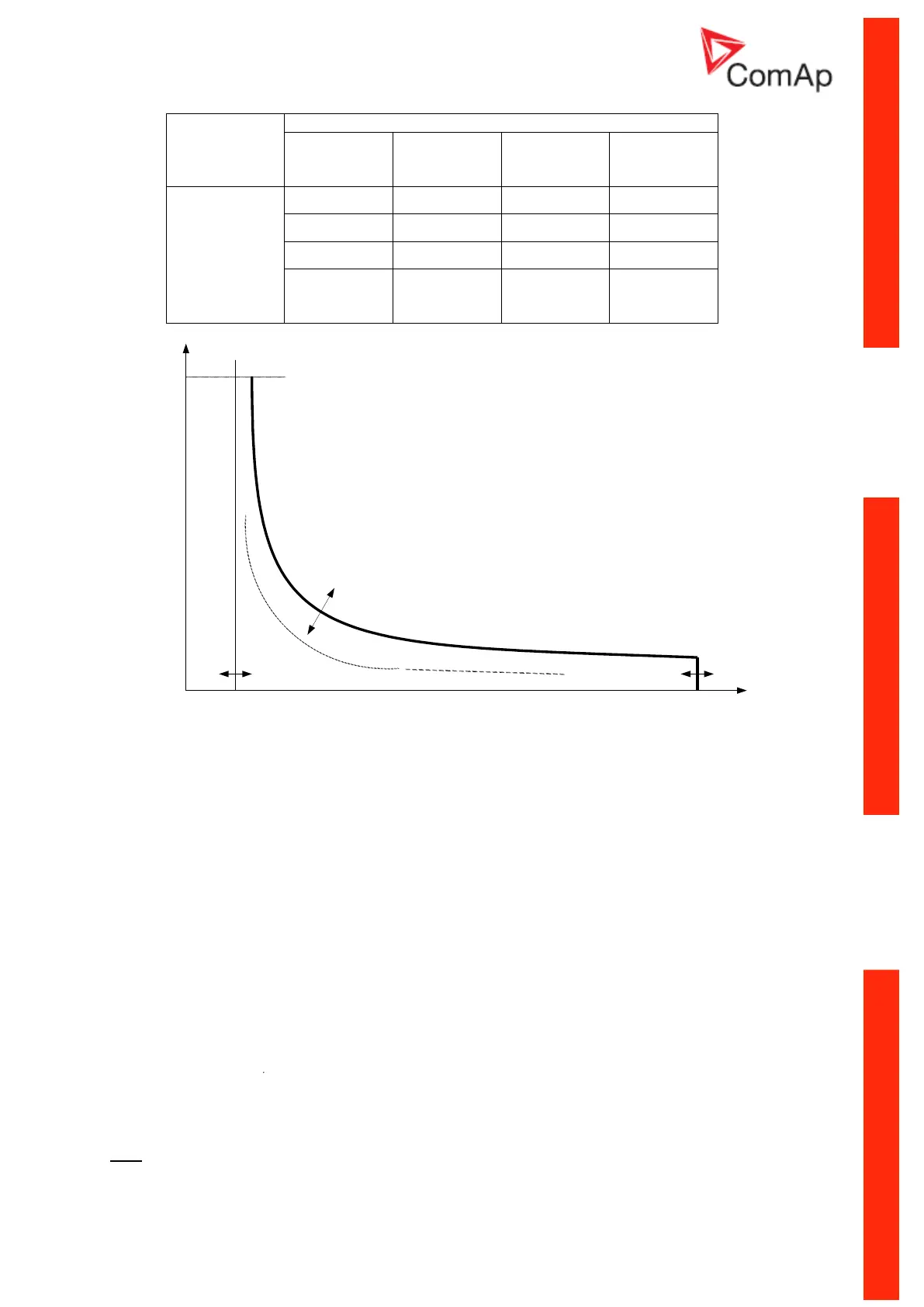

Igen
Nominal Current
Short Crct Sd
Amps IDMT Del
Maximal Reaction time
Reaction time
Amps Unbal BOC [%]
Threshold for generator current asymmetry (unbalance). Protection is BOC (Breaker Open and genset
Cooldown).
Step: 1% of Nominal current
Range: 1 – 200% of Nominal current
Amps Unbal Del [s]
Delay for generator current unbalance
Step: 0.1 s
Range: 0.0 – 600.0 s
Gen >V Sd [%]
Threshold for generator overvoltage. All three phases are checked. Maximum out of three is used.
Step: 1% of Nominal voltage
Range: 0(Gen <V BOC) – 200%
Gen <V BOC [%]
Threshold for generator undervoltage. All three phases are checked. Minimum out of three is used.
Step: 1% of Nominal voltage
Range: 0% – 200 (Gen >V Sd)%
Hint:
Overcurrent
200 % =
IDMT Curr
Del
≤ 100 %
101 %
110 %
Reaction time
0,2 s
No action
20 s
2 s
2 s
No action
200 s
20 s
20 s
No action
2000 s
200 s
40 s
No action
No action
(Reaction
time ≥ 1 hour)
400 s
