Comark RF500A - Lumberg Connector Pin Assignments

46
Pinout and Wiring

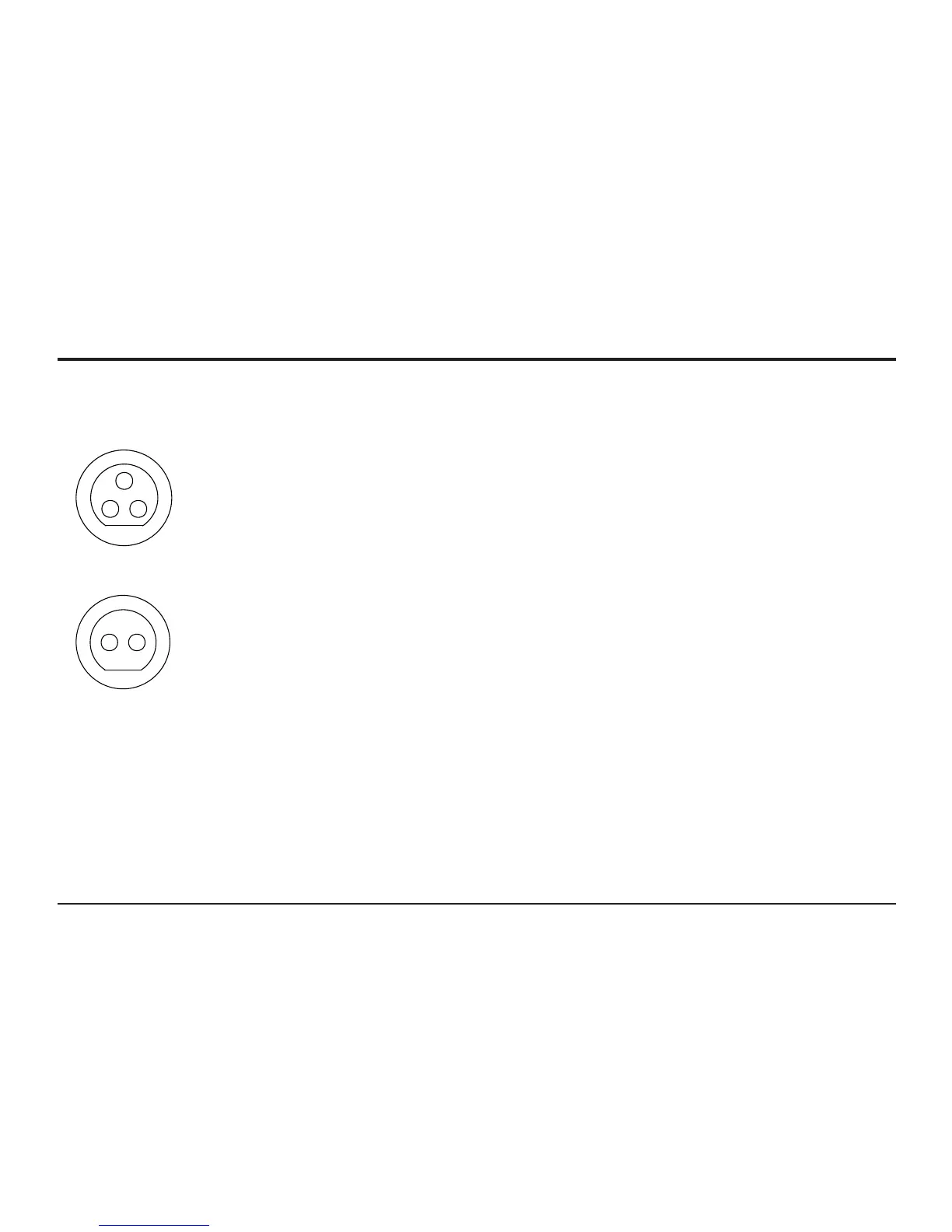

These connectors are drawn from the point of view of looking into the socket from outside the transmitter
Door Connector
A Door Positive
B RF525 Activator Positive
C Common Ground for Door and RF525
Power Connector
A Positive +5 VDC
B Negative Ground
A
C
B
A
B
