11. Remove the cover (5) from the mounting
plate (6) as follows (See Figure 8):
a. Using the 5.5 mm Alan Key remove the
four Allan Capped screws (1 - 4).
b. Remove the housing (5) from the
mounting plate (6).

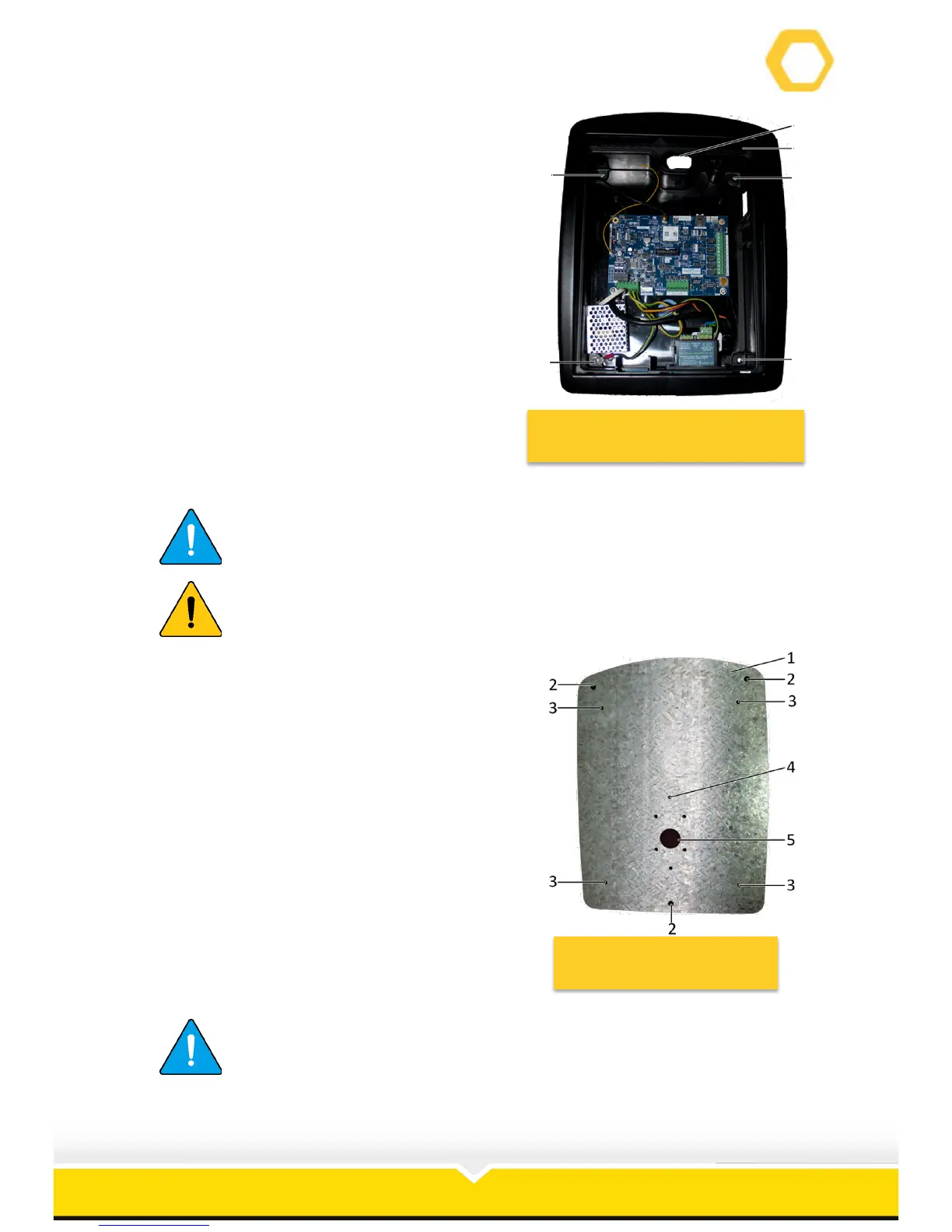

Figure 8: Remove Cover from
Mounting Plate
Screw no (3) also earths the PCB (See Figure 8).
Place the housing on a clean, dry surface to prevent water and dust
damage.
12. The mounting plate (1) has the following
holes (See Figure 9):
a. Wall mounting holes (2).
b. Cover mounting holes (3).
c. Gooseneck mounting holes (4).
d. Wiring hole (5).
13. Align the goose neck mounting holes with the
corresponding holes on the gooseneck pillar.
14. Ensure that the curved end of the mounting
plate faces up.
15. Insert six M8 stainless steel bolts and secure
the intercom mounting plate to the
gooseneck pillar.
16. Feed the 220V supply through the centre
hole (5).
The screws that attach the mounting plate to the gooseneck are not
supplied. It is suggested that 6 M8 stainless steel counter sunk bolts
and nylock nuts are used to secure that mounting plate.
