5.7.9 MISCELLANEOUS
Isolation test: turn on isolation switch and the equipment will test TX/RX antenna isolation for about 30
seconds, after that, the switch will turn off automatically.

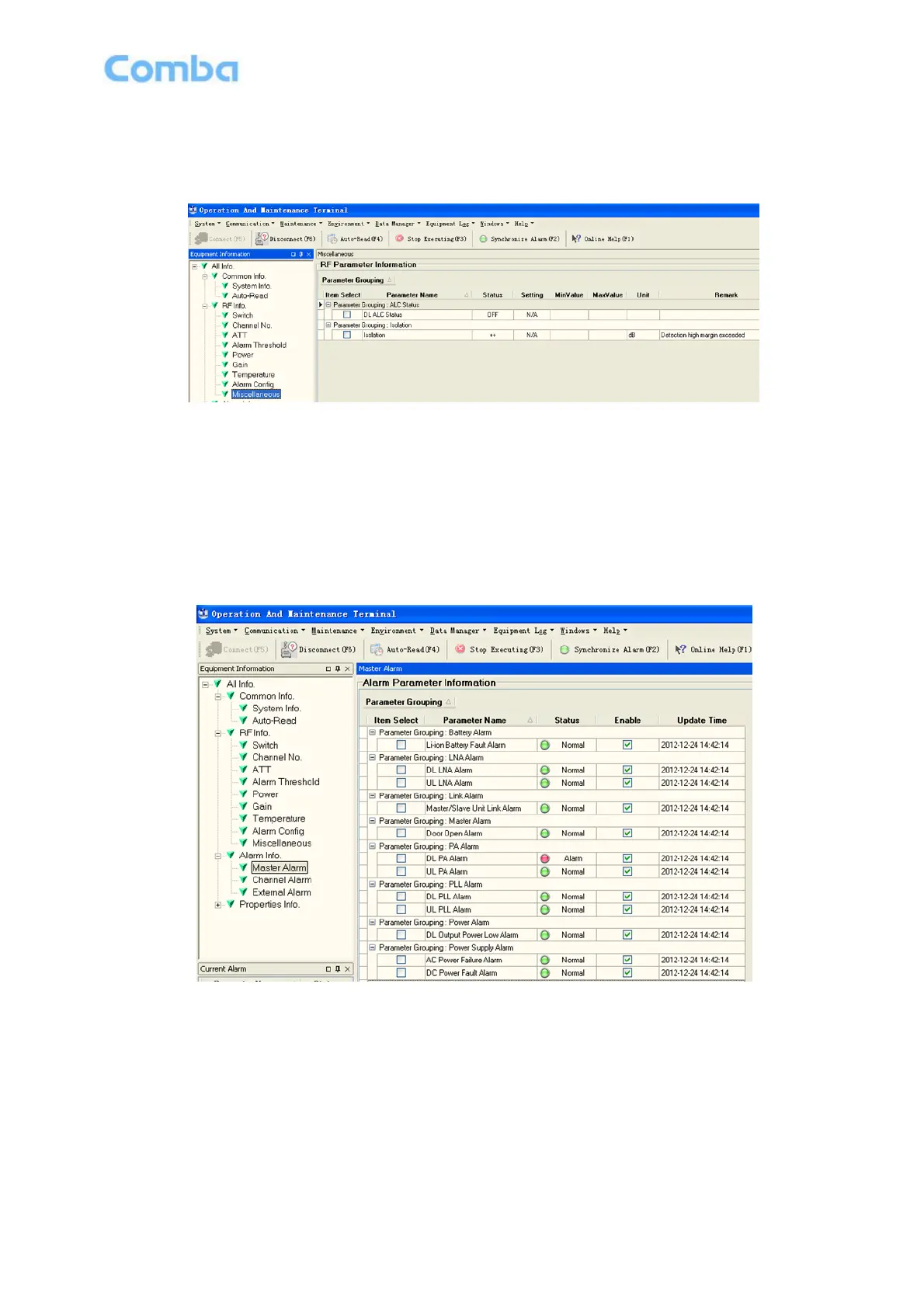

Figure 30: Miscellaneous
5.8 ALARM INFO.
Alarm information operation is to select alarm parameters for monitoring. Alarm parameters include Master
Alarm, Channel Alarm and External Alarm.
Click any tree node in [Alarm Info] group, [Alarm Parameter Information] window will appear in the right side.
The picture below shows the master alarm information.
Figure 31: Master Alarm
